Inter-row cultivator BINEUSE from QUIVOGNE, Dnipropetrovsk region.

Inter-row cultivator BINEUSE from QUIVOGNE!!!

Scope:
- Inter-row cultivators perform various tasks in processing row crops
- Distances between rows, especially in the initial period of the development of a cultivated plant, are not protected from the influence of precipitation or sunlight.
- As a result of precipitation, crusts or flooding of the soil are often formed, and direct sunlight leads to the loss of soil moisture.
- Light version, well suited for loosening the soil between the rows for row crops
- The heavy version of the cultivator is suitable for loosening the soil between the rows for row crops
- The possibility of hanging an additional system for applying fertilizers.

Technical characteristics:
Working width from 3.3 m. up to 9.6 m.
Number of rows from 5 to 12(//tractor-service.com)
Height 700 mm (double frame in heavy version)
Frame profile 120*120mm./ 160/160mm.

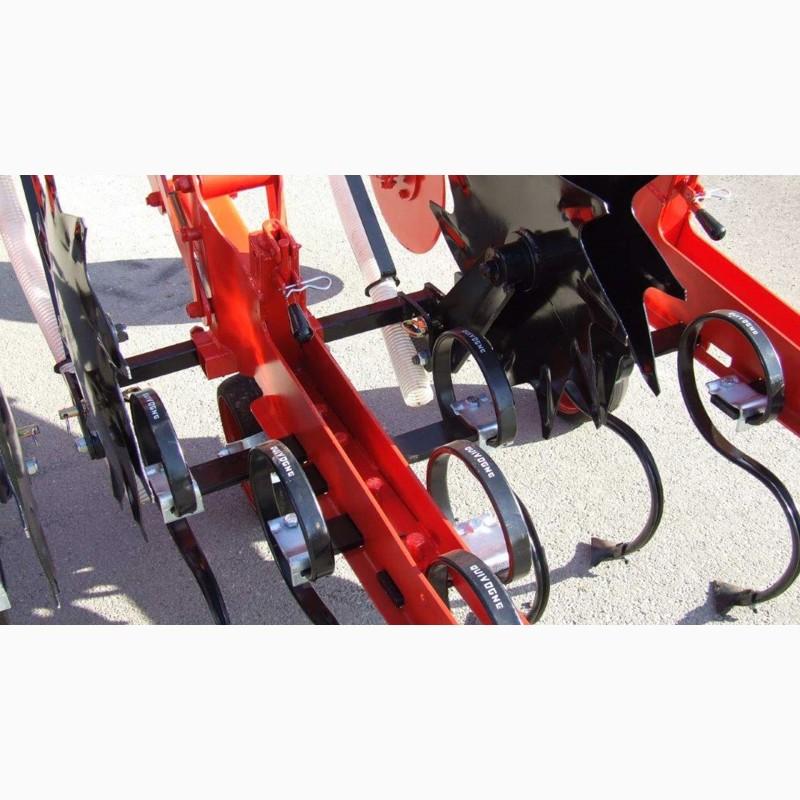

Spring feet 32 x 10 mm
Distance between rows 45 - 60 cm, 3 paws per row (light version)
Distance between rows 60 - 80 cm, 5 paws per row (light and heavy version)
2 toothed discs per row
Automatic control using spring-loaded guide disks.
Supportingwheels withrubber tires, smoothly adjusted
Weight from 577kg to 2t.
The required power of the tractor is from 40 hp. up to 140 hp.
