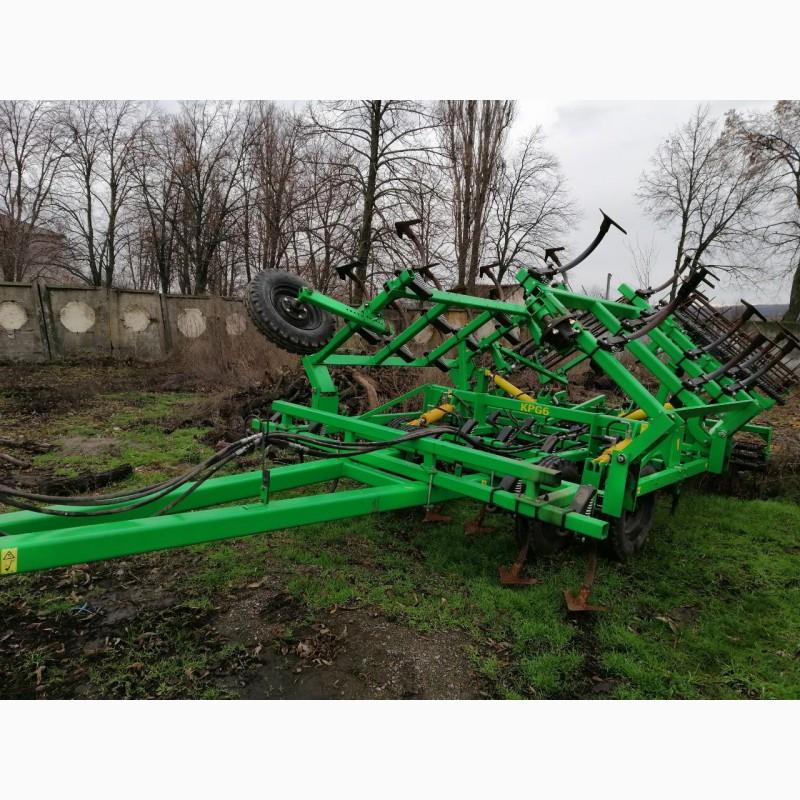

KPG-6 pre-sowing cultivator, Kharkiv region.

CultivatorKPG-6 - high-tech device trailed type for tillage, equipped with combs androllers. The unit is used for continuous soil preparation for sowing. It is also used for steam protection.

Complete set and functionality of the cultivator KPG-6

The manufacturer offers customers a choice of arrow type paws from 180 to 330 mm. In accordance with the size of this functional element, the number of working bodies placed in rows is adjusted. Such a structural feature of the unit makes it less vulnerable. It does not clog even when passing through areas abundantly strewn with rough-stemmed harvest residues.

A spring comb with the possibility of adjusting the attack of the teeth is another winning position of the device. Its main task is careful leveling of the field. Next, the fertile soil layer is leveled with a roller. Options can be alternated after dismantling one or another element.

To correct the processing depth, the hydraulic cylinder rod travel limiters are provided in the design. Their adjustment is carried out with the help of special thrust rings.

Operating conditions

For the correct operation of the unit, it is important to ensure a capacity of at least 20-27 liters. with. per meter width. The following factors can influence the power required for the operation of the unit:

soil type;
humidity level;
the shape of the cultivator's paw;(//tractor-service.com)
presence of harvest residues and their quantity;
the specified depth of soil treatment;
the speed of the device during the working process, etc.
The manufacturer recommends using a tractor belonging to traction class 2.0 or 3.0 for aggregation.

Characteristics:

Width of capture, (m) 6
Paw grip width, (mm) 260-330
Processing depth (cm) 4-14
Number of working bodies, (pieces) 26
Productivity, (ha/h) 6-10
Transport width, (m) 3
Transport height, (m) 2.8
Mass of the unit, (kg) 2700
Tractor traction class 2 — 3

Состояние - BU - хорошее
