 /  Publications/Топ-5 б/в тракторів для фермера

top 5 used tractors for the farmer

= Effective activity For a long time they will provide high productivity, reliability and quality of work. || 85

Спробуємо охарактеризувати Топ-5 бувших у використанні тракторів для фермерських господарств, які представлені на українському ринку.

John Deere

На вторинному ринку України одними з найпопулярніших є колісні трактори John Deere серії 6D. За статистикою, на полях світу працює приблизно 370 тис. цих тракторів. Українські фермери віддають перевагу тракторам серії 6D завдяки гармонійному поєднанню високої надійності, потужності двигуна, економічності, максимальному комфорту та універсальності.

Трактори серії 6D існують у двох моделях: 6115D потужністю двигуна 118 к.с., та 6130D потужністю 130 к.с. На обох моделях тракторів встановлено модернізовані 4-циліндрові дизельні двигуни з робочим об’ємом 4,5 л PowerTech з системою впорскування палива Common Rail, турбінами зі змінною геометрією крильчатки, системою проміжного охолодження повітря та номінальною частотою обертів двигуна 2100 об/хв.

Трактор John Deere 6115D (https://www.deere.com/)

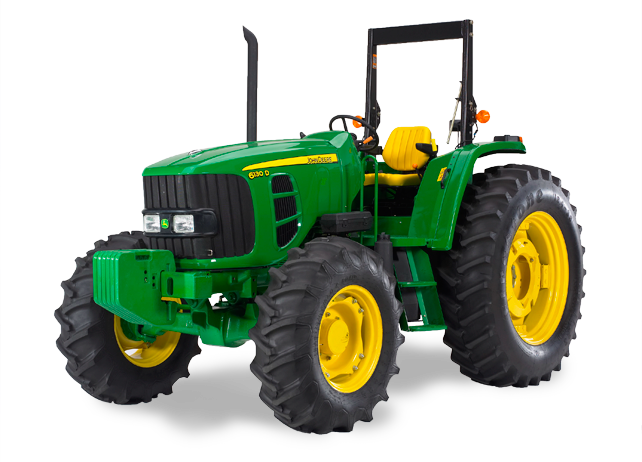

Трактор John Deere 6130D (https://www.deere.com/)

Електрогідравлічна трансмісія Power Reverser має 9 передач переднього та 9 заднього ходу. Якщо необхідно виконувати такі роботи, як скошування трав чи пресування соломи, то для таких операцій краще підходить трансмісія Top Shaft з синхронізованим верхнім валом, 9 передачами переднього та 3 передачами заднього ходу з «сухим» зчепленням. У будь-якому випадку, завдяки вдало підібраним оптимальним передаточним відношенням трансмісії, завжди можна вибрати рекомендовану швидкість.

На тракторах серії 6D передбачається вибір серед двох приводів: механічний передній ведучий міст (MFWD) для отримання максимального тягового зусилля та передачі потужності, або регульований привід з однією ведучою віссю (2WD), який є більш економічним, і застосовується, як правило, під час виконання легких робіт (наприклад, транспортних).

Гідравлічна система тракторів серії 6D оснащена гідравлічним насосом постійної потоку, який має продуктивність 67 л/хв. та створює тиск 19,5 МПа при частоті обертів двигуна 2100 об/хв. Для точних операцій з застосуванням гідромотора, передбачена конфігурація гідравлічної системи з трьома клапанами.

for aggregated machines with active working bodies, the 6D series tractors provide an independent two -speed shaft of power selection (GDP), which has a frequency of 540 or 1000 rpm. When switching to a lower or higher gear, or even during a tractor stop, GDP will always maintain the set frequency. The presence of such GDP makes it possible to do virtually any work, including the use of tools that require high power in a wide range.

tractors of series 6D are equipped with a reliable three-point hinged system, the load capacity of which is 3150 kg. Farmers often prefer

Fendt

На вторинному ринку тракторів малої потужності українські фермери досить часто віддають перевагу tractors of Fendt 200 Vario with engine capacity from 77 to 111 hp. The characteristic features of these tractors are high reliability and fuel economy. Tractors are made in five modifications, the difference between which is mainly in power. || 123

Трактор Fendt 200 Vario (https://www.fendt.com/)

Трактори укомплектовані 3-циліндровим двигуном AGCO Power з робочим об’ємом 3,3 л. Двигуни обладнані системою зовнішньої рециркуляції відпрацьованих газів AGRex та дизельним каталізатором окислення DOC. Номінальна частота колінчастого вала двигуна становить 2100 об/хв, а за частоти 1750 об/хв двигуни розвивають максимальний крутний момент, який може становити від 306 до 463 Н*м. Запас крутного момента сягає 37%. Питома витрата палива для тракторів Fendt 200 Vario становить 288 г/кВт*год. Трактори мають паливний бак об’ємом 125 л.

Entradular Vario gearbox guarantees comfort while driving and saving fuel. The movement of the tractor forward in the speed range from a minimum 0.02 km/h to a maximum 40 km/h occurs without switching the gear, which allows you to accurately adjust the speed. The rate for back speeds is from 0.02 km/h to 12.5 km/h. The transmission allows even on steep slopes to completely stop the car, fix it with the function of active control of the stop, and then start uniform motion again.

= The basis of the hydraulic equipment of the Fendt 200 Vario tractors is the Load-Sensing pump with a capacity of up to 104 l/min and the pressure in the hydraulic system of 200 bar. This makes it possible to use the frontal loader at low engine speeds. The maximum capacity of the rear hinge is 4204 kg, and the front - 2540 kg. fuel consumption.

Для агрегатування робочих машин з активними робочими органами передбачено задній ВВП, який має робочі режими 540, 540Е та 1000. Фронтальний ВВП 540 E досягає частоти 540 об/хв навіть на знижених обертах двигуна, і завдяки цьому скорочує витрату палива.

all the main features of the Fendt 200 Vario tractor can be controlled by one hand. Joystick Variostick, which is conveniently located on the right console, provides control of the tractor in full accordance with the work performed. || 136

DEUTZ-FAHR

The large segment of the secondary market of small tractors for farmers belongs to the tractors of Agrofarm G 115 Production= deutz-Fahr. Позитивними сторонами цих машин є висока продуктивність та універсальність при проведенні робіт, висока маневровість та відмінні характеристики на транспортних операціях.

Трактори Agrofarm G 115 зустрічаються у двох серіях – LS та GS. Основна відмінність між ними полягає у тому, що трактори серії LS оснащені синхронізованим механічним реверсом, а серії GS мають електрогідравлічний реверс.

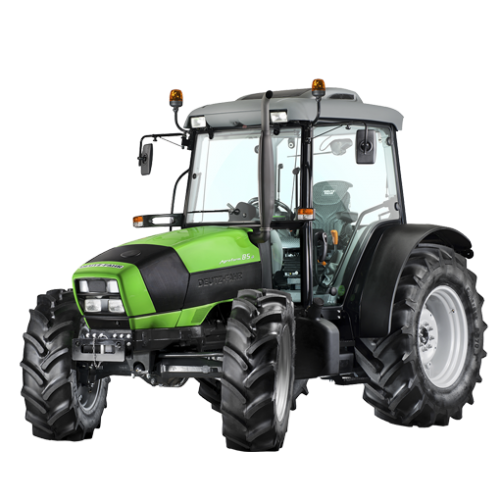

Трактор DEUTZ-FAHR Agrofarm G 115 (https://www.deutz-fahr.com/)

Трактори Agrofarm G 115 оснащені чотирьохциліндровими двигунами серії SDF 1000 з інтеркулером, робочимй об’єм яких дорівнює 4000 см³. Потужність двигуна за номінальних обертів 2300 об/хв становить 115 к.с. У діапазоні частоти колінчастого вала 1400 – 1800 об/хв двигуни розвивають максимальний крутний момент 396 Н*м. Розмір паливного бака – 150 л.

on the tractors of Agrofarm G 115 installed a transmission of the modular structure. A multi -disk clutch in the olive bath has a hydraulic actuator and guarantees a complete transmission of power. The transmissions offered in LS variants consist of a fully synchronized four -speed three -band gearbox with a synchronized mechanical reverse, which generally maintains 12 front and up to 30 km/h.

GS tractors use a five -speed three -diagnosed box that provides 15 front and reverse speeds at a maximum speed of 40 km/time. GS tractors models are also equipped with Sense Clutch electro -hydraulic reverse. The front hinged device is included with the front GDP with a standard rotation speed of 1000 rpm. At the same time, it is possible to use synchronized GDP with an independent output shaft.

На тракторах Agrofarm G 115 передбачено чотири стандартних швидкісних режими ВВП – 540, 540 ЕСО, 1000 та 1000 ЕСО. Передній навісний пристрій постачається у комплекті з переднім ВВП зі стандартною частотою обертання 1000 об/хв. У той же час є можливість використання синхронізованого ВВП з незалежним вихідним валом.

hydraulic system of tractors Agrofarm G 115 is equipped with a 56 l/min pump. Another separate pump is intended for the steering system and provides extremely uniform and light steering even at low engine speeds.

The maximum load capacity of the rear lifting device is 4800 kg. To perform operations on row tillage of crops of tractors is 500 mm.

Massey Ferguson

in the secondary market= tractors of Massey Ferguson low capacity Farmers also appreciate its high clearance, excellent stability, powerful engine and strong design. досиить часто зустрічаються трактори MF 5450, які завдяки простоті у експлуатації та обслуговуванню підходять для роботи у фермерських господарствах. Також фермери цінують його високий кліренс, відмінну стійкість, потужний двигун та міцну конструкцію.

= tractor Massey Ferguson MF 5450 (http://www.masseyferguson.ru/mf5400.aspx#?)| 1002==. Perkins models 1104D-44Ta with a working volume of 4.4 liters, which at the nominal speed of the crankshaft 2000 rpm develops a capacity of 107 hp. The maximum torque of the engine is 416 N*m, and the tractor receives it at the engine frequencies of 1400 rpm. The volume of the swimming tank is 130 liters.

На тракторах MF 5450 встановлені 4-циліндрові дизельні двигуни Perkins моделі 1104D-44TA робочим об’ємом 4,4 л, які за номінальних обертів колінчастого вала 2000 об/хв розвивають потужність 107 к.с. Максимальний крутний момент двигуна дорівнює 416 Н*м, і трактор отримує його за частоти двигуна 1400 об/хв. Об’єм пливного бака – 130 л.

Ergonomic robotic transmission Dyna-4 has four degrees of power switching in four gears, ie 16 speeds of the front and 16 reverse. They are switched without the use of the clutch and without breaking the power flow. The transmission numbers are selected in such a way that it is easy for the operator to choose the desired transmission and gradually increase the speed of movement. || 176

Трансмісія Dyna-4 та коробка передач із джойстиком управління і функцією автоматичного керування Speedmatching забезпечує максимальну швидкість руху 40 км/год.

= Hallowex of the MF 5450 tractor is able to work for a long time under high loads with aggregated machines. The standard capacity of 5000 kg allows MF 5450 to work with a variety of attachments. The front canopy capacity is 2500 kg.

Open Center hydraulic system includes two pumping units (32.7 and 57 l/min), which feed the working fluid to mechanical gold valves of one- or bilateral action, or on their combination. The standard configuration provides two pairs of hydraulic outputs.

Selecting GDP speeds in MF 5450 is completely electro -hydraulic. The speed of GDP can be controlled from the tractor cabin and from the outside. At the speed of the crankshaft of the engine 1992 rpm. GDP has a speed of 540 or 1000 rpm, and at the engine speed of 1550 rpm. The capacity selection shaft operates in 540 ESO.

Zetor

The share of the Ukrainian market for farms is owned by the Proxima Plus tractors produced by Zetor (Czech Republic). The characteristic features of these tractors are the simplicity of construction and relatively low cost, so they are in demand from farmers. || 190

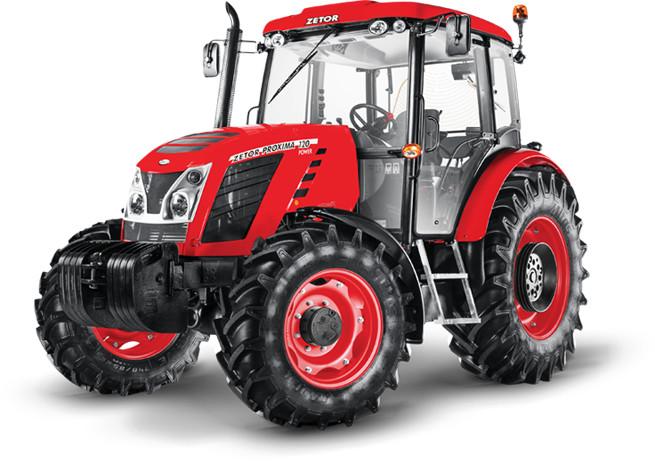

Трактор Zetor Proxima (https://ru.zetor.com/non-eu#proxima)

Трактори Zetor Proxima Plus оснащуються 4-циліндровими дизельними двигунами Zetor об’ємом 4,15 літра з турбонагнітанням, номінальна потужність яких сягає 107 к.с. за частоти обертів колінчастого вала 2200 об/хв. Максимальний крутнй момент двигуни розвивають за швидкості 1480 об/хв., і станвить він 450 Н*м. Запас крутного момента 37 % дає змогу долати короткочасні перешкоди

Reversible synchronized transmission Proxima Plus has 16 front and 16 rear gears, as well as a built -in two -stage torque amplifier without breaking the power flow. The transmission is equipped with a shadower, which is why the minimum speed is 0.22 km/h. The clutch coupling is dry, single -plate with hydraulic control. The maximum speed of movement is 40 km/h

due to the convenient hat and electro -hydraulic management of GDP (540/1000 rpm), the tractor immediately responds to the maneuvers performed by the operator. The anterior GDP has a frequency of 1000 rpm

= The performance of the pump of the hydraulic system is 50 l/min, and the working pressure reaches 19 MPa. The maximum lifting force of the rear hinge is 4200 kg, and the front - 2300 kg. In the hydraulic system of working equipment, an additional hydraulic distributor was installed. The maximum clearance of the tractor, depending on the tire profile, is 468 - 508 mm. Agricultural producers of England, France, Germany, the United States have three to four used new tractor. According to statistics, more than 50% of mechanized works are performed by tractors purchased from the secondary market.

Для роботи у посівах просапних культур передбачена зміна колії передніх коліс у межах від 1525 мм до 1920 мм, а задніх – від 1350 до 1800 мм. Максимальний кліренс трактора, в залежності від профілю шин, становить 468 – 508 мм.

На завершення

Незважаючи на популярність нової техніки, серед малих та середніх фермерів провідних європейських держав дедалі більший попит мають вживані трактори. У сільськогосподарських товаровиробників Англії, Франції, Німеччини, США на один куплений новий трактор припадає три-чотири використаних. За статистикою, понад 50% механізованих робіт фермери виконують тракторами, придбаними на вторинному ринку.

= in developed countries, the main seller of used tractors are dealerships that can provide quality pre -sales preparation, provide proper maintenance and repair. The tractors market

В Україні вторинний ринок тракторів to domestic farmers will develop under the conditions of creation of a grid of dealer and service enterprises, workshops and sections on the purchase and restoration of used machines, units and units, their sale, rental or rental, maintenance and repair, and repair. parts.
