Grain planter grain 5, 4v, Kirovohrad region.

Grain planters Grain are intended for regular sowing:
grain crops (wheat, rye, barley, oats);
legumes (peas, beans, soybeans, lentils, beans, plantains, chickpeas, lupins);
grass crops (rape, mustard, flax)
with the simultaneous application of mineral fertilizers and rolling of the soil in the sown rows.

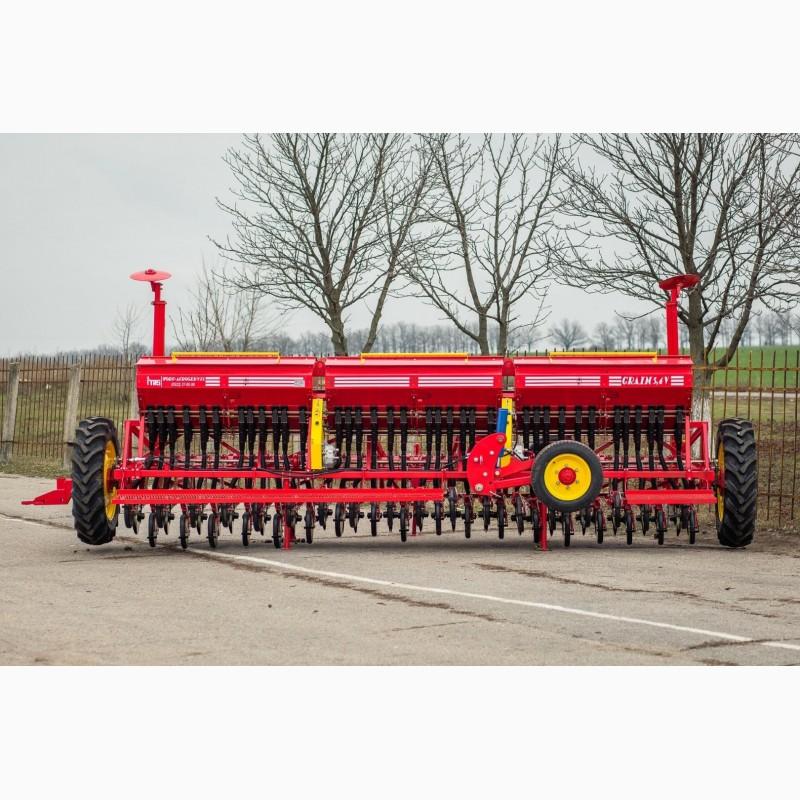

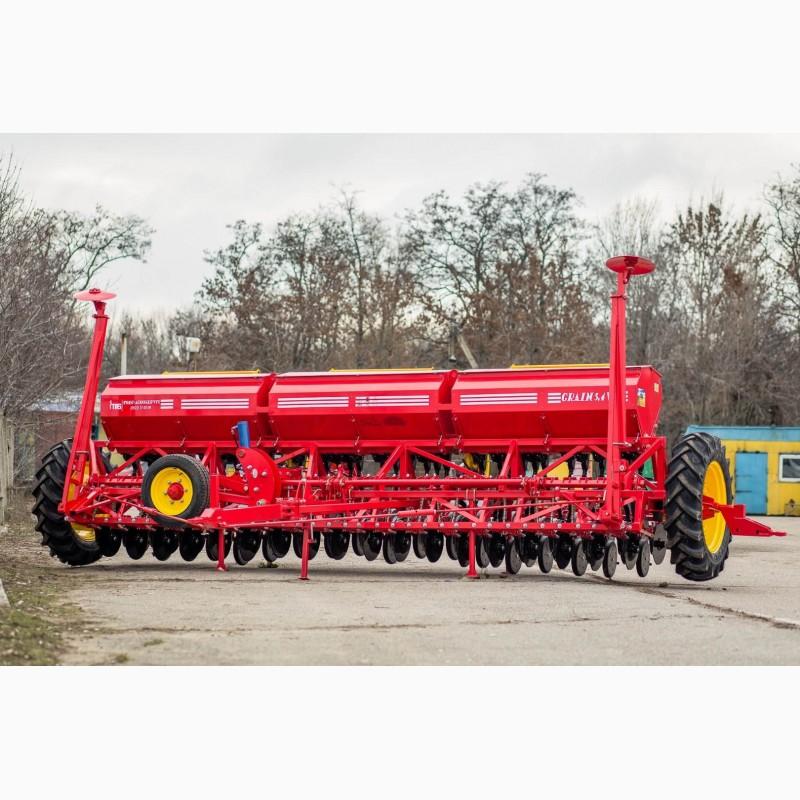

GRAIN 5.4V The Grain 5.4V seeder is designed for row sowing of cereal seeds (wheat, rye, barley, oats), legumes (peas, beans, soybeans, lentils, beans, chickpeas, chickpeas, lupins), small-seeded crops (rape, mustard), loose and medium-loose grass seeds, with simultaneous application of mineral fertilizers and by rolling the soil in the sown rows. It can be used for sowing seeds of other crops, close to cereals in terms of seed size and sowing rates (buckwheat, millet, sorghum, etc.)

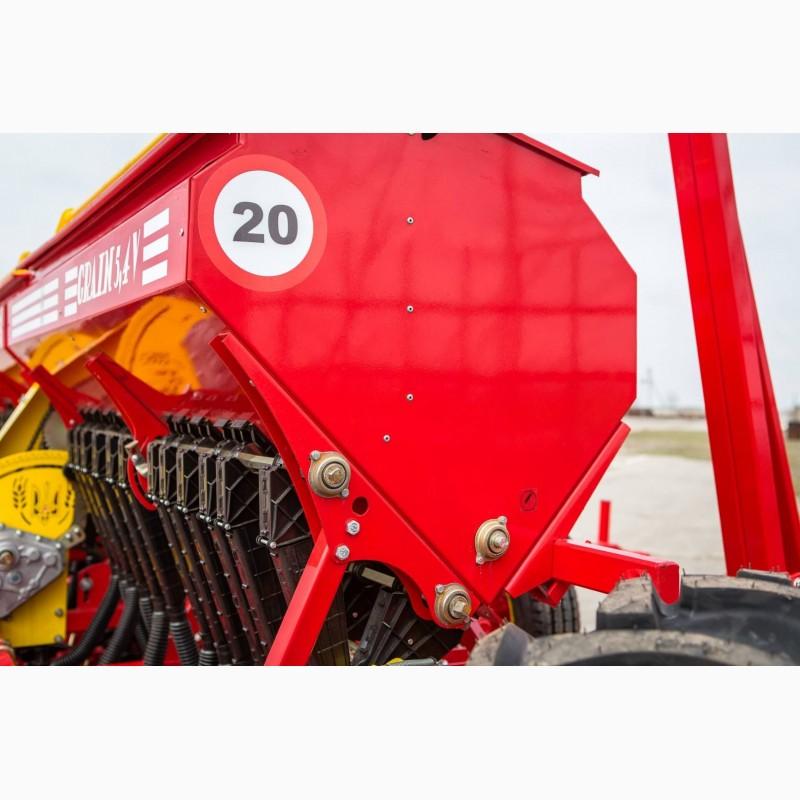

Grain 5.4V has hoppers for seeds and fertilizers with a volume increased by 1.5 times.
Grain 5.4 is aggregated with tractors that have an 80 hp engine.
When using the SP 10.8 clutch, it is possible to assemble a tractor-hydraulic wide-grip unit from two Grain 5.4V planters.
The two-seeding unit with SP 10.8 linkage increases productivity by 1.5-2 times. The clutch is aggregated with tractors equipped with engines with a power of 150 hp or more, by trailing method. It is completed with hydraulic markers controlled fromtractor cabin.

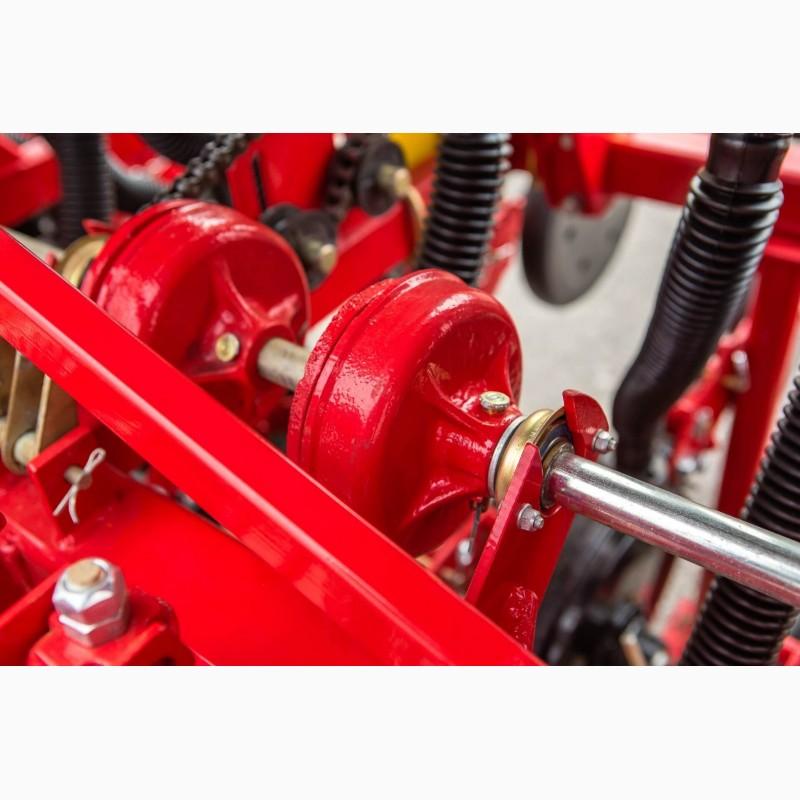

Grain and fat seeding devices are made of polymer material, which eliminates the possibility of corrosion of device parts and accordingly increases the service life.
The grain seeding device has a screw coil for sowing grain and leguminous crops and a pin coil for small-seeded crops (rapeseed, mustard), as well as sowing loose and medium-loose seed grasses.
The seeder for grain and leguminous crops is equipped with a damper, which has three fixed positions, which regulate the rate of supply of seed material to the screw coils. The seeder for small-seeded crops is also equipped with a separate damper, which has three fixed positions, which regulate the rate of supply of seed material to the pin coil.

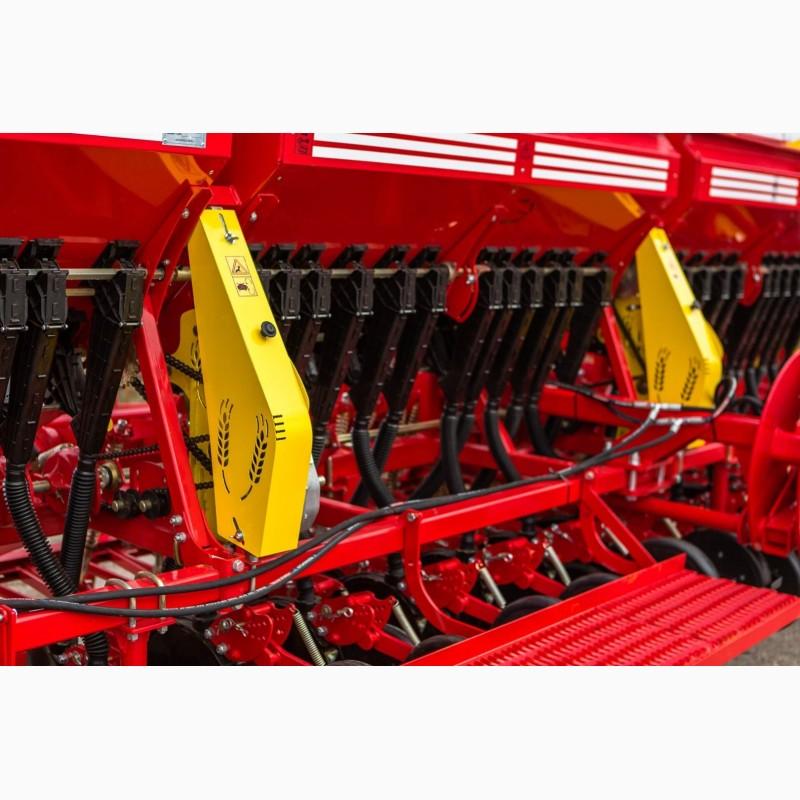

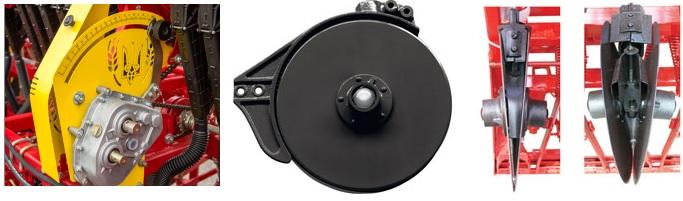

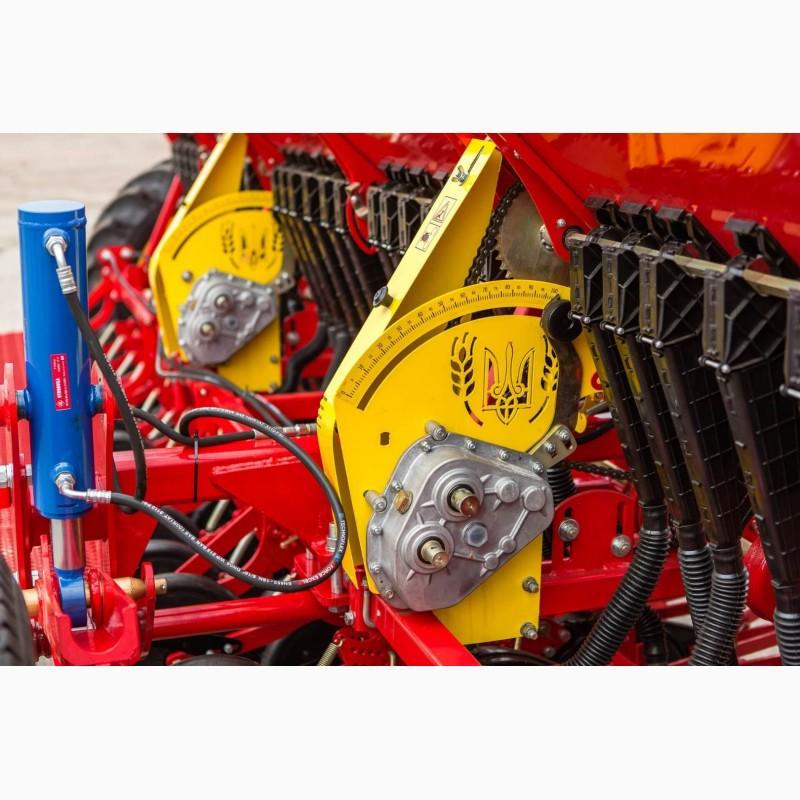

Instead of gear reducers, variators are installed on the seeder: separately on the shafts of grain and on the shafts of fat sowing devices, which makes it possible to continuously adjust the sowing rates of both seeds and fertilizers.
The seeder is equipped with markers on which separate hydraulic cylinders are installed, which facilitates their control by the operator from the tractor cabin.(//tractor-service.com)

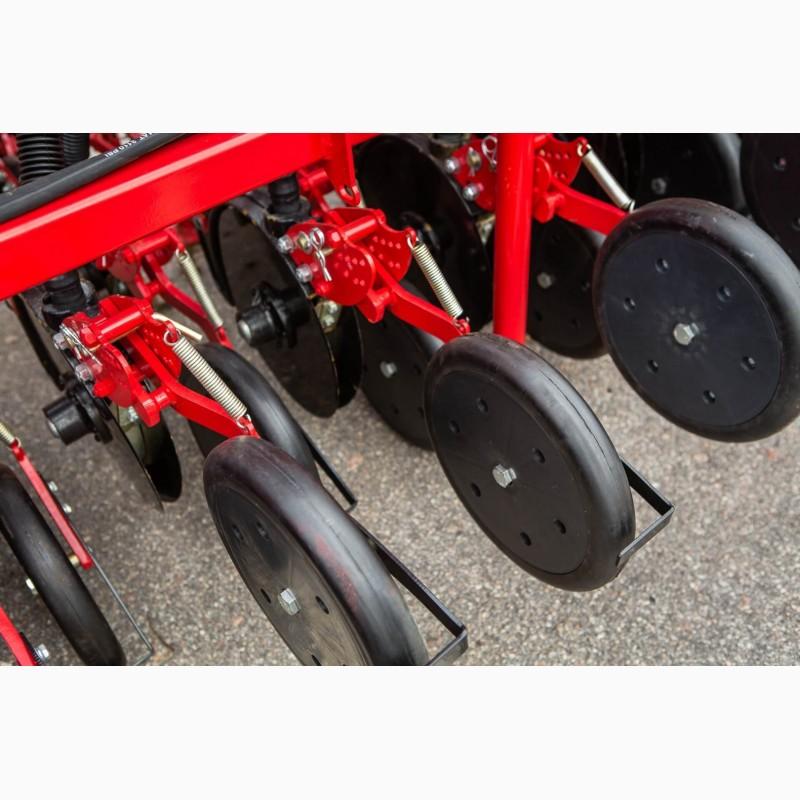

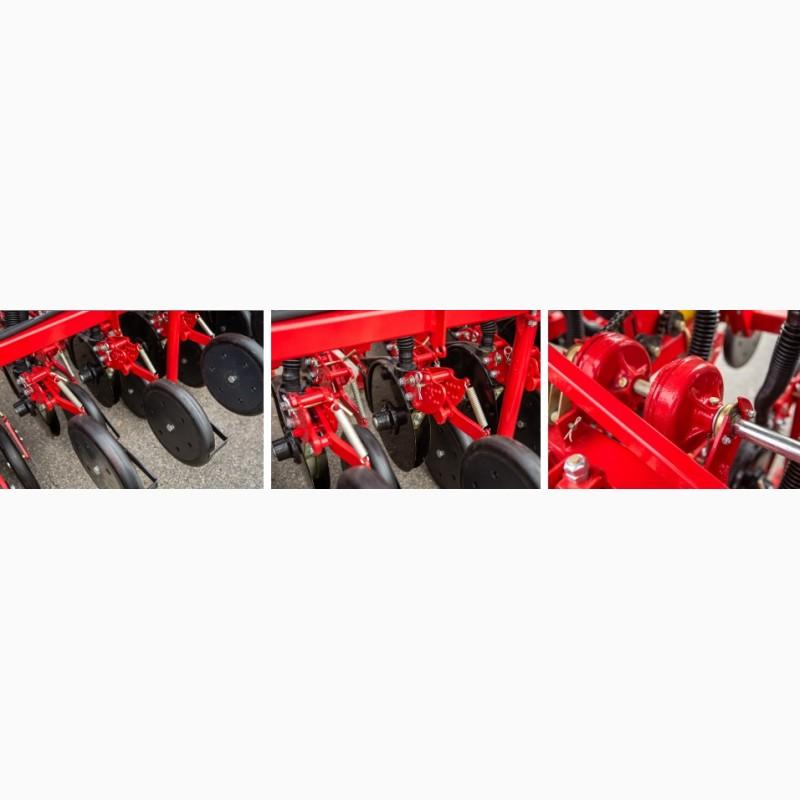

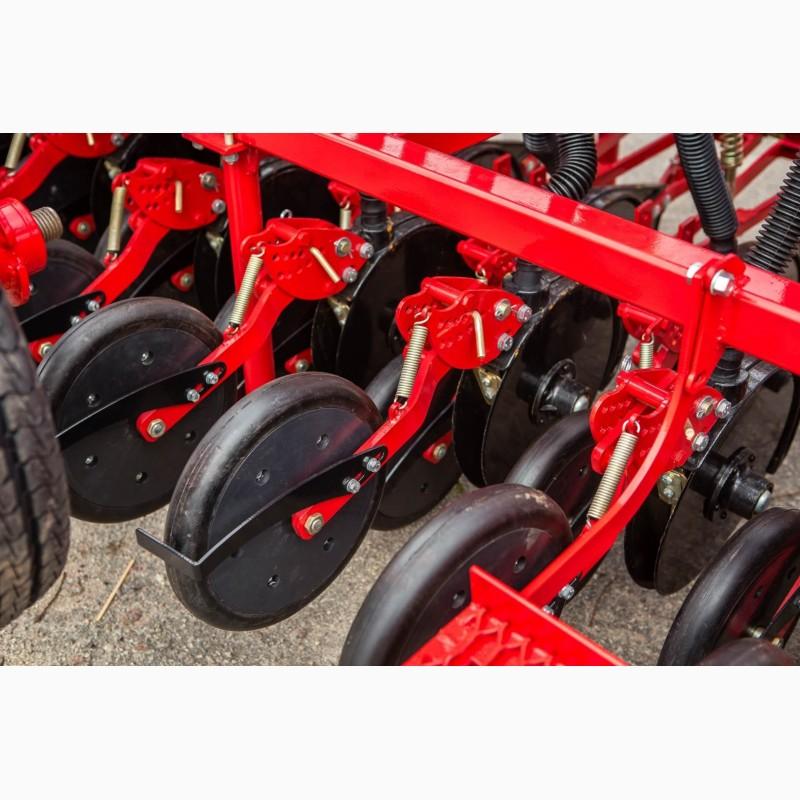

The single design of the unit "coiler and heavy roller" allows you to adjust the coiler to a certain depth of seed wrapping with an interval of 1 cm.
Handles for group opening of flaps for cleaning the hoppers from the remains of seed material are installed on the shafts of the grain and fat sowing devices.
To order, planters are equipped with a transport device, which allows you to move them on general purpose roads without the use of additional vehicles.
Width of capture m 5.4
Number of rows pcs. 36
Width between rows cm 15
Seed sowing rates kg/ha 4-400
Fertilizer sowing rates kg/ha 25-200
Depth of wrapping seeds and fertilizers mm 40-80
Working speed km/h 9-12
Productivity ha/hour 4.9-6.5
Capacity of hoppers for seeds dm3 1000
Capacity of fertilizer bunkers dm3 500
Weight kg 3135
It is aggregated with tractors with a power of hp. от 80
