IMPeller separating machine ISM (quality cleaning and calibration of different seeds), Kharkov region.

Machines of ISM are aerodynamic separators that process and calibrategrain by grade with high accuracy.
The constructions of nodes represent the latest technological achievements in grain processing.
Simple and reliable!

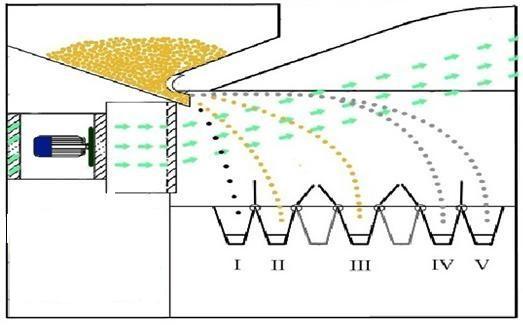

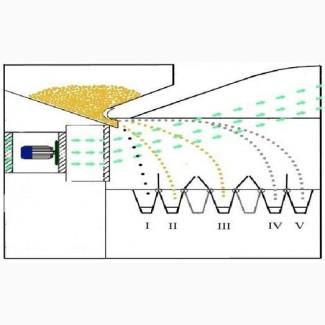

The main difference between aerodynamic and sieve separators is that the former separate the grain mixture into fractions based on the specific weight and buoyancy of its components, and the latter - by size. It is the weight, not the size, that is the main indicator of the integrity and biological value of the seeds, sifting out injured, weak and split grains. Separation by weight makes it possible to select heavy, dense, maximally nutritious grains.

The aerodynamic separator can work in 4 modes:
- pre-cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).

Additional equipment:
- Wheels 1 k-kt, c. UAH 600; 170
- Мешок, ц. 400 грн.;
- Rubber coating of the inner walls of the machine (for working with soybeans, saves up to 3% of the grain from splitting), c. UAH 1,500.

Ц - Cyclone-sedimentary complex of a closed cycle.
ИСМ-...(Ц) is a unit consisting of one cyclone and two or three sedimentation chambers, intended for cleaning the air circulating in the separator from dust.
In the cyclone-sediment complex, a special labyrinth system of the air duct is combined with a system of changing its passage section. The system cleans the air by 98%, and with the use of additional filters provided in its design, by 100%.

Cleans and calibratesany grain Ukraine!
24 month warranty!

ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;

ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;

ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm., c. 125,000 UAH.;

ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;

ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg, dimensions d.2310/w.650/h.2400mm, c. UAH 149,700.;

ISM-40, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 710kg, dimensions d.2310/w.1150/h.2400mm., c. 183,000 UAH.;

ISM-50, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 710kg., dimensions d.2310/w.1150/h.2400mm., c. 198,000 UAH.;

ISM-100, cleaning 100t/h, calibration up to 50t/h, 4.0-11.0kW, 380V, 50Hz, weight 860kg, dimensions d.3130/w.1750/h.3017mm., c. UAH 399,000;
(//tractor-service.com)
ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg, dimensions d.3200/w.1000/h.2000mm., 220V - c. UAH 88,000, 380V - ts. UAH 91,000;

ISM-10 Tsok, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. UAH 100,000;

ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg, dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500;

ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 206,800;

ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg., dimensions d.4800/w.1150/h.2800mm., c. UAH 225,400.;

ISM-40 TsOK, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 1100kg., dimensions d.4907/w.1574/h.2864mm., c. UAH 269,000;

ISM-50 TsOK, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 1100kg., dimensions d.4907/w.1574/h.2864mm., c. UAH 290,300;

ISM-100 TsOK, cleaning 100t/h, calibration up to 50t/h, 2.2-7.0kW, 380V, 50Hz, weight 1600kg, dimensions l.6382/w.2250/h.3682mm., c. UAH 465,700.;

SOC-25 c. UAH 520,000;

SOC-30 c. UAH 530,000;

APO-5 c. UAH 80,800.;

APO-50 c. UAH 162,000.

Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. UAH 600.
- setwheels for ISM-5, ISM-10, ts. UAH 700.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. UAH 750.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. UAH 850.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. UAH 960.
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. 260 UAH.
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. UAH 6480.
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. UAH 2000.
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.

Price of November 2022.
