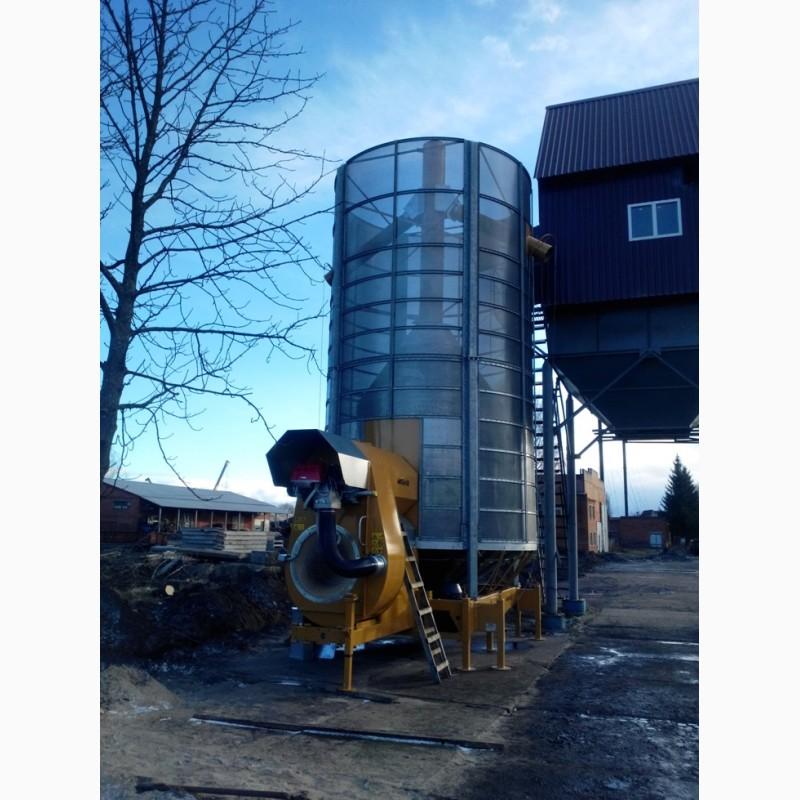

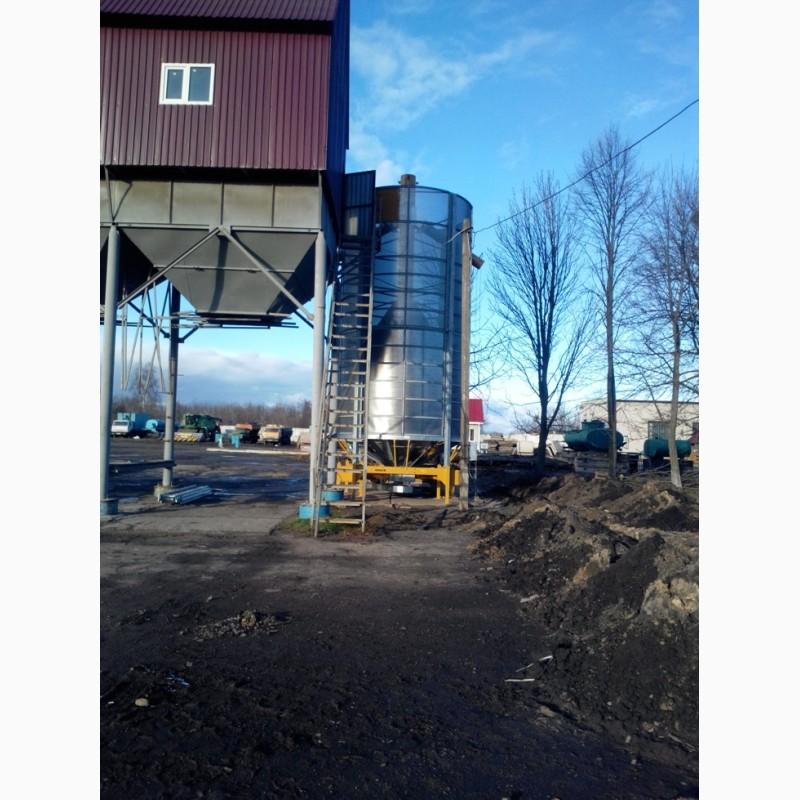

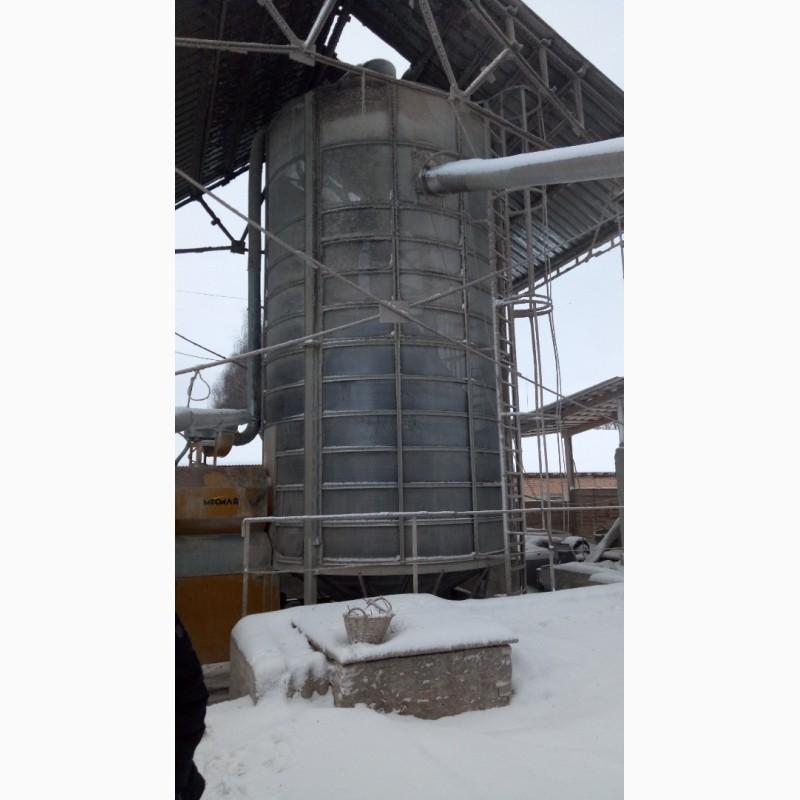

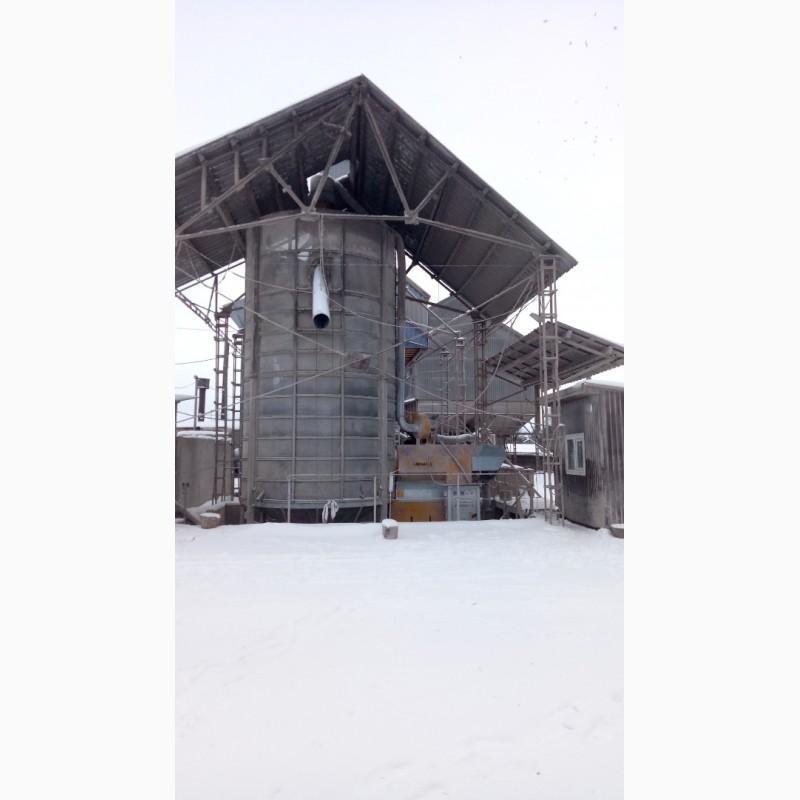

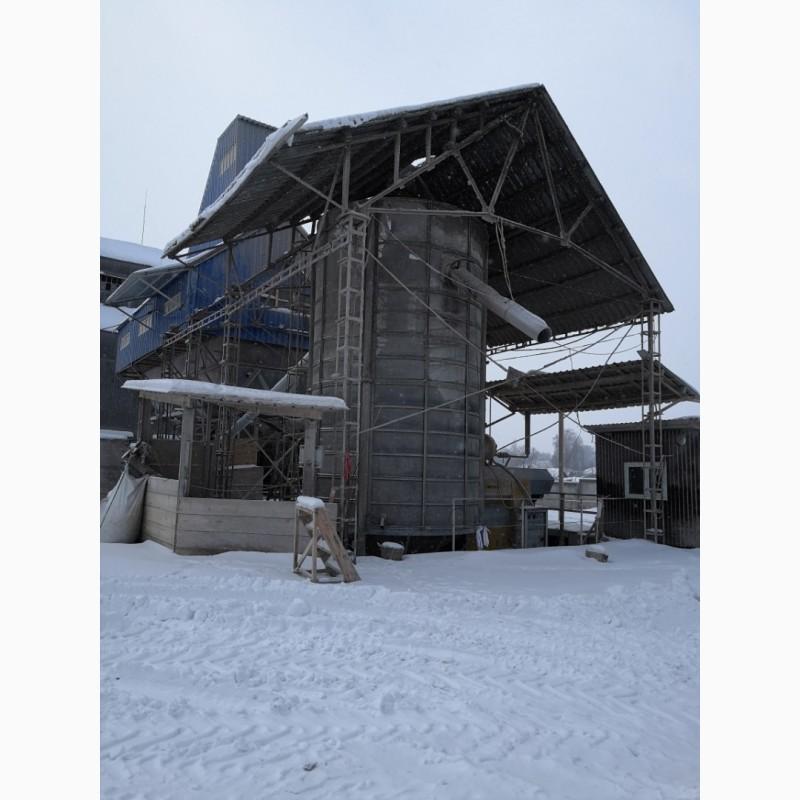

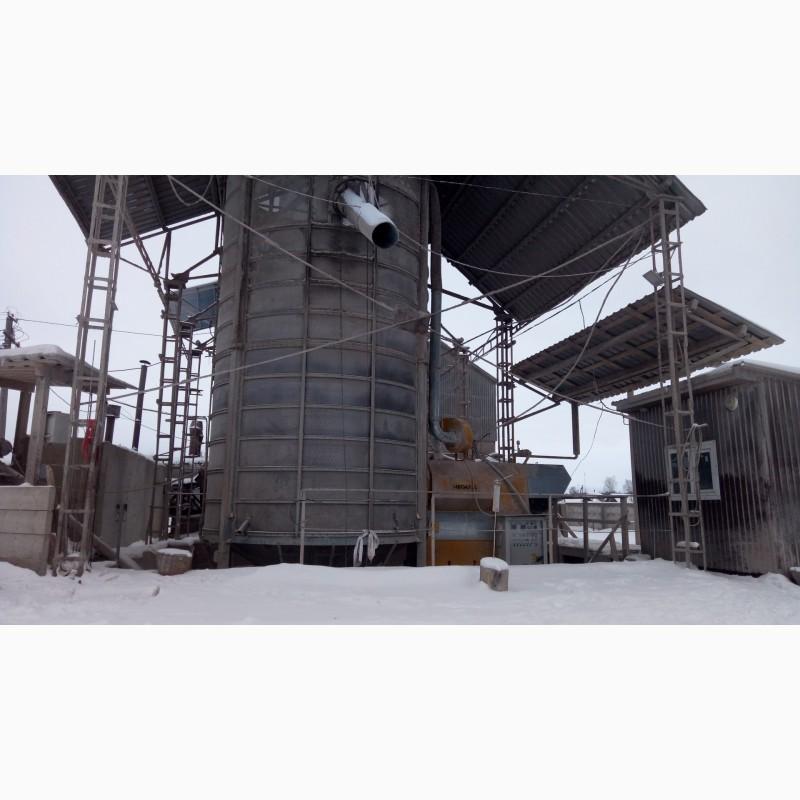

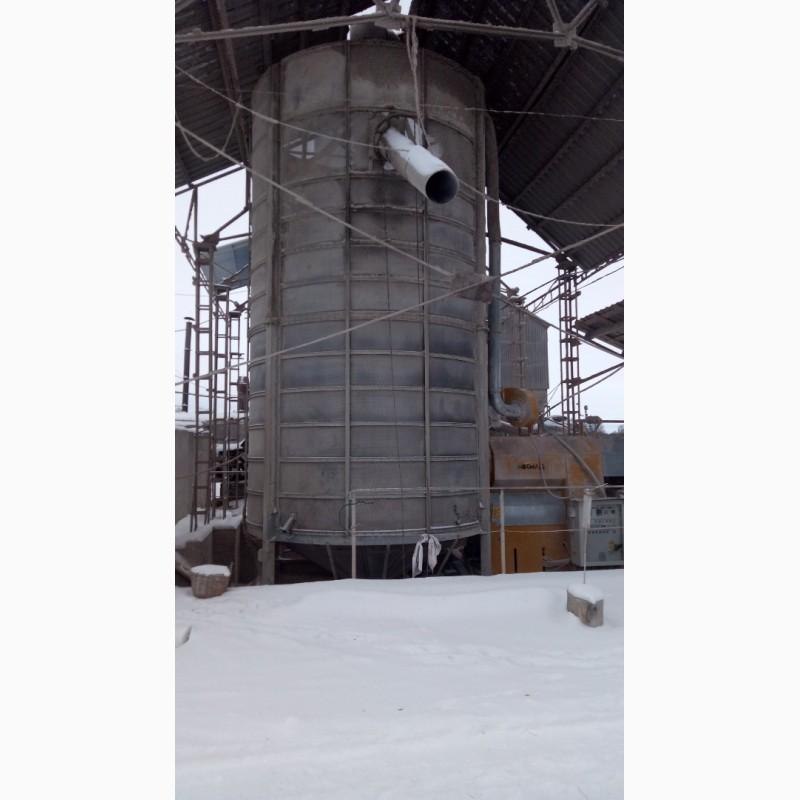

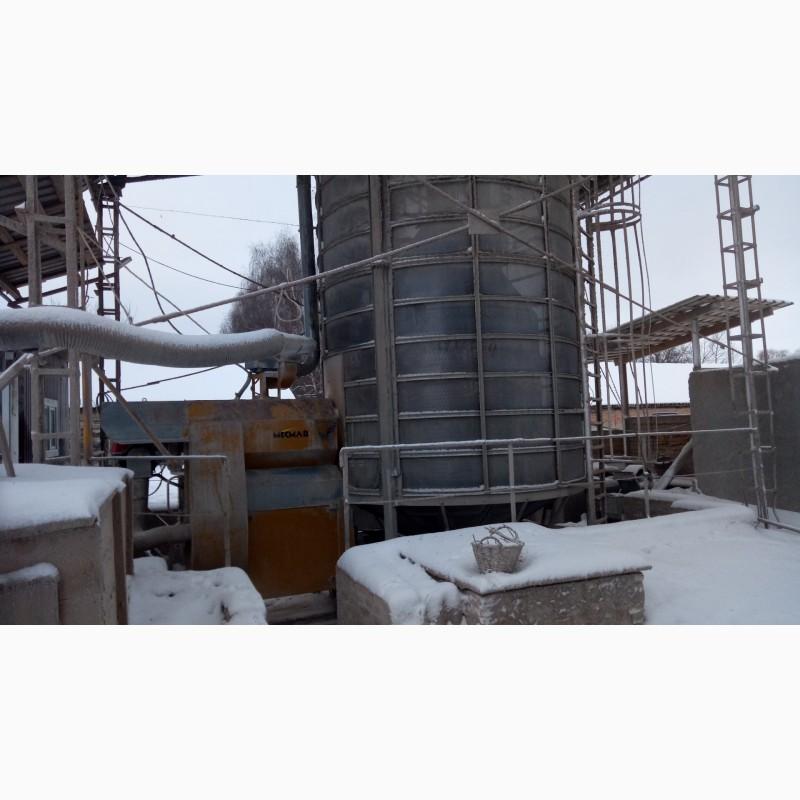

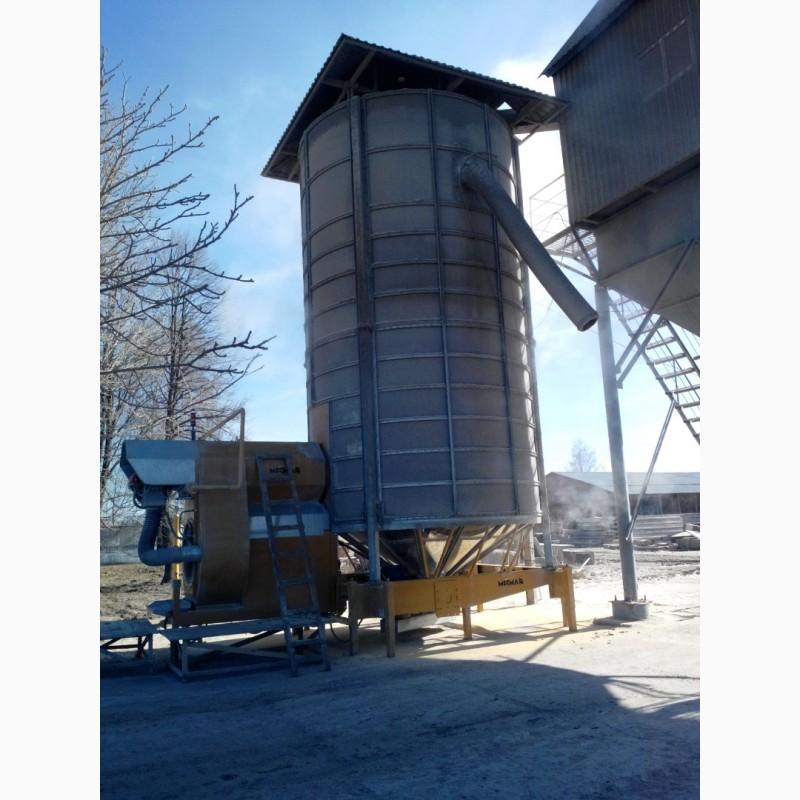

Mobile grain dryer Mecmar S 45/ 370 F, Chernihiv region.

Bu, Year of launch in expl. 2017, working hours 3116 m.h. Gas and (or) diesel burner included.

• Semi-automatic mode – the dryer loads automatically, performs drying, cooling and unloading, after which it turns off automatically at the end of the cycle.
• A dryer powered by 4 electric motors – each element of the dryer is driven by a separate motor (loading auger, central auger, auger and fan).
• All augers with a variable pitch and a reinforcing layer - to ensure the same load on the grain and the absence of injury (relevant for seed material), and the reinforcing layer allows to ensure functioning even in extreme conditions, when processing a contaminated product or one with increased humidity, and also gives the opportunity to extend the service life of the auger;
• Set of petal protection of the heating chamber, which is especially important when dryingsunflowers.
• Grids are made of stainless steel, and critical components of the machine are made of galvanized steel.
• Reinforced frame of an industrial model - guarantees the safety of moving the machine even on rough terrain.
• A removable conical gear pair is used, which transmits movement to the central screw. This element allows you to carry out maintenance and replace parts in the event of their failure without the need to empty the machine from the grain loaded into it.

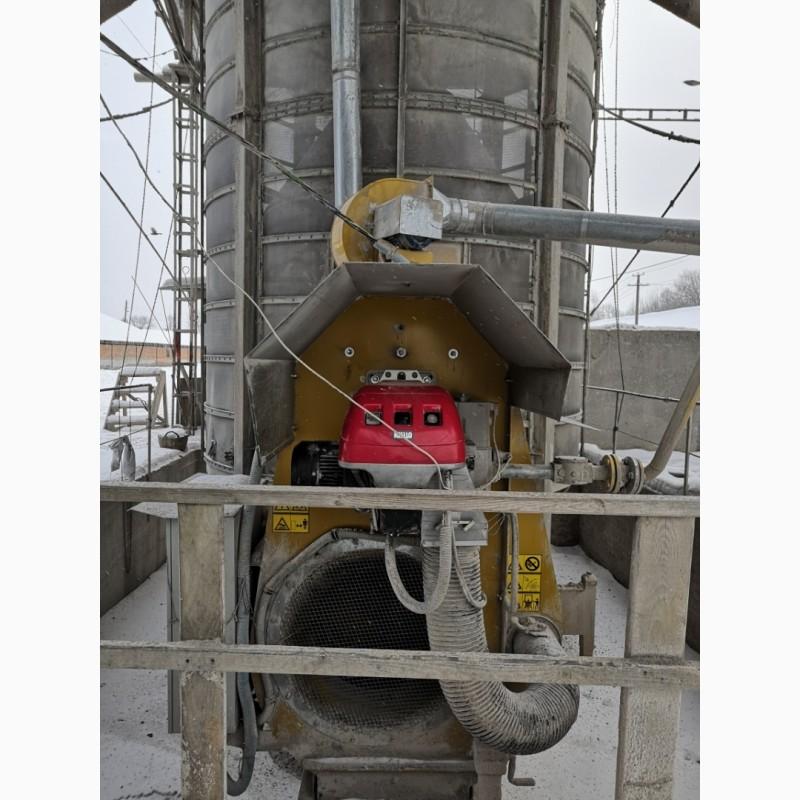

• The dryers are equipped with Riello burners of an industrial model, which guarantees the highest operational characteristics and world-class service.

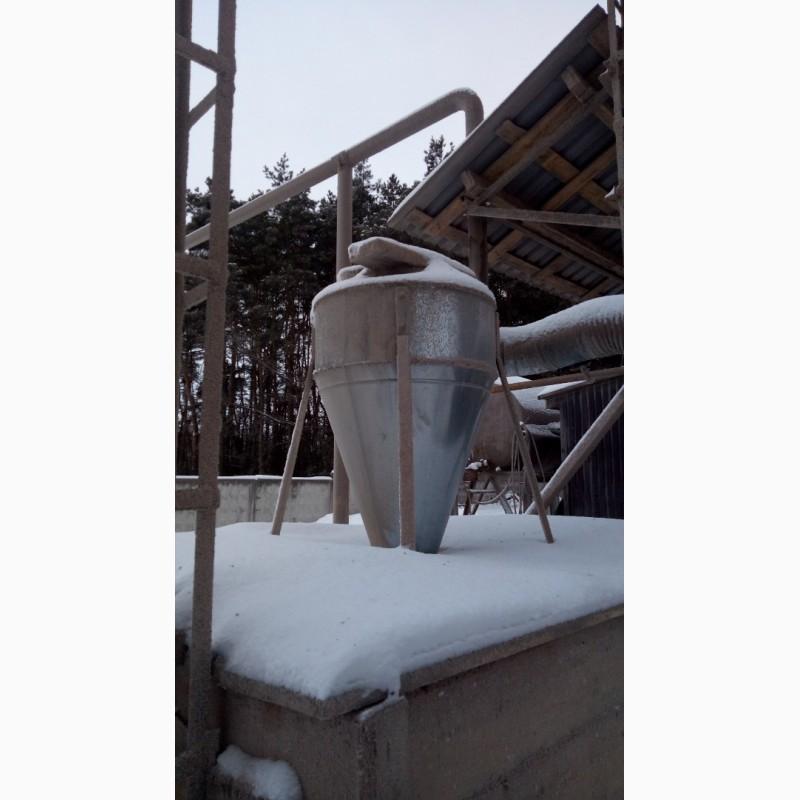

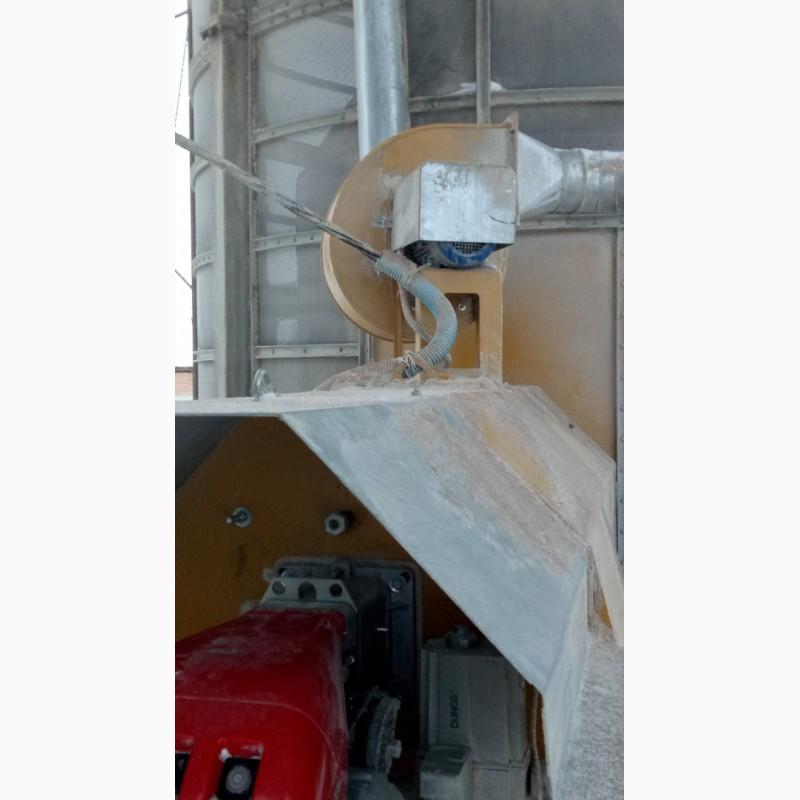

• Aspiration system – for removing light impurities during drying (optional);
• Rain cover (optional);
Standard equipment:
• Power take-off shaft drive (PTO);
• Diesel two-stage burner Riello (Italy);
• Fuel tank with level indicator;
• Perforated mesh made of AISI 430 stainless steel with holes of Ø2.5 or Ø1.5 mm to choose from (perforation with holes of the second diameter upon request);

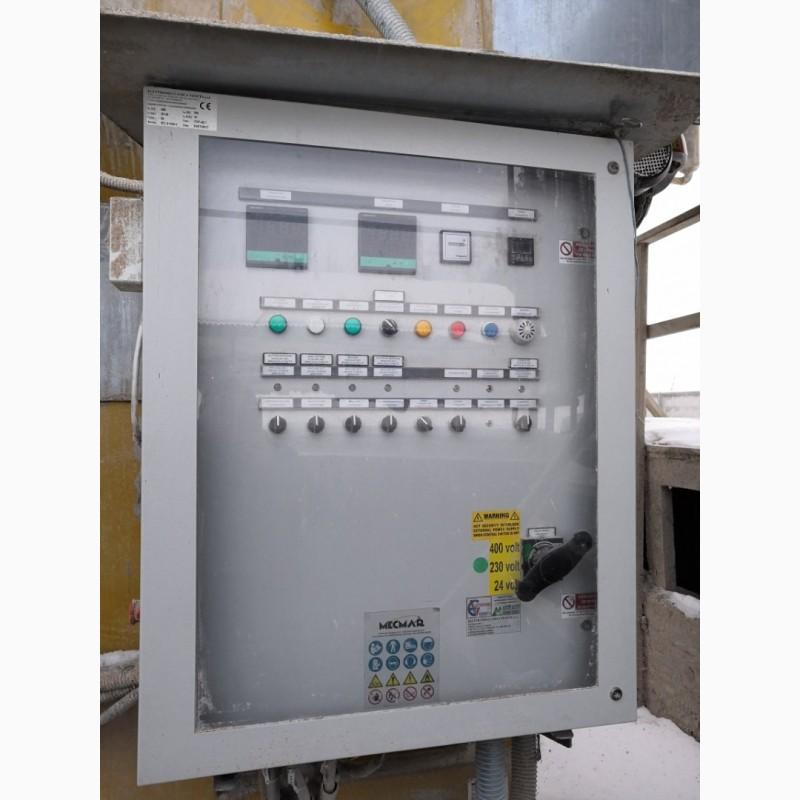

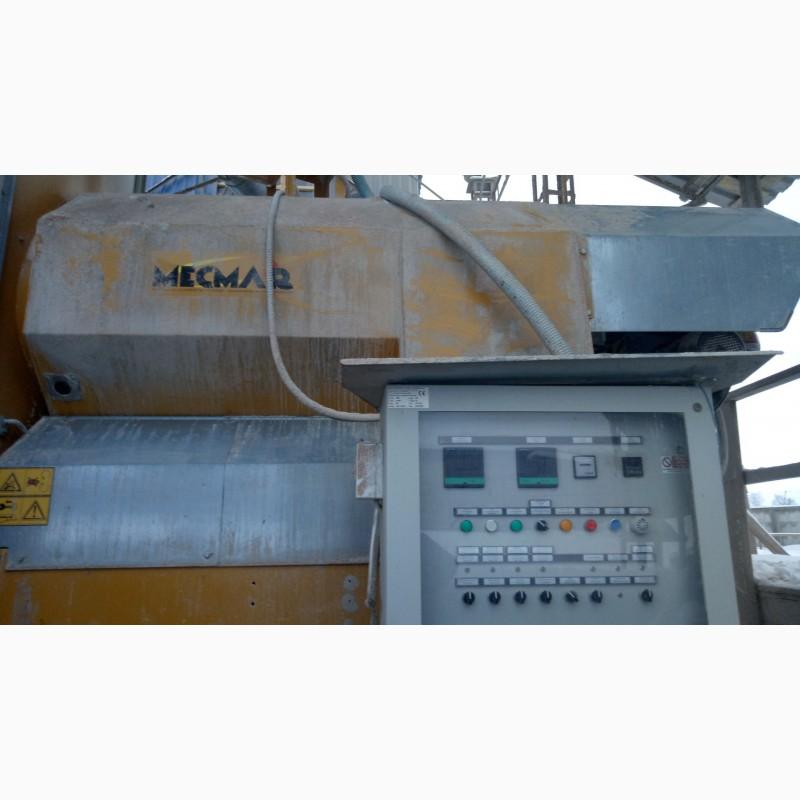

• Burner and dryer control panel: the burner automatically stops when the selected grain temperature is reached and in case of overheating of the air. Digital devices with a double display for displaying the set and real temperature;
• Painted steel frame onwheels;
• Deep galvanizing cylinder and cone racks;
• Bolts with anti-corrosion coating, a specially rounded cap facilitates grain sliding;
• Central auger with variable pitch and receiving tray, with reinforced spirals in the places most prone to abrasion (bottom and top); 175
• Двухсторонняя разгрузка с ручным управлением;
• Gravity cleaner for impurities and small fractions with a drive from the central auger;
• Manually operated winch for raising and lowering the central auger and telescopic rings (in the models provided for this);
• Central lubrication of nodes;
• Lubrication of the middle and upper support of the central auger for models S and F (additional option for other models);
• Sampler for moisture tests;
• Adjustable supports for positioning the dryer;
• Levels of control of the horizontal position of the dryer;
• Aluminum ladder;(//tractor-service.com)
Technical characteristics of MECMAR mobile dryers
MODEL S 45/370 F
Diameter (m) 3.85
Volume (m3) 67
Capacity (t) 50
The height of the cylinder in the transport position without the upper pipe/with the pipe in an inclined position (m) 8.53
Height in working position without aspiration/with aspiration (m) 8.53/10
Unloading height without tray/with tray (m) 6.71/-
Electric motor power (kV) 75
Nominal PTO powertractor (kV) 540rpm 95
Power of the engine of the central screw (kV) 30
Power of the loading auger motor (kV) 11
Power of the winch engine (kV) 2.2
Power of the aspiration engine (kV) 2.2
Burner power range (kV) 10
Burner model (gas) methane RS250
Generator power (KVA) 900/55
Fan power (kV)/maggior ato (kV) 72000/100000
Main fan (Ø/W) 300
Fan productivity (m3/hour) at a pressure of 200/100 457
Loading auger Ø (mm) 9900
Central pipe Ø (mm) 10750
Weight with PTO (kg) 10500
Weight with PTO+E.D. (kg)
Weight with 4 ED (kg) 1000
Weight with 1 E.D. (kg)
Fuel tank volume (l) 1000
Productivity t/day when removing % humidity 25-14 corn 267
19-14 wheat 386
14-8 rape 230
14-8 sunflower 219
