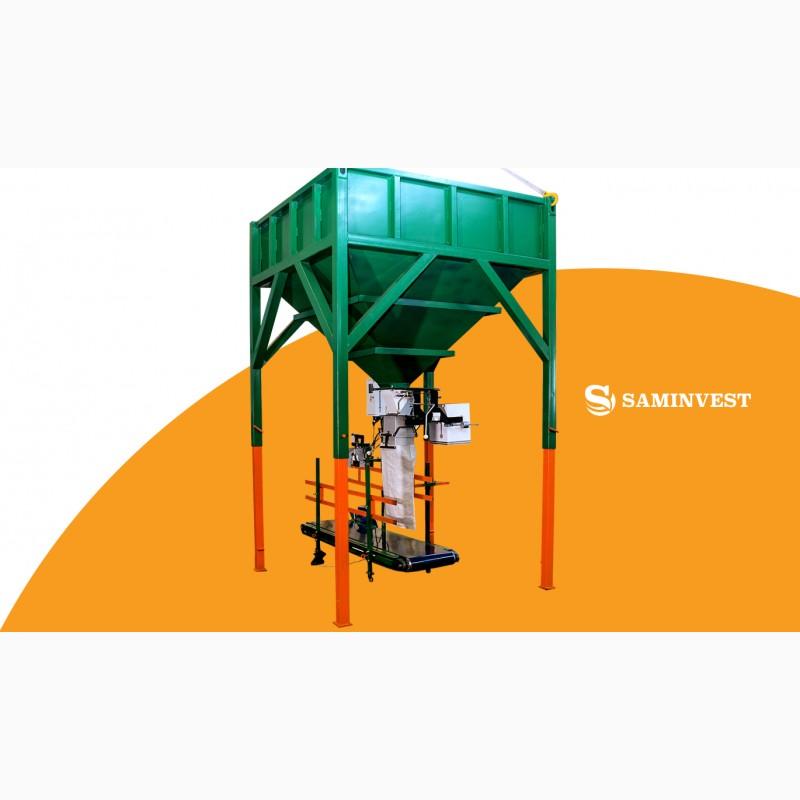

Packing line in 10-50 kg bags, Kharkiv region.

The equipment is intended for packing easily loose products into open-type bags with subsequent stitching. The equipment is compact, mobile with minimal energy consumption, because the main packing processes are based on mechanical principles.
Excellent for packing in polypropylene and paper bags.

Features:

• Bunker storage:
Hopper volume: V = 2.6 m3;
Width: 1900 mm;
Length: 1900 mm;
Height: adjustable from 3120 mm to 3520 mm;
Weight of the bunker: 710 kg.

• Weighing dispenser:
Mechanical system of dropping the bag upon reaching the required weight;
Productivity: up to 6 t/h (bags 10-50 kg);
Permissible fraction of bulk production: up to 25 mm.

• Belt conveyor:
The conveyor is adjustable in height, width and speed;
Length: 2000 mm;(//tractor-service.com)
Width: 700 mm;
Height without electric rack: 1000 mm;
Drive power: 0.55 kW;
Power supply: 220V;
Weight: 150 kg

• Bag sewing knot:
Automatic thread trimming: Yes;
Engine power: 90W;
Foot lift: 17 mm;
Stitch length: up to 9 mm;
Sewing materials: paper, polypropylene, jute, fabric.

• Total weight of the line: 893 kg
