Automated product packing line in polymer containers with sealing and capping, Kyiv

Composition of the line:
1 -composition tare;
2 – receiving node;
3 – carousel receiving node;
4 – dispenser (option);
5 – gas injection (option);
6 – sealing the necks and cutting the film;
7 – dressing the cover (option);
8 – removal from the carousel;
9 – carousel;
10 – reception table of finished products; 156
11 – оператор;
12 – film supply unit and film winding.

The line is intended for the preparation and packaging of liquid, granulated, loose products, in polymer containers, with covering (sealing) with a polymer film seal, pumping out air and pumping gas from the package, sealing with a lid.

Installation of the line does not require specialized foundations, in a room with an area of 80 m2. (excluding storage and technological areas).

The automated line can be operated in 1 -:- 3 production shifts, with short breaks for maintenance.
1-2 operators are required to service the line.

Technical characteristics:
Consistency of the dosed product - liquid, viscous, loose, granular(//tractor-service.com)
Dispenser type (option) - weighing / volumetric (according to customer requirements)
Number of dispensers - 1 - 4
Dosing limit - according to the customer's requirements.

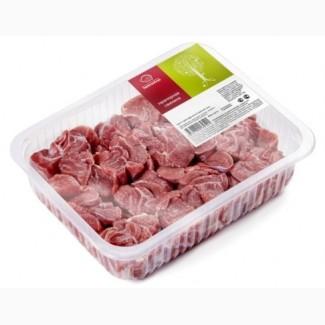

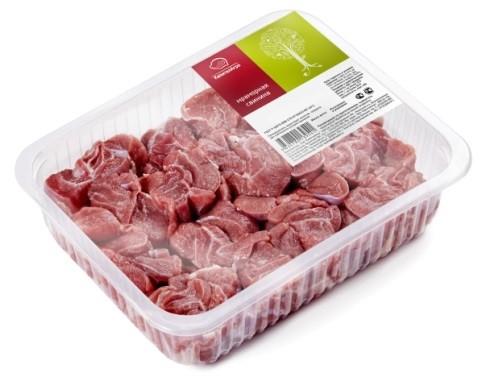

Type of container - polymer buckets, trays, glasses.
The size of the polymer container - according to the customer's requirements.
The material of the polymer container is polypropylene
The material of the film for sealing the necks is non-oriented polypropylene, 35-40 μm
Air extraction / gas order (option) - automatically
Productivity - Up to 15 pcs/min (according to customer requirements)
Delivery of tare - by the operator
The number of standard sizes of the container to be sealed on the equipment is 1, for each additional standard size of the container, it is necessary to purchase a replacement tool.
1 kg container dimensions - 120*120*110mm; 2 kg - 190*120*115mm;
The number of containers into which dosing is carried out at the same time is 1-4 (according to the customer's requirements)
Sealed container outlet - automatic
Class of equipment - automatic machine
The type of heating of the sealing tool is permanent.
The instrument's heating temperature is regulated.
Film feeding, neck sealing, film stretching, contour trimming - in automatic mode
Drive - pneumatic, electro-mechanical
Installation and clamping of the cover (option) - automatically
Power consumption - up to 5 kW
Connection - 220 (380) V, 50 Hz, 6 atm.
*The compressor is not included in the delivery set.
