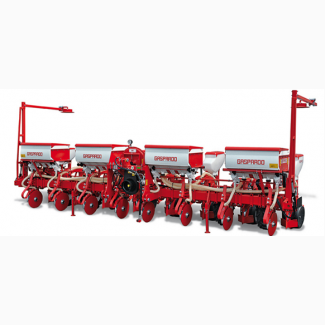

Model MTR-8 Sowing system vacuum Seeder type Rowing / Disc coulters, diameter 420 mm Working width, m 5.60 Number of rows, pcs. 8 Width between rows, cm 70 Sowing depth, cm 0-10 Pressure of the seeding section on the soil, kg up to 180 Working speed, km/h 6-8 Seed hopper capacity, l 8 x 36 Fertilizer hopper capacity, l 4 x 160 Type of gear change mechanism chain-star Electronic control system standard / control of each coulter Grass hopper capacity, l Grass seeding rate, kg/ha Aggregation method Mounted Minimum tractor power, k.s. 100 Traction class, k.s. 2.0 (100-130 hp) Weight. kg 1730 Manufacturer GASPARDO
Advantages: 1. Solid frame of the planter of square section. Made of high strength steel. 2. The hopper for seeds is made of special plastic and has a volume of 8 pcs. of 36 l each. 3. The hopper for fertilizers is made of strong plastic and has a volume of 4 pcs. 160 liters each 4.Smooth adjustment of the sowing depth from 1 cm to 12 cm using a screw handle 5.The coil of the sowing device is made of silicone, so the mineral fertilizer granules are not damaged. 6. Reliably protected Super Seal bearings and self-lubricating bushings of opening discs. 7. In total, the gearbox has 14 gear ratios. 8. Synchronized quick-disconnect cardan transmission, which combines reliability and accuracy, does not require maintenance or adjustments, unlike chain transmission. 9. Installed seed sowing controller of each section, counter of hectares per shift, counter of hectares of total area, sowing speed, sowing distance (cm) on average of all rows or each row separately, in MC V1200. 10. Disc sets for different cultures.
11. The presence of wheel and disc cleaners - guarantees non-stop work 12. Central vacuum in sowing devices with a pressure gauge. 13. The double selector guarantees the accuracy of single grain sowing. 14. The seed is fed into the furrow through a smoothly bent tube, thereby improving the accuracy of seed placement, and the sickle-shaped wear-resistant coulter, which is located between the seeding discs inside, creates an ideal sowing bed for seeds. 15.ARM STRONG - reinforced parallelogram, which guarantees a constant sowing depth on uneven and deep soils and stability at high speeds 16.Adjustable pressure of the sowing section on the soil up to 180 kg 17.Depth control wheel tires create less pressure near the opening disc. Their
rubber is easily deformed when hitting an obstacle without disturbing the seeding depth. 18.
Wheels depth control have independent suspension and are self-cleaning. 19. In front of the two-disc coulter, a cutting disc "coulter" for the work of the seeder at zero or a clod breaker for prepared soil can be placed. 20. Opener discs with a diameter of 420 mm and a thickness of 4 mm. The largest seed drills in this category, for an ideal furrow in any conditions 21. Rollers with hermetic bearings 22. A two-disc coulter is used for fertilizer application, which cuts the soil well, ensuring high-quality work.
