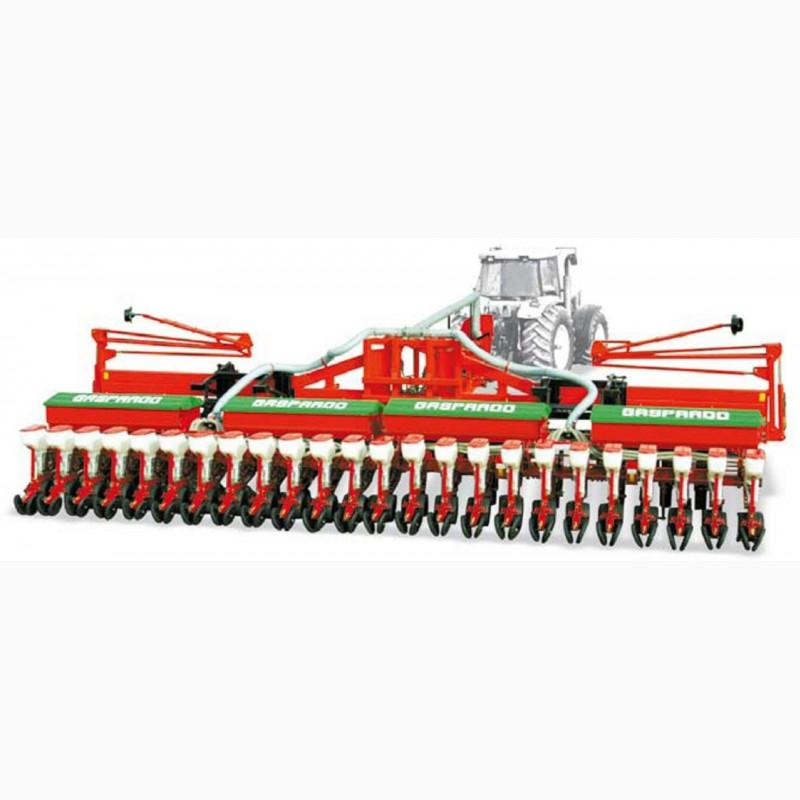

Model METRO 16 MTR Sowing system vacuum Type of seeder Row-row width, m 11.2 Number of rows, units 16 Width between rows, cm 70 Sowing depth, cm 0-10 Pressure of the sowing section on the soil, kg 120-180 Working speed, km/h 6-8 Seed hopper capacity, l 16 x 60 Fertilizer hopper capacity, l 4 x 950
Gear change mechanism type
chain-star / Cardan drive of the seed drill does not require maintenance or adjustments and is reliable in operation. Electronic control system standard / control of each coulter Capacity of grass hopper, l Grass seeding rate, kg/ha Aggregation method Semi-trailers Minimum tractor power, hp 300 Traction class, k.s. 5.0 (280-340 hp) Gabar size in trans. condition L/W/H, m 6.0 Weight. kg 7420 Manufacturer GASPARDO
Advantages: 1. Planter frame of square section. Made of high strength steel. To ensure stability, the block frame is made of a single cast iron with stiffening ribs that increase torsional resistance. Also, the ARM-STRONG™ parallelogram is made of cast iron and guarantees a large vertical reciprocating movement for greater stability and sowing at the same depth; 2. Ease of adjusting the sowing depth with a screw mechanism. 3. The seed hopper is made of special plastic. 4. The fertilizer hopper is made of strong plastic and has a volume of 950 liters. (4 pieces). 5. The coil of the sowing device is made of silicone, so the mineral fertilizer granules are not damaged. 6. The metal is 30% stronger than previous models. 7. Reliably protected Super Seal bearings and bushings with auto-lubrication of opening discs.
8. In total, the gearbox has 14 gear ratios. 9. Cardan drive of the seeding device is an excellent engineering and technical solution. Unlike chain, it does not require maintenance or adjustments. 10. Installed seed sowing controller of each section, counter of hectares per shift, counter of hectares of total area, sowing speed, sowing distance (cm) in average of all rows or each row separately. 11. Disc sets for different crops. 12. Availability of wheel and disc cleaners. 13. The use of a hitch in the design of the unit makes it possible to easily aggregate and transport two separate planters. 14. Central vacuum in sowing devices. 15. The seeding machines are equipped with double selectors for dumping excess grain and avoiding the sowing of duplicates - a guarantee of a high yield and low costs for thinning seedlings. 16. Depth control wheel tires create less pressure near the opening disc. Their
rubber easily deforms when hitting an obstacle without disturbing the seeding depth. 17. Depth control wheels have independent suspension. 18. Agglomerate bushings with self-lubrication do not require maintenance and have an extremely long service life; 19. The adjustable pressure spring of the sowing section provides a force of up to 180 kg; 20. Two-disc coulters with a large diameter of 420 mm and a thickness of 4 mm create an excellent sowing furrow in any conditions; 21. Super Sealtm coulter bearings combine maximum protection in adverse conditions with ease of maintenance; 22. Coulter discs have intermediate spacer washers to compensate for gaps caused by normal wear; 23. Wear-resistant coulter cleaners from Widia provide high-quality cleaning from sticky soil; 24. Cardan drive of the Synchro MotionTM dosing device, in comparison with the traditional chain transmission, does not require daily lubrication and is characterized by high reliability; 25. A reliable seed dosing system with large-diameter dosing discs provides unparalleled accuracy; 26. The system with two
wheels depth control allows you to continuously adjust the sowing depth up to 12 cm using the handle; 27. Two closing V-mounted
closing wheels have 2 positions and 4 pressure settings. 28. Each Sowing section is equipped with a split wavy disc "Turbo" and an adjustable element pressure spring. 29. Simple transition to another crop by changing the dosing discs. It is possible to sow using zero technology by installing opening disks and additional springs to increase the coulter pressure.
