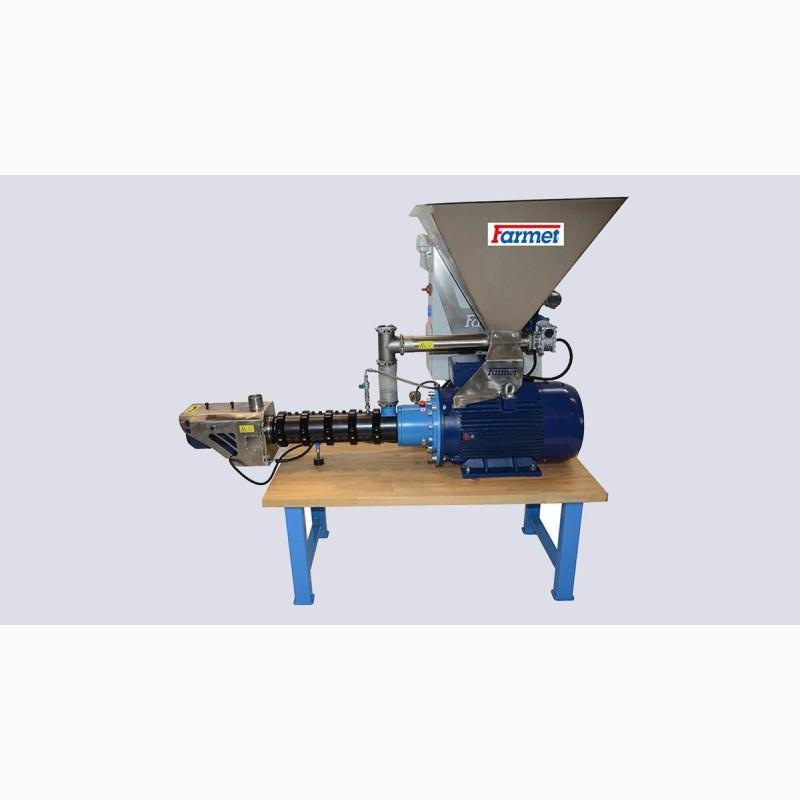

Extruder FE 100, Dnepropetrovsk region.

Extruder FE 100 is the basic model of our standard rangeextruders. Despite its size, there is a wide range of possibilities for its use in the production of fodder. The extruder is able to compress the material in the working chamber under high pressure and heat it to a high temperature, and this ability is widely used in many feed production technologies. The extrusion process makes it possible to eliminate many anti-nutrients from feed, to change the texture of feedкорма, to ensure its expansion and sterilization. In the production of fodder for ruminants, extrusion allows to increase the content of bypass protein. As a result of extrusion processing, the taste quality of feed improves and its nutritional value increases.

We offer options for dry and wet extrusion, the line can also be supplemented with a steam conditioner FK 100.(//tractor-service.com)

The heart of the extruder is its working mechanism, which can work in wet or dry extrusion mode. It consists of closed chambers through which a screw with friction elements passes, with the help of which the material in the chambers is compressed, intensively mixed, kneaded and heated by friction. Behind the working mechanism is a shaft support fixed on a fixed frame. The extruder drive is provided by an electric motor, its power is optimized in such a way as to simultaneously cover a wide range of processed materials and ensure low energy consumption of production. An integral part of the machine is a conveyor-doser with a smooth adjustment of revolutions, which allows you to continuously dose the material. The case serves to retain dust particles and is undoubtedly an aesthetic element of this machine.

The FE 100 extruder is intended for small production, its productivity reaches 2.2-4.8 t/day. In the standard version, it is made for connection to an electrical network that meets the EU specification, but the wiring can also be adapted to the requirements of local markets (USA, Canada...). There are 3 possible wiring options, in which the frequency converter of the conveyor-doser is always present, and it is possible to order a frequency converter for the main drive, which will expand the possibilities of optimization of the extrusion process. Power of the electric motorthese extruders - 15 kW.
