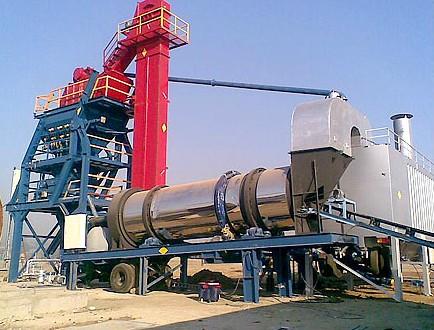

Mobilny Asfaltobetonny Zavod Sinosun 120 Tn/h, Kyiv

Specification of the plant:

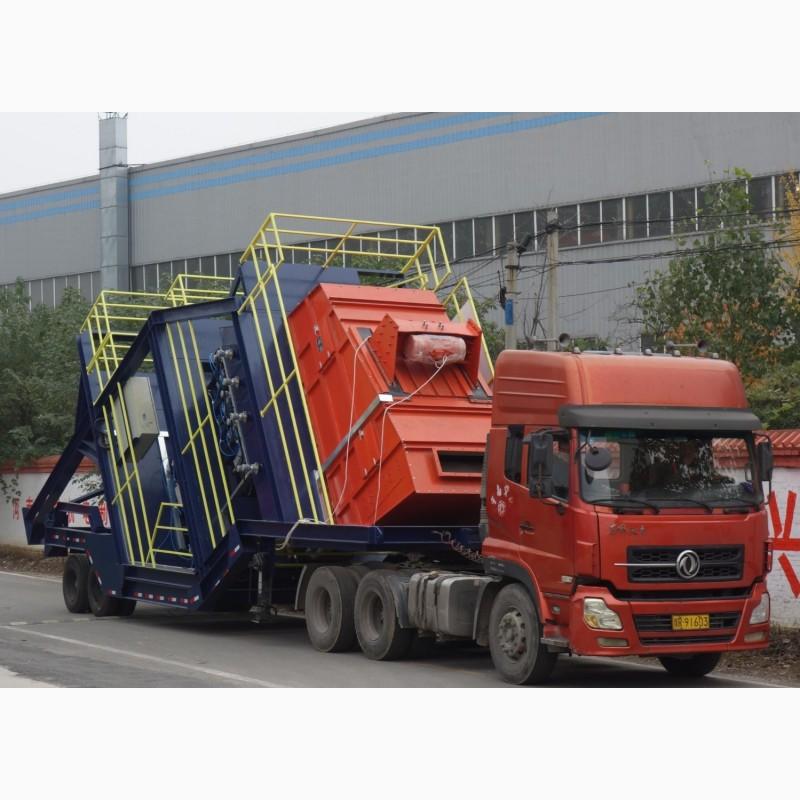

1. Mobile Aggregate Supply System
◆ The hopper for storing the unit and the collective tape feeder are mounted on one mobile chassis.
◆ Tape feeder, which has a frequency converter, with adjustment of a large range of speeds, so it can work smoothly and efficiently. There is a vibrator on the wall of the bunker, which prevents blocking.
Bunkers for unit storage Quantity - four
Capacity bunkers 6.5 m3/each,
Frequency control (Germany) Siemens.

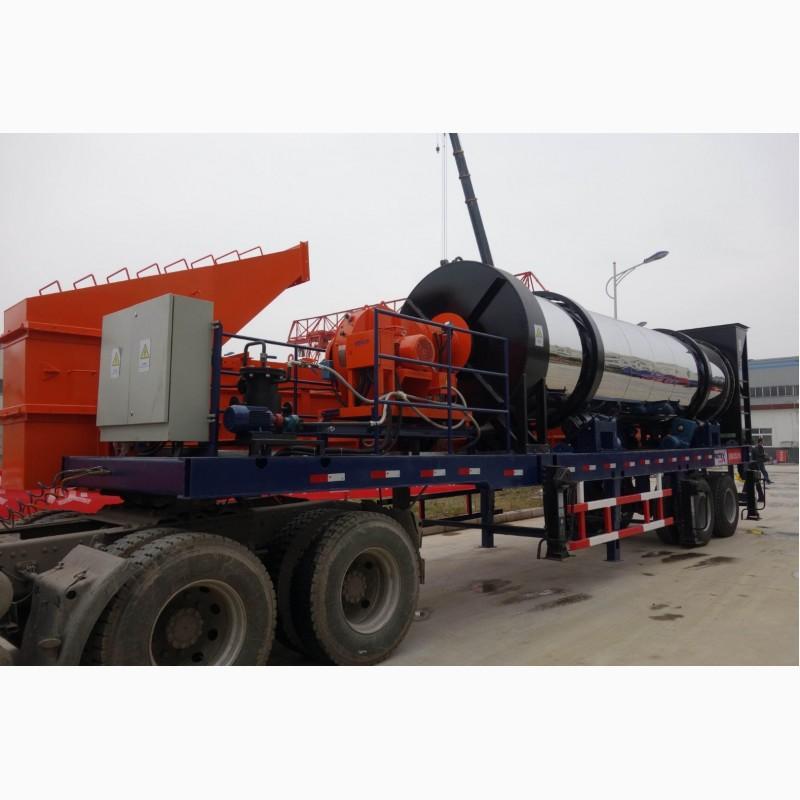

2. Mobile drying drum with a burner and a lifter
The mobile drum drum has 4 friction wheels, which are driven by four synchronous motors. It works smoothly, with a low noise level.

◆The liquid fuel burner has multifunctional devices for the use of fuel oil and diesel.

Drying Drum Diameter Φ 1800 mm× 7900 mm
The thickness of the boiler room steel is 14 mm.
Insulation thickness 50 mm mineral wool insulating layer, stainless steel coating

Max. capacity 140 t/h (unit humidity: 3%)
HotElevator
Capacity 140 t/h

Liquid fuel burner (Diesel, fuel oil)
Type and brand FRD China or Ebico (Italy)
Spraying fuel Sprayer - high-pressure fuel pump
Fuel consumption 750 kg/h

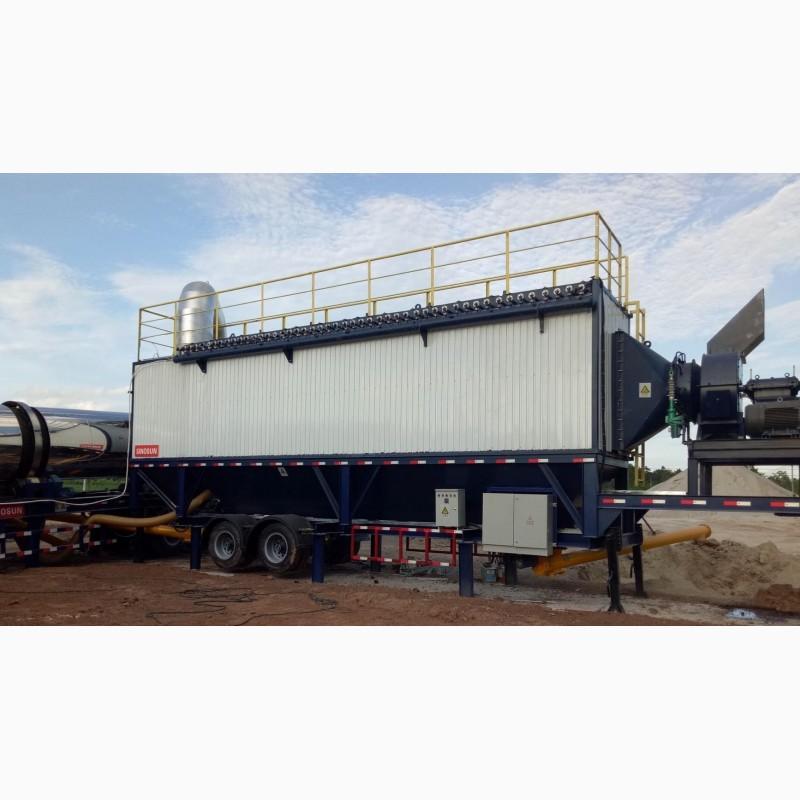

3. Mobile dust removal system
This dust collection system is equipped with a primary cyclone dust collector
◆. The secondary dust collection system is a bag filter. The bags use material with high heat resistance - Nomex (USA).

Secondary sleeve filter
The area of the filter is 550 m2
Bags USA, Nomex

Air flow capacity 46,000 m3/h
Ringelmann smoky blackness Ⅰ
Air emissions ≤ 20 mg/Nm³

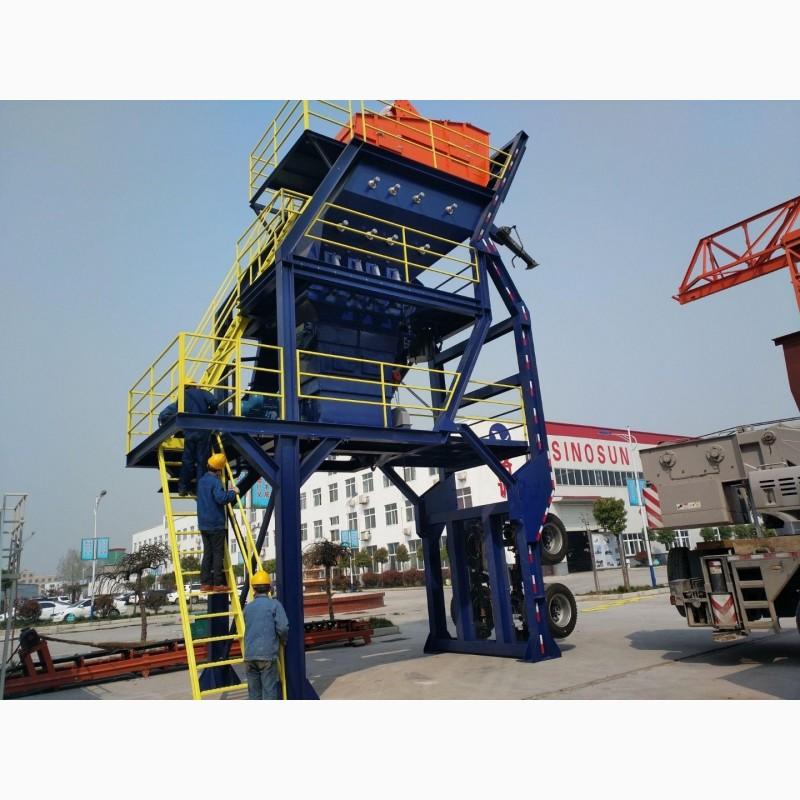

4. Mobile mixing tower
◆ Vibroscreen produced by the Italian company OLI, stable amplitude.(//tractor-service.com)
◆ Weighing sensor – USA Mettler Toledo.

Screening area 21.8 m2
Bunker for storing hot aggregate
Bunker for storing hot unit 4 pcs.
Overflow hopper 1 pc.
Level indicator 8 pcs. (4 High Level, 4 Low Level)
AGG weighing sensor (Mettler Toledo, USA)

Mixer

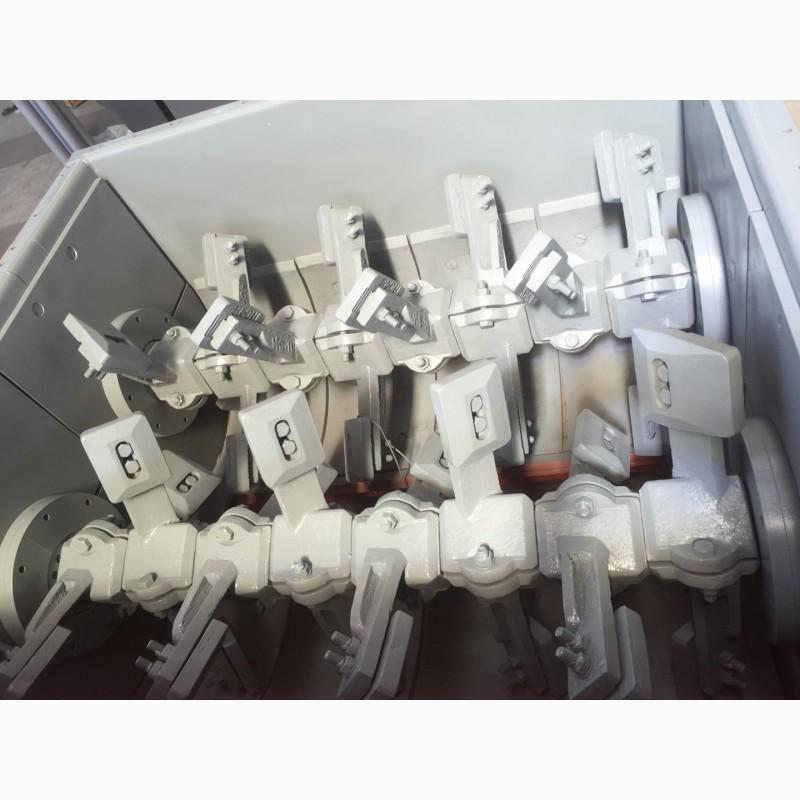

Mixer type Asphalt mixer with two shafts
Capacity 1500 kg/lot.
Bituminous spray pump
Power 7.5 kW

Pneumatic System
Air compressor 4.9 m³/min, 190
Воздушный баллон 1000 L

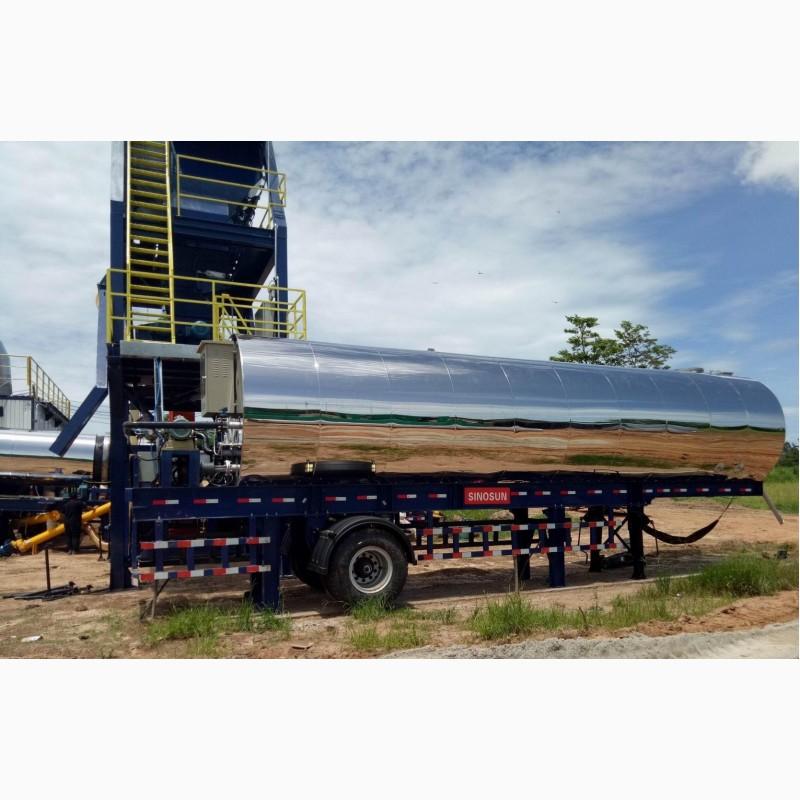

5. Electroheating bitumen system * Heating system
◆ The capacity is: 30 tons.
◆ The bitumen tank can be mobile or stationary (option)
Insulation - 50 mm mineral wool insulating layer, stainless steel coating.
Bitumen recycling pump, pipes, valves.

6. Mobile Control System - Russified
The computer control system uses advanced electronic components from Germany Siemens, which ensure reliability and durability.

7. Mobile system for supplying and storing mineral filler
Filler silo: 30m³
Level indicator (Upper-Lower, level indicator)
Screw filler conveyor, Φ219, power: 2x4kW

Warranty 15 months.

Options:
Ebico brand burner (Italy)
Bitumen tank: 40 T stationary
Mobile bituminous tank: 30 T
Additive system for SHMA.
