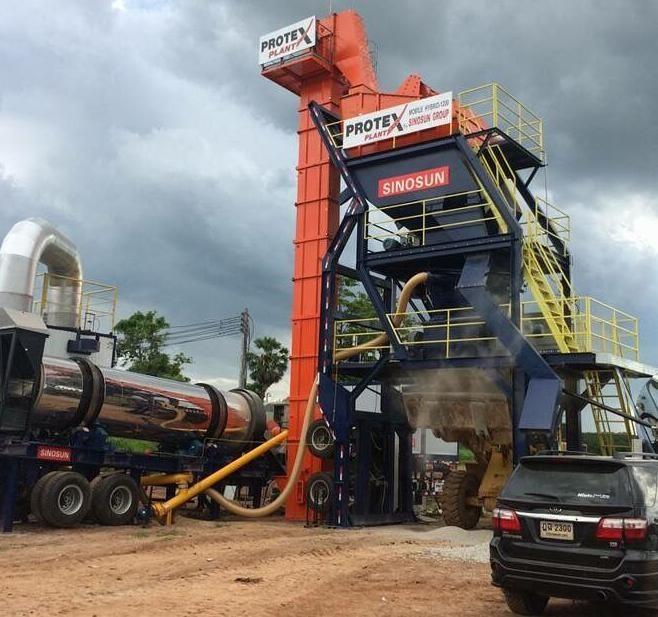

Mobile Asfaltobetonny Zavod Sinosun MAP1300 104 T/h, Kyiv

Company Sinosun is a manufacturer high-quality, technological and modern asphalt concrete equipment.
The manufacturer actively cooperates with international companies working in this industry.
The best European options are used as the basis of its equipment.

Factory specification:
1. Mobile Aggregate Supply System
◆ The hopper for storing the unit and the collective tape feeder are mounted on one mobile chassis.
◆ The tape feeder, which has a frequency converter, with adjustment of a large range of speeds, works smoothly and efficiently. There is a vibrator on the wall of the bunker, which prevents blocking.

Bunkers for unit storage Quantity - four
Bunker capacity 6.5 m3/each,
Frequency control (Germany) Siemens.

2. Mobile drying drum with a burner and a lifter
The mobile drum drum has 4 friction wheels, which are driven by four synchronous motors. It works smoothly, with a low noise level.
◆The liquid fuel burner has multifunctional devices for the use of fuel oil and diesel.

Drying Drum - Diameter Φ 1500 mm× 7000 mm
The thickness of the boiler room steel is 12 mm.
Insulation thickness 50 mm mineral wool insulating layer, stainless steel coating
Max. capacity 104 t/h (unit humidity: 3%)

HotElevator
Capacity 104 t/h
Liquid fuel burner (Diesel, fuel oil)
Type and brand FRD China or Ebico (Italy)

Spraying fuel Sprayer - high-pressure fuel pump
Fuel consumption 650 kg/h

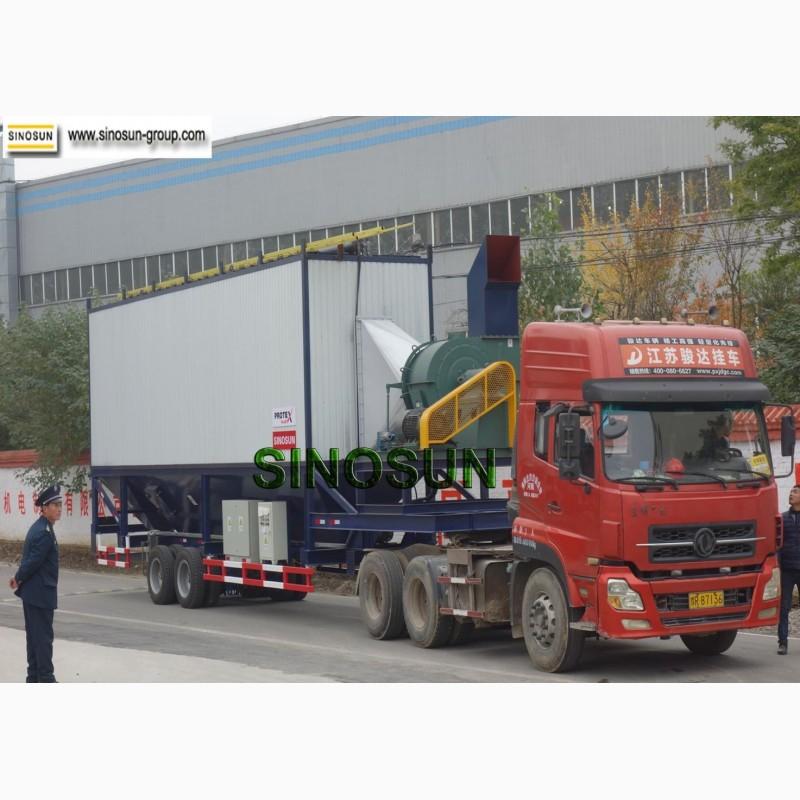

3. Mobile dust removal system
This dust collection system is equipped with a primary cyclone dust collector
◆. The secondary dust collection system is a bag filter. The bags use material with high heat resistance - Nomex (USA).

Secondary - sleeve filter
The area of the filter is 410 m2
Bags USA, Nomex

Air flow capacity 34,000 m3/h
Ringelmann smoky blackness Ⅰ
Air emissions ≤ 20 mg/Nm³
(//tractor-service.com)
4. Mobile mixing tower
◆ Vibroscreen produced by the Italian company OLI, stable amplitude.
◆ Weighing sensor – USA Mettler Toledo.

Screening area 19.8 m2
Bunker for storing hot aggregate
Bunker for storing hot unit 4 pcs.
Overflow hopper 1 pc.
Level indicator 8 pcs. (4 High Level, 4 Low Level)
AGG weighing sensor (Mettler Toledo, USA)

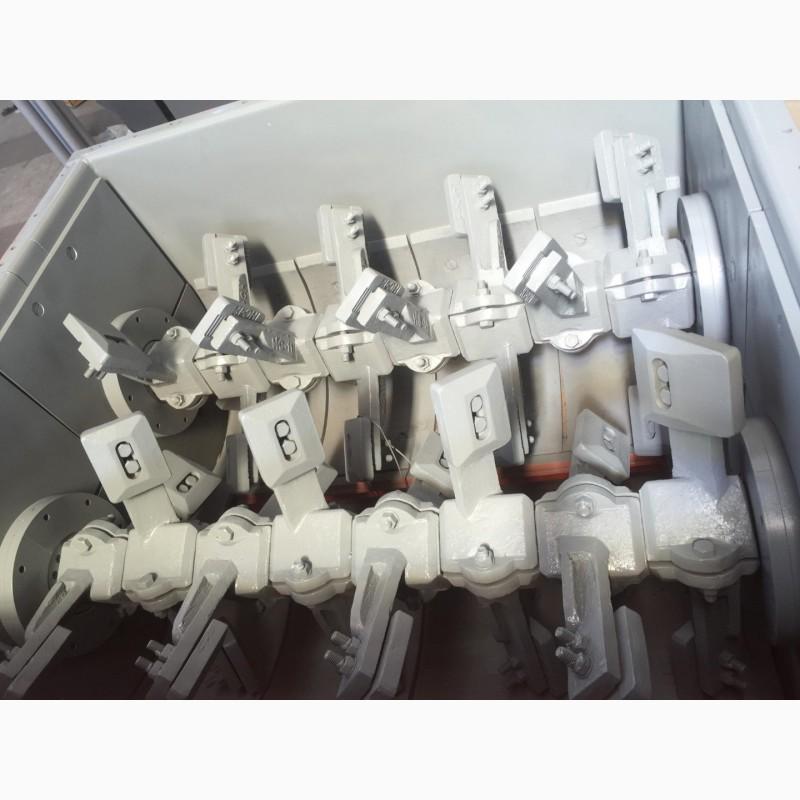

Mixer
Mixer type Asphalt mixer with two shafts
Capacity 1300 kg/lot.
Bituminous spray pump
Power 7.5 kW

Pneumatic System
Air compressor 3.7 m³/min,
Air cylinder 1000 L

5. Electroheating bitumen system * Heating system
◆ The capacity is: 30 tons, mobile
◆ The bitumen tank can be mobile or stationary (option)
Insulation - 50 mm mineral wool insulating layer, stainless steel coating.
Bitumen recycling pump, pipes, valves.

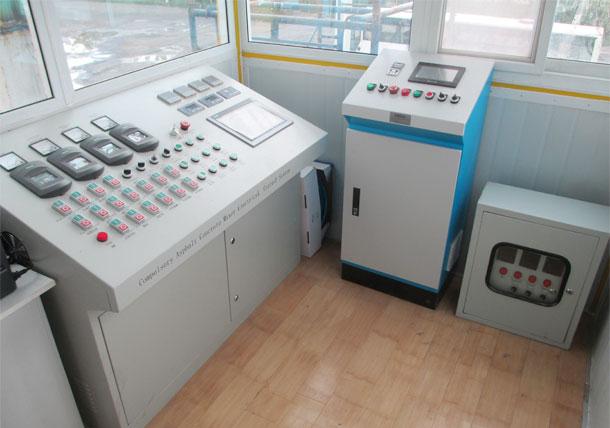

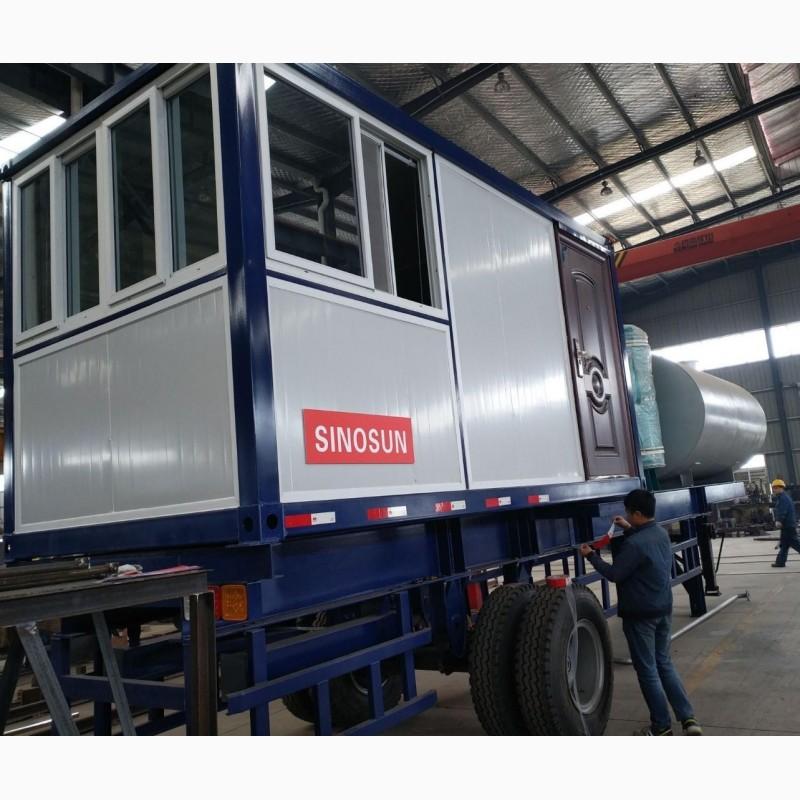

6. Mobile Control System - Russified
The computer control system uses advanced electronic components from Germany Siemens, which ensure reliability and durability.

7. Mobile system of supply and storage of mineral filler
Filler silo: 30m³
Level indicator (Upper-Lower level indicator)
Screw filler conveyor, Φ219, power: 2x4kW

Warranty 15 months.

Options:
Ebico brand burner (Italy)
Bitumen tank: 40 T stationary
Mobile bituminous tank: 30 T
Additive system for SHMA.
