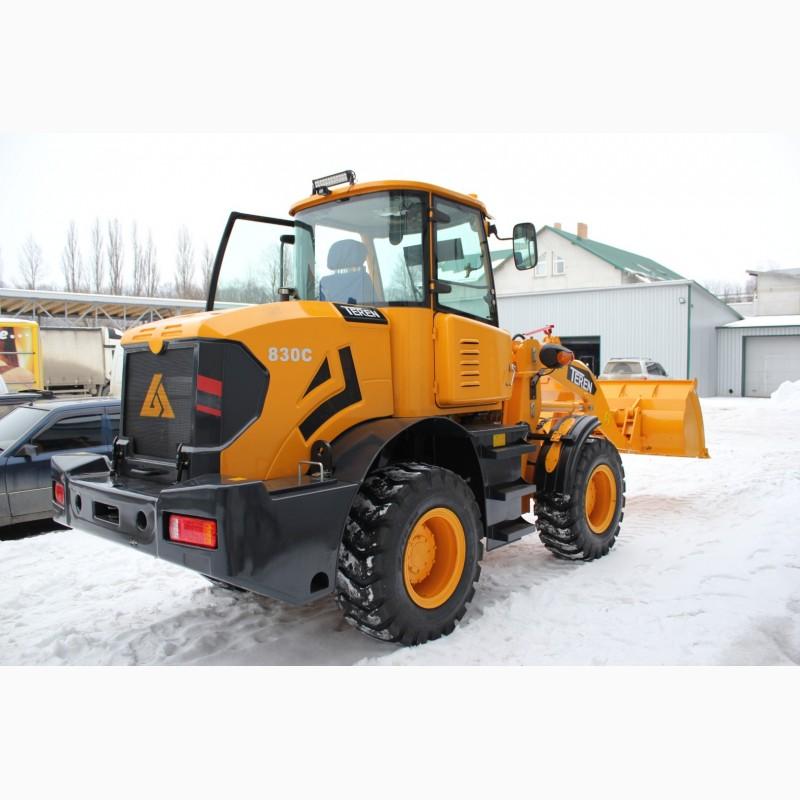

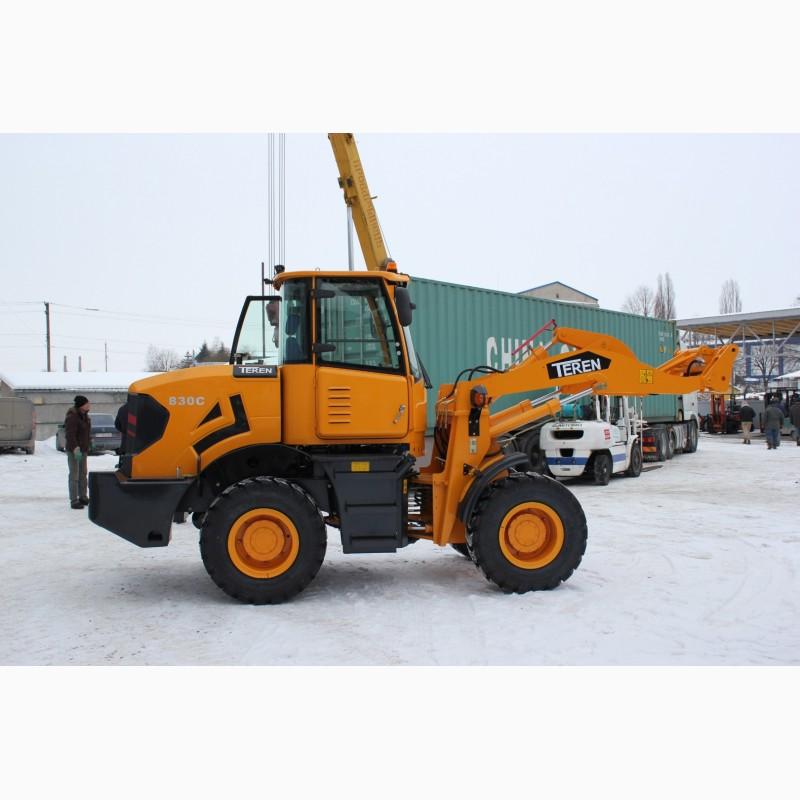

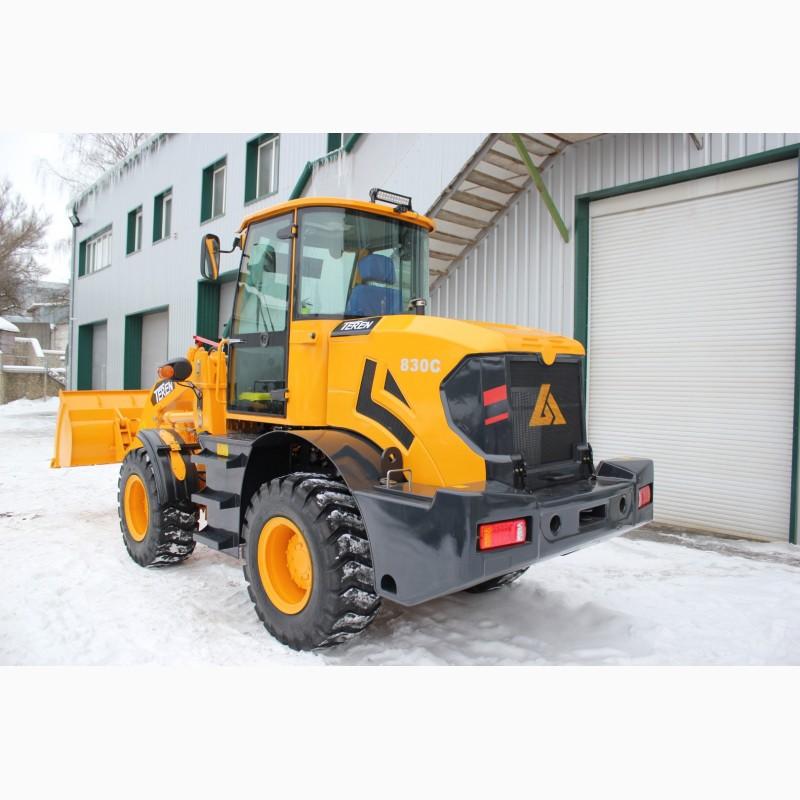

FRONT LOADER model: 830С
GENERAL INFORMATION
Length 5990
Height 2860
Width 2040
The maximum load capacity is 1800 kg.
Operating mass 5270 kg
GENERAL CHARACTERISTICS
Engine
Model Yunnei 490
Nominal power 42 kW, 2650 rpm
The maximum torque is 147Nm
Engine volume
Transmission
Drive type 4x4
Gearbox type Automatic
The maximum speed is 25 km/h.
Number of gears 2 forward 2 backward

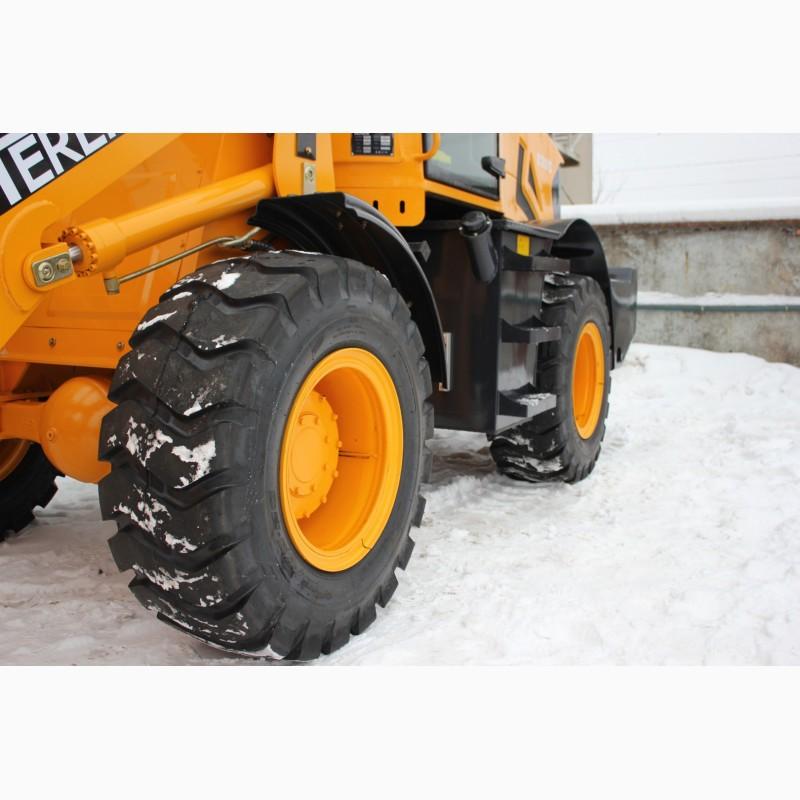

Tires
(//tractor-service.com)
Tire size 20.5-16
Pressure in the tire 0.3/0.28 Mpa
Steering system
Type hydraulic drive
The turning angle is 25.4o in each direction.
The minimum turning radius is 5540mm

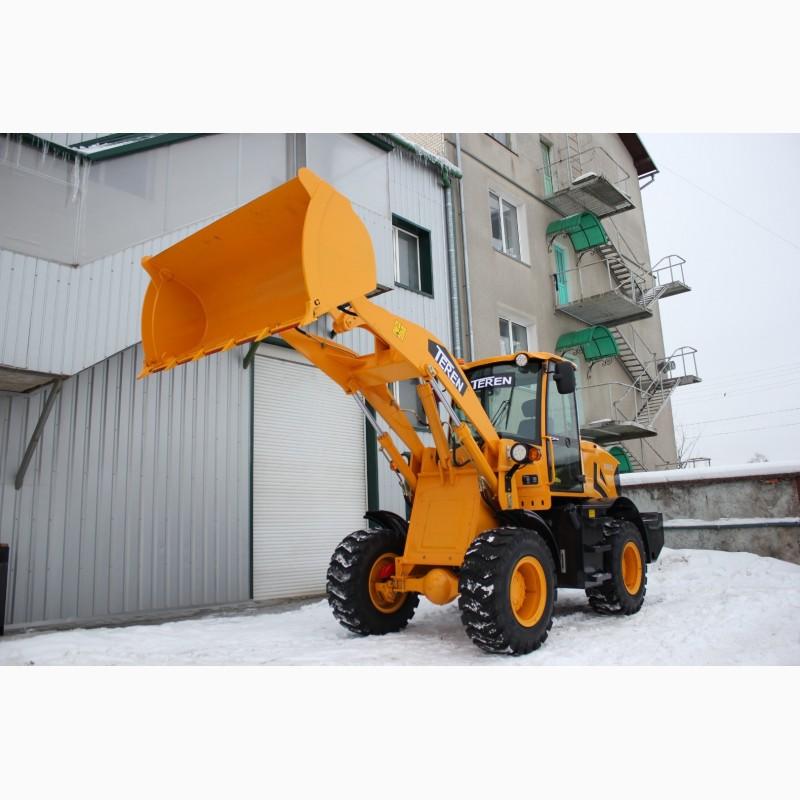

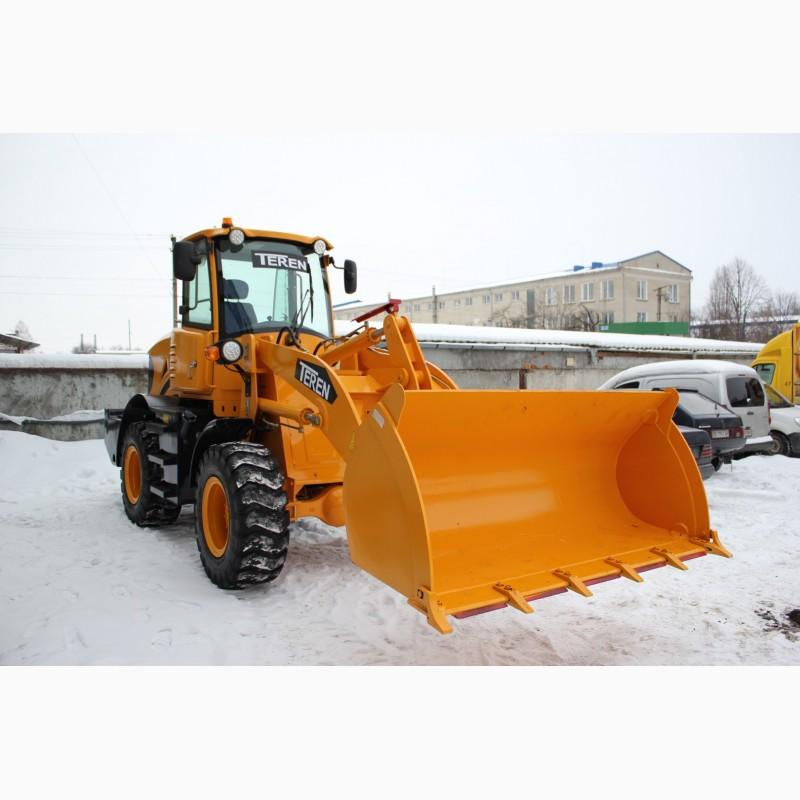

Ladle
Bucket volume 0.6m3
The maximum lifting height of the bucket is 3870 mm.
The unloading height of the bucket is 2800 mm.
Bucket unloading distance 850mm
Brake system
Working brakes - Disc vacuum brakes operating on 4
wheels
Parking and emergency brakes-Disc rear, manual caliper
Filling volumes
Fuel tank 80 l
Hydraulic system60l
Additional equipment
Engine: quanchai490, xinchai490 (Euro 3)
Fast clutch, conditioner, pilot control, fork for pallets, 4 in 1 bucket, mixing bucket.
