ISM, Separating machine, cleaning and calibration of small seeds, from the developer, Kharkiv region.

This is really the best car today!

ISM is a machine that processes and calibrates grain according to the variety with the highest indicators. The designs of nodes represent the latest technological achievements in grain processing.
Accuracy of seed calibration guarantees 98% germination of grain after sowing.

It is the weight, not the size, that is the main indicator of the integrity and biological value of the seed. Sifting injured, weak and chopped grains - separation by weight, makes it possible to select heavy, dense, maximally nutrient-rich grains, ensuring a good harvest for its owner.

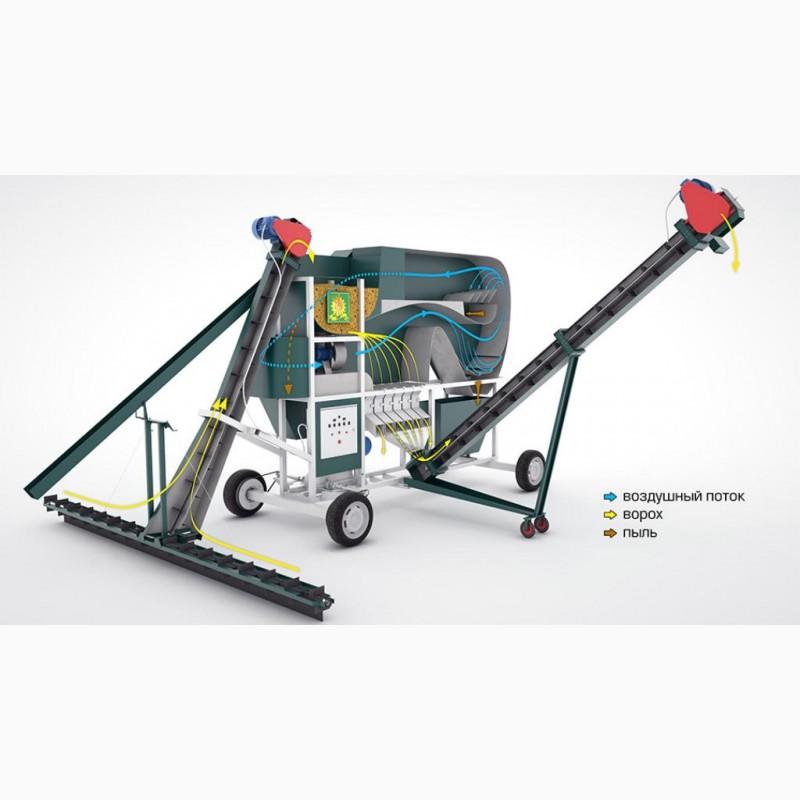

The most important feature of the Gridless aerodynamic separator for cleaning grain is the air flow shaper - a direct-flow fan.

Advantages:
- differences in air supply technology saves electricity 3 times;
- ease of use (minimum number of buttons on the control unit);
- air flow control allows you to adjust the flow to the required culture;
- due to the created injection in the separation chamber, the quality of calibration is increased, the grain similarity of even small-seeded crops (mustard, rapeseed, flax, etc.) is 98%;
- absence of a "snail", an air flow compressor, which must be periodically cleaned;
- the weight of the machine is reduced by 40%, compared to others.

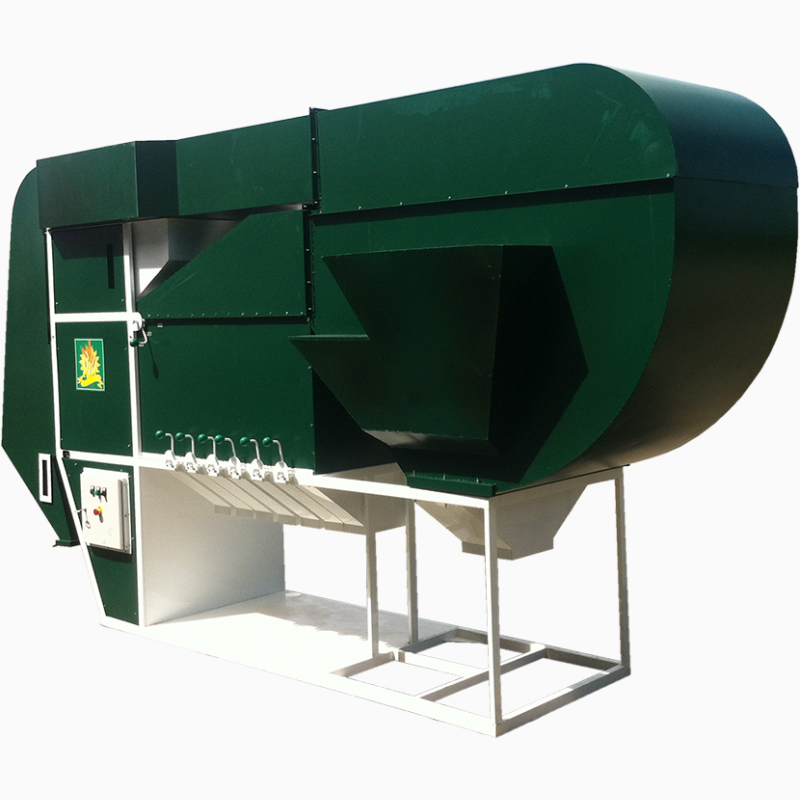

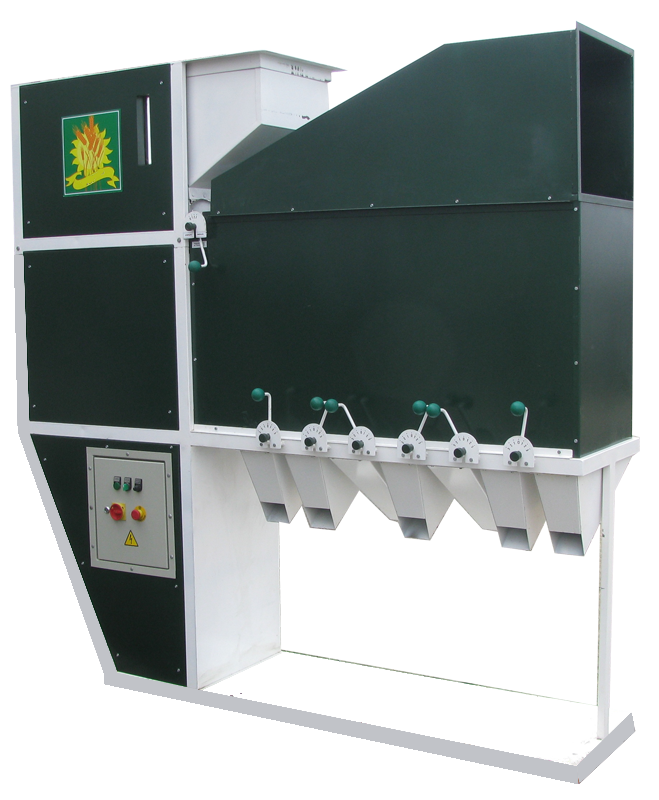

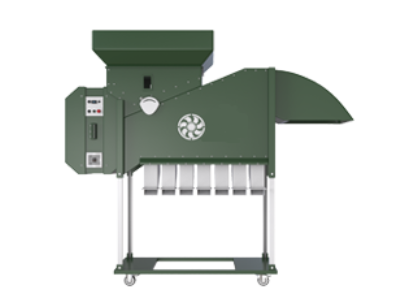

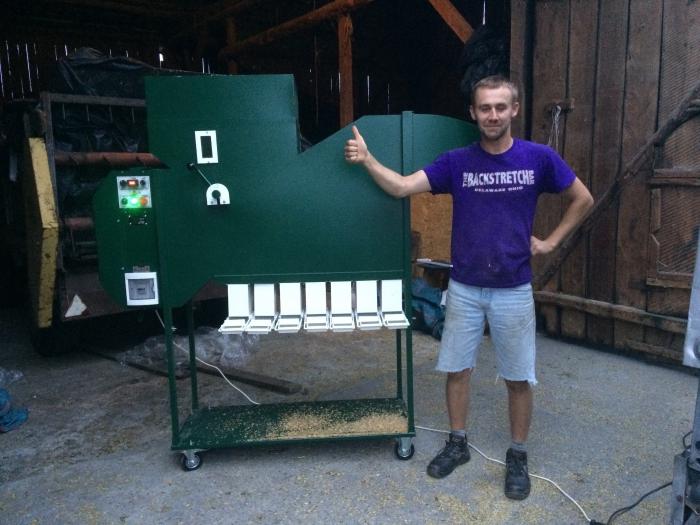

ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sedimentation chambers, designed to clean the air circulating in the separator from dust);

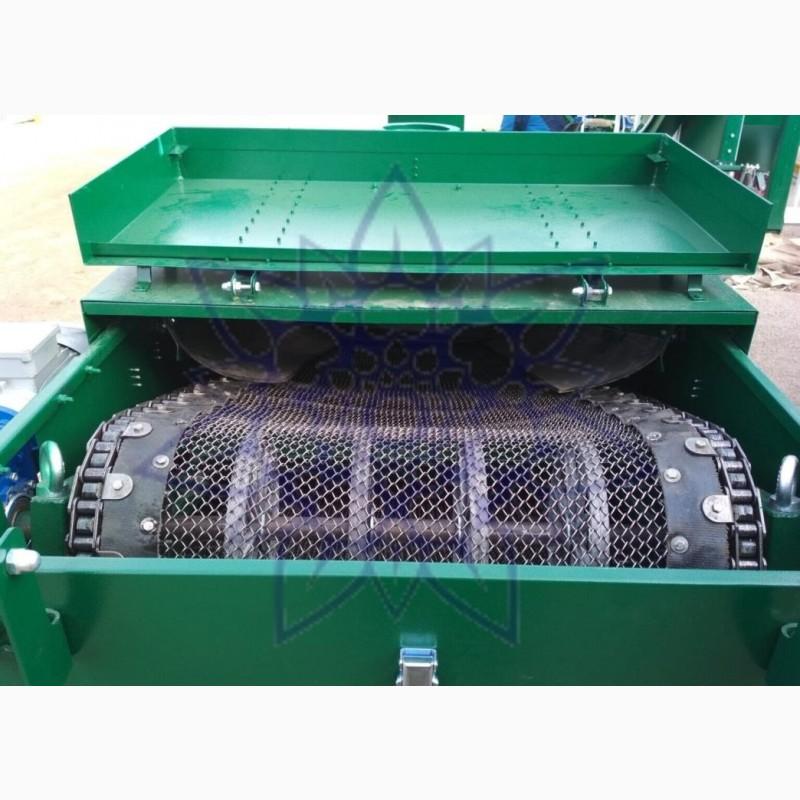

APO – pre-cleaning unit (recommended for heavily “clogged” seed material, works in tandem with ISM and SOK machines);
SOC - self-moving cleaning complex, five in one (replaces ZAV).

Prices for March 2023, from now on - check by phone!

- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. 65,000 UAH.;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg., dimensions d.3200/w.1000/h.2000mm., 220V/380V - c . UAH 132,500;

- ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions l.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380V - ts. UAH 139,400.;

- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm., c. 125,000 UAH.;
- ISM-15 Tsok, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg, dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500;

- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg., dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500. ;
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 206,800;(//tractor-service.com)

- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg., dimensions d.2310/w.650/h.2400mm., c. UAH 149,700.;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 225,400;
- SOK-25 c. UAH 520,000;
- SOK-30 c. UAH 530,000;

- APO-5 (productivity 5 t/h) c. UAH 80,800.;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.

Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. UAH 600;
- setwheels for ISM-5, ISM-10, c. UAH 700;
- connector for a 150 mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- connector for a 150 mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. UAH 960;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- mesh (sieve) up to APO-5 (6,8,10,12,14 mm and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.

There is a state compensation program.
The price of the machines can be changed.

Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video Unitpre-cleaning of grain APO:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI
