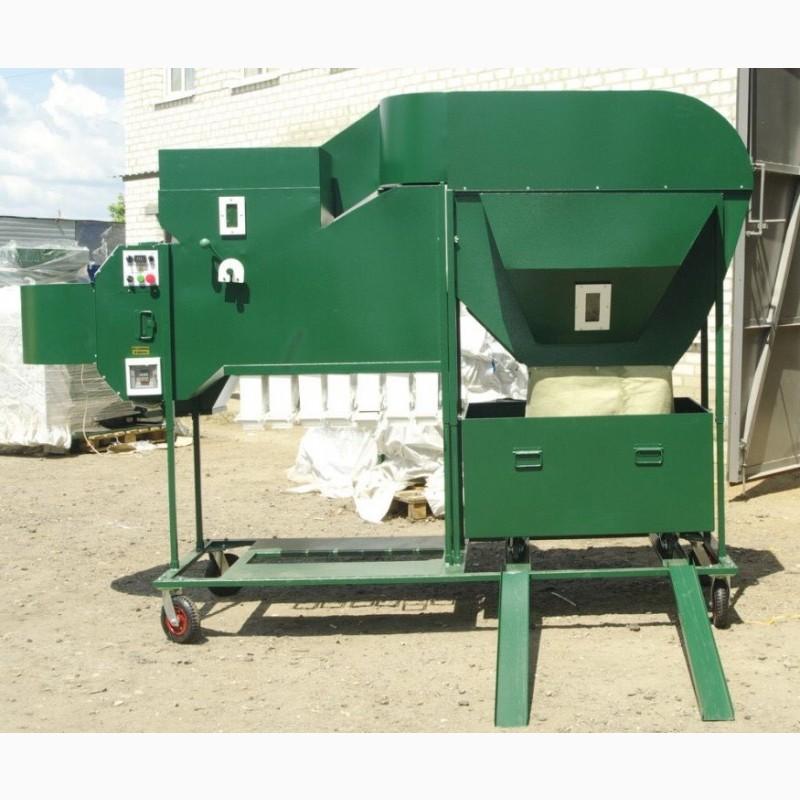

ISM-5 grain separator with cyclonic sedimentation complex. Cleaning and calibration of any seeds, Kharkiv region.
Region:all of Ukraine,
Kharkov region.
(Kharkiv)
Impeller separator machine.
Cleaning and calibration of any grain.
Characteristics when working with wheat grain:
Cleaning 5 tons per hour.
Calibration up to 3 tons per hour.
Productivity per second grain may be less, depending on the type of grain and its contamination.
The operation of the machine is reduced to changing the trajectory of the free fall of the "grain" by the air flow created by the block-impeller, and the further distribution and division of the initial material into fractions depending on the mass, size and shape.
The aerodynamic separator can work in 4 modes:
- preliminary cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).
Optimization of energy consumption.
The machine can work on 220V or 380V (according to your order)
Weight 180 kg.
Overall dimensions: 176
- длина 3,2 м.
- width 1.0 m.
- height 2.0 m.
ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sediment chambers, designed to clean the air circulating in the separator from dust);
APO – pre-cleaning unit (recommended for heavily “clogged” seed material, works in tandem with ISM and SOK machines);
SOC - self-moving cleaning complex, five in one (replaces ZAV).
Prices from March 2023 onwards - check by phone:
- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg, dimensions d.3200/w.1000/h.2000mm., 220V/380V - c. UAH 132,500; 190
- ІСМ-10, очистка 10т/год, калібрування до 5т/год, 0,2-0,75кВт, 50Гц,, вага 165кг., габарити д.2420/ш.460/в.1880мм., 220В - ц. 72000 грн., 380В - 75000 грн.;
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. UAH 139,400.;
- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm, c. UAH 125,000;(//tractor-service.com)
- ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg., dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500;
- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm., c. 206,800 UAH.;
- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg., dimensions d.2310/w.650/h.2400mm., c. UAH 149,700;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 225,400;
- SOK-25 c. UAH 520,000;
- SOK-30 c. UAH 530,000;
- APO-5 (productivity 5 t/h) c. UAH 80,800.;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.
Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. UAH 600;
- setwheels for ISM-5, ISM-10, c. 700 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. UAH 960;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. 13,500 UAH.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.
The state compensation program is in effect.
The price of the machines can be changed.
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video Unitpre-cleaning of grain APO:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI
