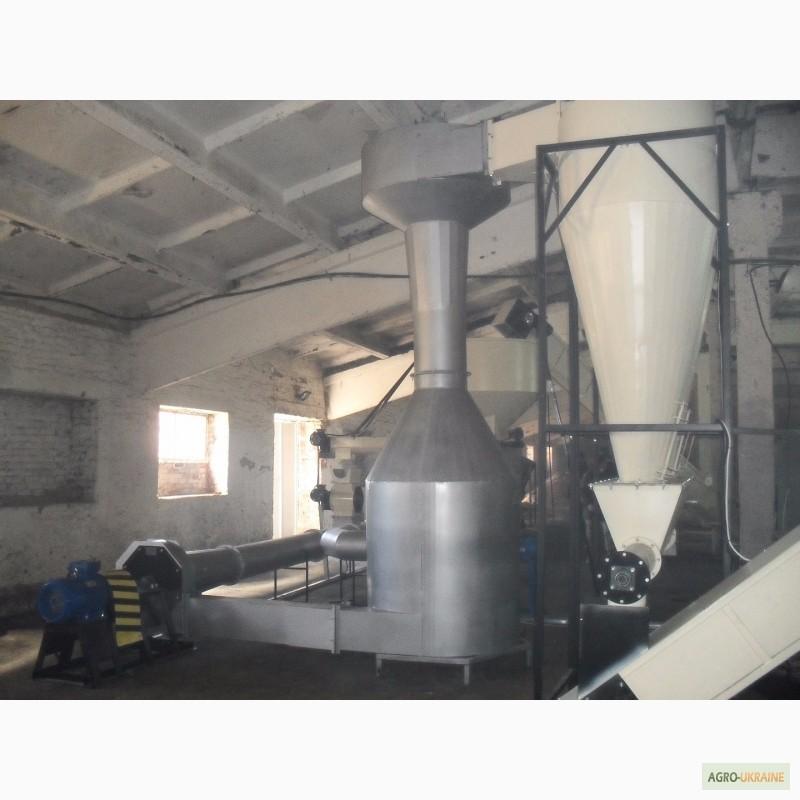

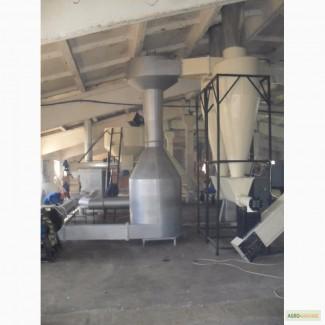

TSU-K drying complex
(thermal drying unit-combined)

Purpose: Thermal drying unit TSU-K, convective type, continuous operation, intended for drying crushed raw materials (chips, sawdust, milled peat) to the required humidity parameters (10%, adjustable), in production lines:
- fuel pellets, wood pellets (Wood Pellets); 160
- шнековых брикетов (Pini-Key);
- impact mechanical (NESTRO) and hydraulic briquettes (RUF).
Principle of operation: Wet ground raw material (wood sawdust, sawdust, shavings) is fed into the pre-drying zone of the acceleration pipe of the TSU, where the drying agent is sent from the heat generator. The drying agent is a mixture of air with a heat agent produced by a pyrolysis type heat generator and cleaned of ash residue in a cyclone unit. Further raw materials (wood shavings, sawdust, milled peat), in the flow of a high-speed drying agent (25-30 m/s), through the pneumatic transport system, enter the vortex drying chamber, where the rotary movement begins. High peripheral speed of movement of raw material and drying agent, friction of raw material particles between themselves and against the walls of the drying chamber, create conditions for activation of thermal and hydrodynamic regimes and ensure uniform drying of raw materials. Through a separate pneumatic pipe, fresh drying agent is supplied to the zone of the vortex chamber, which contributes to the intensification of the drying process of the raw material, the reduction of the time it stays in the drying chamber (up to 10s) and the increase in productivity. As it dries, the dried raw material (sawdust, shavings, peat) is ejected in a vertically directed flow into the cyclone-separator block. In the cyclone-separator, the coolant saturated with vapors is thrown into the atmosphere through aspiration, and the dried raw material is released through the sluice gate for delivery to the granulation, briquetting (packaging, storage) site.
Sawdust drying line kit (basic TSU-K kit):
1. Solid fuel heat generator 1 MW – 1 pc.;
2. Fuel supply hopper (chips, pellets, granules) - 1 pc;
3. Block of drying agent - spark arrester - 1 pc;
4. Cleaner for drying agent - 1 pc;
5. Turbo pipes (set);
6. Gate valve - 1 pc; 170
7. Вентилятор ВРП 5 – 1 шт;
8. Vortex drying chamber (set);
9. Adapters (set);
10. Cyclone-separator right - 1 pc;
11. Cyclone-separator left - 1 pc.;(//tractor-service.com)
12. Control and control cabinet - 1 pc.

Technical characteristics:
- Productivity of the drying complex for dry raw materials up to 1000 kg/h;
- Humidity of input raw materials - up to 70%;
- The installed capacity of the drying complex is 25 kW/h;
- Fuel consumption (fuel chips, pellets, pellets) – 150-200 kg/h;
- Occupied area - up to 60 m2
All the necessary technical documentation is attached to each of the units and units of the sawdust dryer: operating instructions, layout diagram of the equipment.
If necessary, the dryer for sawdust, the TSU-K drying complex can be equipped with another technological equipment:
- Sawdust granulation line on the basis ofgranulator OGM - 1.5;
- Unit of mechanized supply of raw materials with a movable bottom;
- Scraper, belt, screw conveyors;
-Crusher hammer, a unit for crushing baled straw (straw cutter);
- Storage bunkers (silos).

LLC "EnergoBioResources" also provides additional services:
- technical audit of the object or equipment;
- preliminary drawing of the location of the equipment - 3D model;
- installation and commissioning;
- техническое сопровождение.
