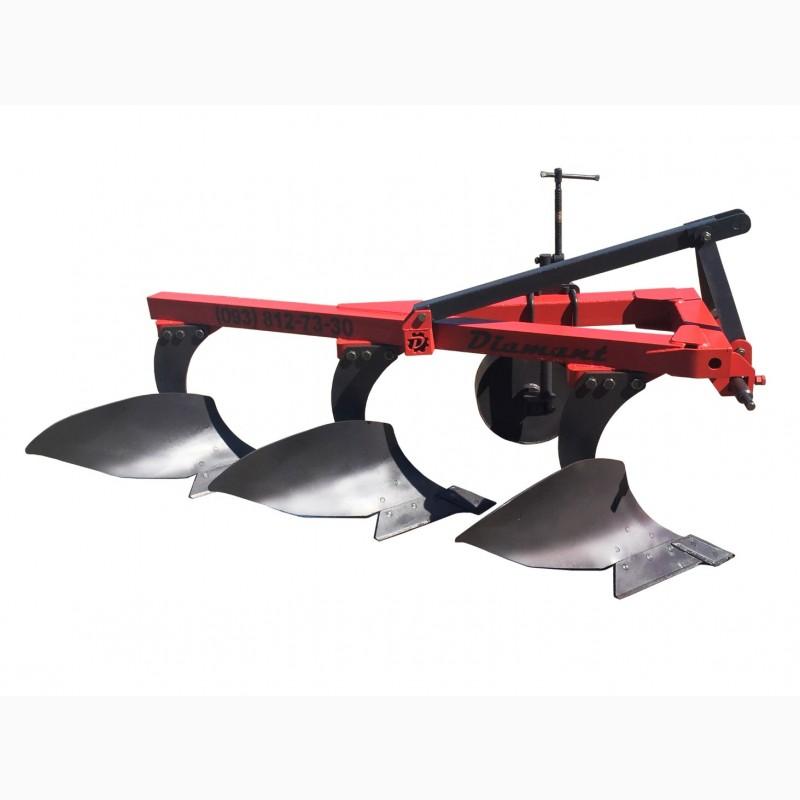

Plow 3-30 PLN (DPLN) with a screw blade (from 50 hp), Odesa region.

DPLN 3-30

Plow PLN 3-30 with enlarged screw blades on high racks.

The body of thisplow is made according to the drawings of an analogue ofGerman plows (reduced copy).

Pipe frame 100*100*6

The distance between the bodies is increased = 850 mm.(//tractor-service.com)

The height of the plow body = 745 mm (to prevent the plow from clogging with weeds and crop residues).

Plowing depth = 30 cm.

Weight of the plow = 260 kg.

It is aggregated with tractors: T-40, MTZ, YuMZ

When developing this plow, the weight category was maintained and the angle of attack of the hull was changed for maximum fuel economytractor (by reducing resistance and lifting the load), and reducing its motor resource. The screw blade turns the soil very effectively. A field plowed with such a plow has a flat, well-tilled surface and does not require additional processing.
