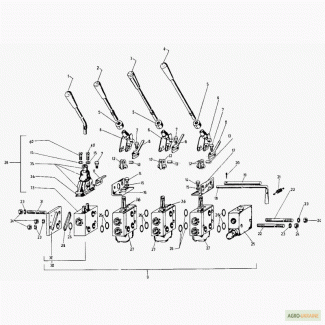

Command unit with distributor 348/2LLLM for Balkancar EV 687 loader, Kharkiv region.

Position No.
Catalog No.
Name
Pieces
HYDRAULIC SYSTEM

121625 7023 01.00.02
Command system with distributor 348/2LLLM
1
1
128058/128059/ 717.33 08.09.00
Lever with handle (assembled)
1
2
128065/128066/ 717.33 08.10.00
Lever with handle (assembled)
1
3
128067/128068/ 717.33 08.11.00
Lever with handle (assembled)
1
4
128069/128070/ 717.33 08.12.00
Lever with handle (assembled)
1
5
127372/127373/ 7023 1.00.09
Special nut
3
6
127992/127993/ 7023 10.01.00
Bracket (assembled)
3
7
109694/109695/ BDS 1230-72/5,6
Bolt M6x16-6d
4
8
120877/120878/ 7023 10.00.04
Cam II
3
9
113481/121841/ ON 04 62135-72
Hydraulic distributor 348/2LLLM
1
10
108417/108418/ BDS 832-63/5,6
Screw II M6x16
2
11
120874/120875/
Cam I
1
12
106862/1068063/ 676-4 01.01.03.00
Intermediate link (assembled)
6
13
104158 676-4 01.01.05
Here is the little one.
3
14
109692/109693/ BDS 1230-72/5,6
Bolt M6x12
4
15
103270/103271/ BDS 833-71
Spring washer 6H
6
16
127375 7023 01.00.02
Left bracket
1
17
127376 7023 01.00.03
Right bracket(//tractor-service.com)
1
18
120871 7023 10.00.01
Here is the curve
1
19
120872 7023 10.00.02
Here is a big one
1
20
116136/116137/ BDS 55-64
Cotter pin 2x18
1
21
104165 732 15.00.05
Spring
1
22
126148 12040 00.03
Pin BL=235
2
23
103264/103265/ BDS 833-71
Spring washer 8H
5
24
109151/109152/ BDS 744-72/5
Nut M8
5
25
_ 12006
Cover RK1
1
26
107639 12030 00.17
"O" ring 13x2.5
13
27
264019 12033 00.00
Double Action Section HY/SB1B4/5
3
28
269020 12016 00.00
Valve section HY/SB1C4A8/2
1
29
264021 12040 01.02
"O" ring 47x2.5
1
30
264022 12040 01.00
End cover (general view)
1
31
126655 12040 00.03
Pin AL=195
1
32
264023 12040 01.01
End cap
1
33
264024 12010 01.00
Valve section HY/SB1C4A1/
1
34
267025 12010 00.01
Plate
1
35
264026 12016 01.00
Command head
1
36
379094 12030 00.06
"O" ring 15x3
2
