Command system for the contactor control scheme of the EB 687 loader, Kharkiv region.

Position No.
Catalog No.
Name
Pieces

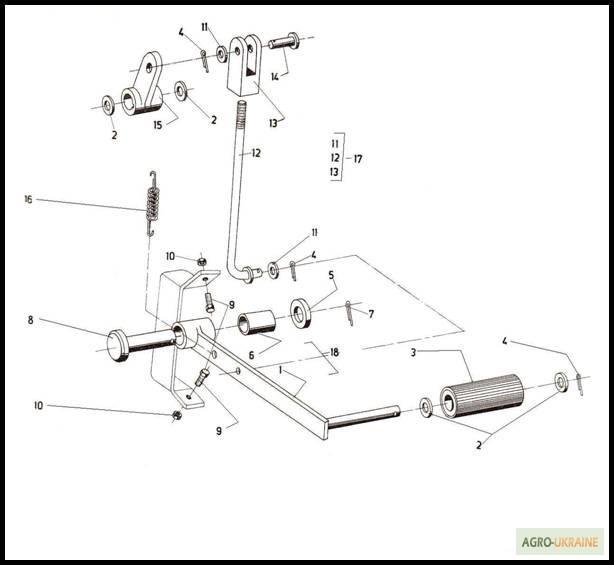

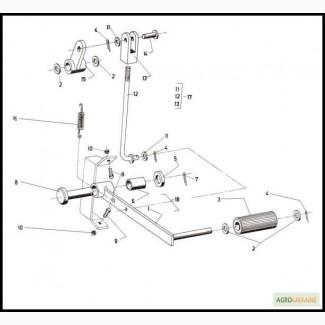

COMMAND SYSTEM FOR THE CONTACTOR SCHEME OF SPEED REGULATION

121241 687.33.8 04.00.00
Command system
1
1
121071/121072/ 687.33 04.01.01.00
Lever
1
2
103163/103164/ BDS 205-73
Normal washer NM10
4
3
111229/108305/ 602 08.00.03
Accelerator pedal
1
4
108310/108311/ BDS 55-64
Cotter pin 2x14
3
5
122515/122516/ BDS 206-75
Normal washer NM14
1
6
120210/120202/ 687.33 04.01.01
Bushing
1
7
109447/109448/ BDS 55-64
Cotter pin 4x25
1
8
123415/123416/ BDS 3048-72/5,6
Here is 14x55/50(//tractor-service.com)
1
9
108700/108701/ BDS 1230-72/5,6
Bolt I M6x25
2
10
109698/109697/ BDS 744-72/5
Nut M6
2
11
103169/103170/ BDS 206-73
Washer normal NM8
3
12
120441 687.33.8 04.01.01
Barbell
1
13
120472/120473/ 717.33.4 04.01.03
Fork
1
14
120908/120909/ BDS 3048-72/5,6
Here is 8x22/19
1
15
120478/120479/ 717.33.4 04.00.01
Lever
1
16
116056/116057/ 717.33 04.00.01
Spring
1
17
121243/121244/ 687.33.8 04.01.00
Rod (assembled)
1
18
121068/121069/ 687.33 04.01.00
Lever (assembled)
1
