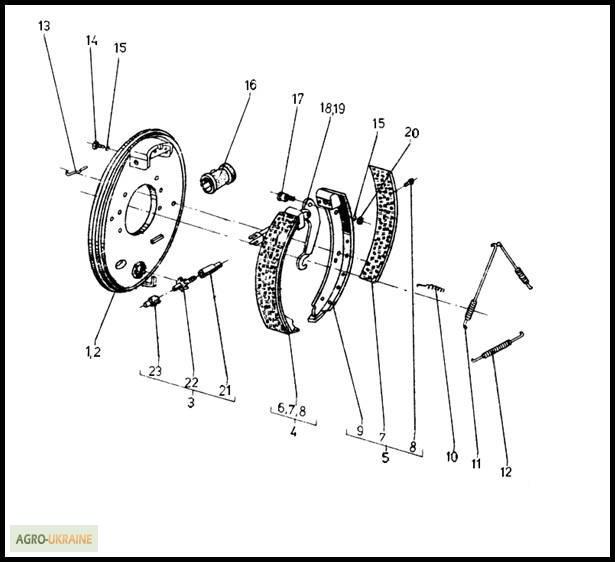

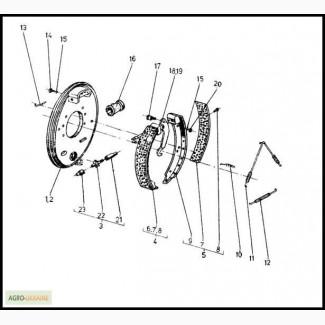

Transmission servobrake for EV 687 truck, Kharkiv region.

Position No.
Catalog No.
Name
Pieces

TRANSMISSION
Servobrake

185757 6975.1 00.00.00
Servo brake, right F190
1
_
185713 6976.1 00.00.00
Servobrake, left F190
1
1 1
_ 6975.1 07.00.00
Brake disc (assembled)
1
2 2
_ 6976.1 09.00.00
Brake disk (assembled)
1
3
184825 6971 05.00.00
Clutch mechanism
1
4
_ 6976.1 07.00.00
Brake pad (assembled)
1
5
_ 6976.1 03.0.00
Brake pad (assembled)
1
6
_
Brake pad
2
7
182368 6976 02.00.01
Overlay
1
8
_ 6976 03.00.01
Rivet
12
9
182374 6976 03.01.00
Brake pad
1
10
182367 6976 02.00.02(//tractor-service.com)
Locking spring
2
11
182363 6976 00.00.01
Return spring
2
12
182364 6976 00.00.02
Return spring
1
13
_ 6981 00.00.06
Lever
2
14
_ BDS 1230-72/8,8
Bolt I M6x16-8g
2
15
208120/208981/ BDS 833-82
Washer 2 6H
2
16
182373 6976 01.00.00
Double acting wheel brake cylinder KSCD-25A
1
17
182372 6976 00.00.03
Eccentric bolt
1
18 1
_ 6975 05.00.00
Lever (assembled)
1
19 2
_ 6976 08.00.00
Lever (assembled)
1
20
_ BDS 1269-73/5
Nut M8-7H
1
21
_ 6971 05.00.02
Bushing
1
22
_ 6971 05.01.00
Gear (assembled)
1
23
_ 6971 05.01.01
The sleeve is special
1
