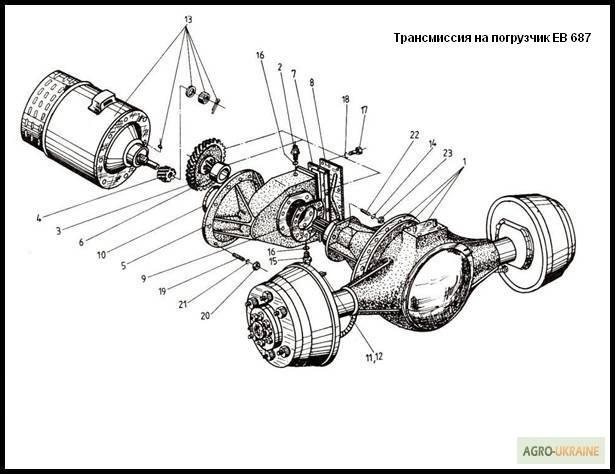

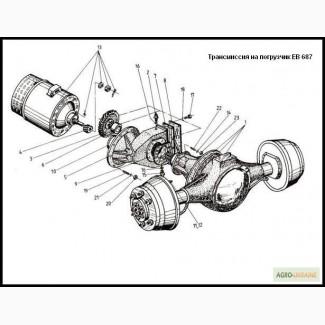

Transmission for EV 687 loader, Kharkiv region.

Position No.
Catalog No.
Name
Pieces
_
108574/101974 6833.1 00.00.00
Transmission
1
1
129363/284770 6187 00.00.00
Leading bridge
1
2
263985 6833 02.00.00
Plug (assembled)
1
3 1
284708 6833 00.00.09
Gear
1
4 1
284709 6833 00.00.010
Cylindrical drive gear
1
5
263980 6833 00.00.03
Carter
1
6
263983 6833 00.00.04
Bushing
1
7
263981 6833 00.00.06
Sealing
1
8
213986 6833 00.00.11
Cover
1
9
168219 6834 00.00.06
Sealing
1
10
265627 6834 00.00.10
Sealing
1(//tractor-service.com)
11
501769 5054 00.00.28
Washer
2
12
_ 6187 00.00.02
Stutzer
2
13
338689/338690 260028 00.00
Traction electric motor DS 3.6/7.5/14-01
1
14
208086/209867 BDS 833-82
Washer 2 12H
7
15
215730/215577 BDS 2527-71/5,6
Stopper II con.1/2"
1
16
212051 BDS 3609-73
Ring II B20x26
1
17
_ BDS 1232-72/6,6
Bolt I M8x20-8g
12
18
208117/209865 BDS 833-82
Washer 2 8H
12
19
_ BDS 1238-75/6,6
Pin I M10x45/12/26/-8g
7
20
204923 BDS 744-83
Nut M10-6
7
21
208154/209866 BDS 833-82
Washer 2 10H
7
22
_ BDS 2171-83/8,8
Screw I M12x35-8g
7
