RPO samplers, Chernivtsi region.

Purpose and area of application: Manual multi-level grain samplers are used for sampling. They make it possible to take samples at the same time at several levels with a depth of embankment up to 1.5 m, up to 2 m and up to 3 m. They are used at bread-receiving and grain-processing, compound feed enterprises, in the State Bread Inspection. Designed for grain sampling ingrain warehouses,warehouses, motor vehicles, railway wagons, etc.

Samplers are manufactured in accordance with the requirements of GOST 13586.3-83 "Rules of acceptance and sampling methods" in variants (see technical specifications).
Diagonal samplingprotects grain from damage and pinching during sampling.

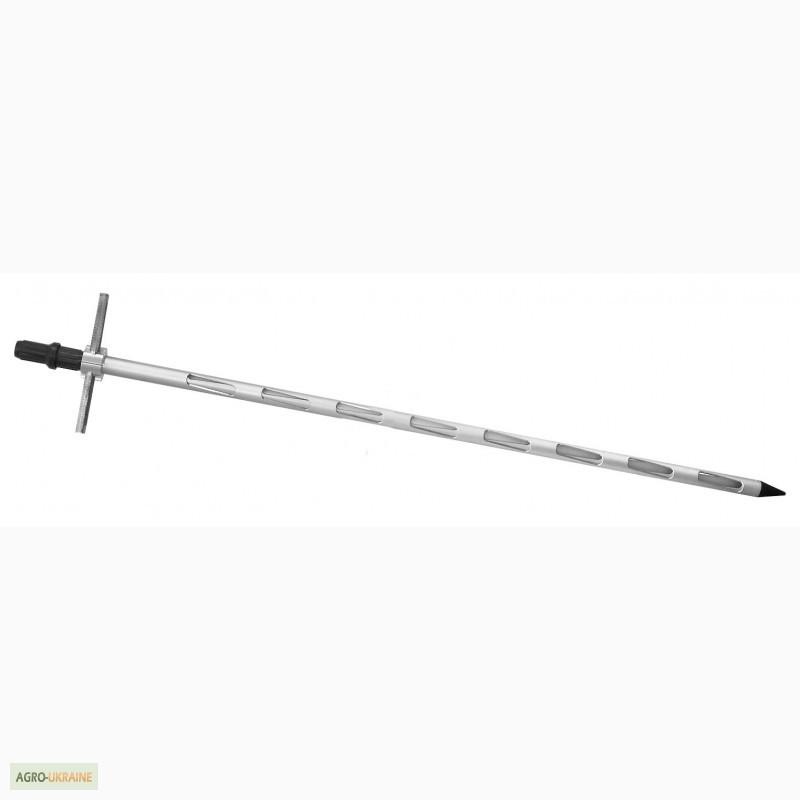

Description: The sampler consists of an outer case - a duralumin tube with a diameter of 35 mm or 50 mm with a pointed cone-tip and a stop, an inner case - a duralumin tube with a diameter of 30 mm or 45 mm with a crimp ring and a handle. Sampling is carried out in grain mounds, in a car or a car body by turning the inner body inside the outer one through the sampling holes in the pipe.

Model
RPO-1.6x35
RPO-2.1x35
RPO-3.0х35
Length, mm
1600
2100
3100
Sampling depth, mm
1400
1900
2900
Diameter, mm
35
35
35
Diameter of the internal cavity, mm
26
26
26
Number of sampling holes, pcs.
8
11
17
Sample weight, g
600
900
1300(//tractor-service.com)
Mass, kg
1.4
1.8
2.5
Model
RPO-1.6x50
RPO-2.1x50
RPO-3.0х50
Length, mm
1600
2100
3100
Sampling depth, mm
1400
1900
2900
Diameter, mm
50
50
50
Diameter of the inner cavity, mm
41
41
41
Number of sampling holes, pcs.
6
9
13
Sample weight, g
950
1400
2000
Mass, kg
2.2
2.8
3.9
