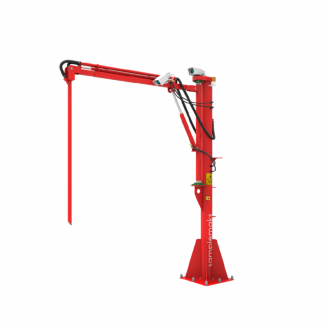

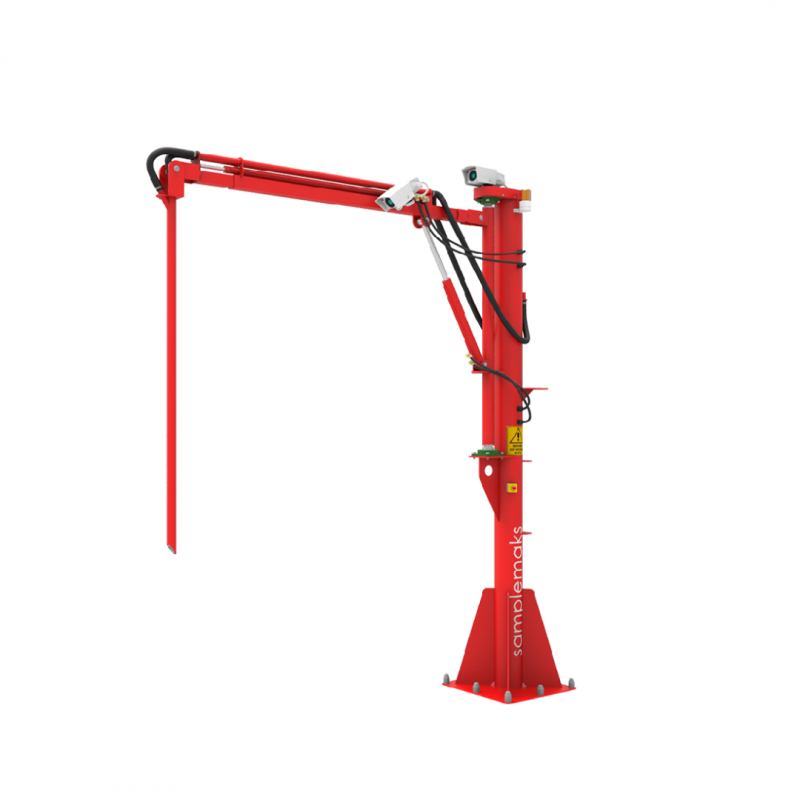

Samplemaks automatic sampler, Chernivtsi region.

Automatic sampler of the Samplemaks model is used for quick, standard and prompt sampling of large volumes of raw materials that have arrived at the factory/plant. Samplemaks can deliver samples of wheat, barley, rice, rye,corn and beans to the laboratory in 10 seconds using a vacuum motor.
The device with its hydraulic system is able to rotate in 6 directions (right, left, up, down, forward and backward). The length of the probootbonic handle is 4 m, it rotates in a radius of 180 degrees, so it is able to cover a space with a total length of 8 m. Samplemaks can be easily controlled from anywhere with the help of a joystick and a remote control. Also, the 2 cameras included in the kit allow you to carry out the entire sample sampling process without leaving the laboratory. The device, except for cases of improper operation, has a 2-year warranty, as well as a 10-year warranty on the availability of spare parts.

Principle of operation
For the grain that comes to the factory in the form of raw materials, it is necessary to determine whether it has the characteristics specified in the purchase contract and its quality. The quality of the grain in the vehicle can be different at each point, so it is important to get standard samples promptly. Samplemaks performs automatic sampling of such types of products aswheat, rye, barley and rice with the help of vacuum within a very short time (10-30 seconds). A mechanized boom, controlled by a joystick or control panel, penetrates to the very bottom of the grain mound to obtain a sample. Samplemaks provides automatic transportation of samples to the laboratory using a hose system.

Features:

Hydraulic system
Scanning angle 180 ° in the left and right directions(//tractor-service.com)
Joystick and remote control system for the control unit
Ability to move back and forth, down and up, left and right
Sample transport system with a vacuum motor and a hose.
Pressure sensor that detects the base of thecontainer for safety purposes
2 cameras showing sampling locations and monitoring system
Voltage: 220V, 50 Hz
Power: 1100 W
Net size (mm): 3013x750x3830
Package size (mm): 4200x1000x1000
Weight: 550 kg
