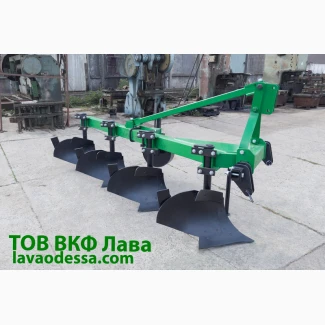

Plow PBL 4-40 A on high round racks (MTZ 1221, 120-130 hp), Odesa region.

PBL-4-40 А furrow ploughshare is appointed for plowing soils undercereals and technical crops to a depth of up to 30 cm.
The plow is used in all soil and climatic zones, excluding soils clogged with stones, slates and other obstacles, with soil specific resistance of 0.9 kgf/cm2 (0.09 MPa) and hardness up to 40 kgf/cm2 (4.0 MPa) and humidity up to 27%.
The plow is aggregated with tractors with a power of 120-150 hp. (MTZ-1220; MTZ-1221; MTZ-1521; equipped with weight category 3),right wheels which are in the furrow during operation.

Technical characteristics:
1. The width of the plow - 1.6 m
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 700 mm.
4. Mass - 800kg±30
5. The working speed of movement during the main operations is 7-9 km/h.
6. Transport speed, no more than 15 km/h.
7. Cover width - 400 mm.
8. Productivity in 1 hour. - 1.1-1.4 ha/h
Overall dimensions, mm: 163
довжина - 3700±100 (//tractor-service.com)
width - 2000±50
height - 1650±50

Advantages:
1. Installation of a housing with a semi-screw dump ensures effective wrapping of harvest residues.
2. The use of a frame rack with a round section prevents the plow from clogging in fields with a large amount of crop residues.
3. Fastening of the housing stand on the sides of the frame, due to this, the toes of the housings are brought out from under the frame, which allows you to avoid clogging when working at increased speeds of soil processing.
4. The attachment of the housing rack to the frame with pressure bars and staples makes it possible to easily adjust the grip of the housing in case of deviation from the straight-line movement of the plow.
5. A strong and reinforced frame is used.
