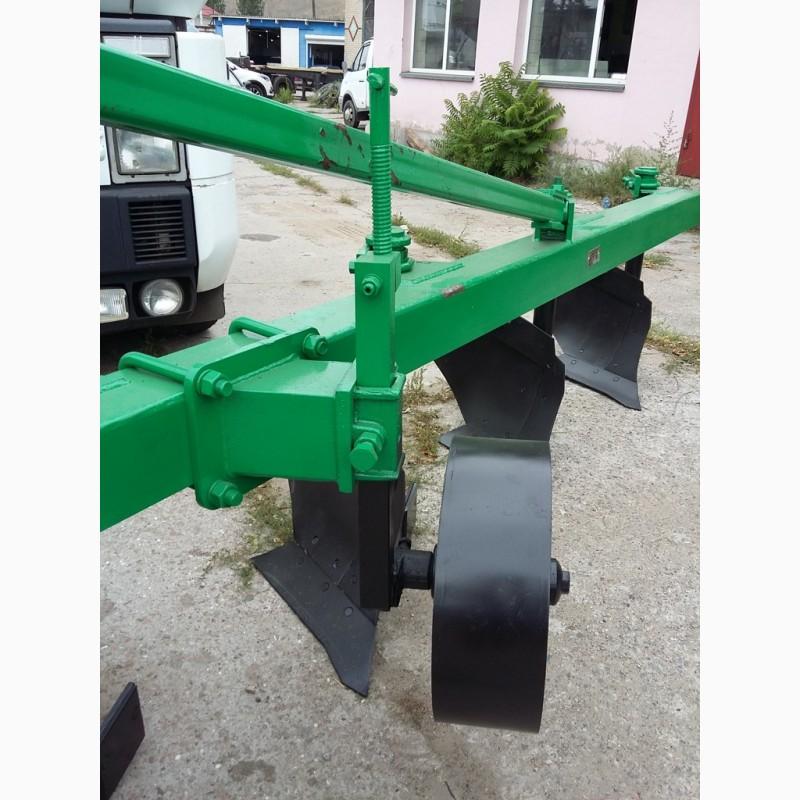

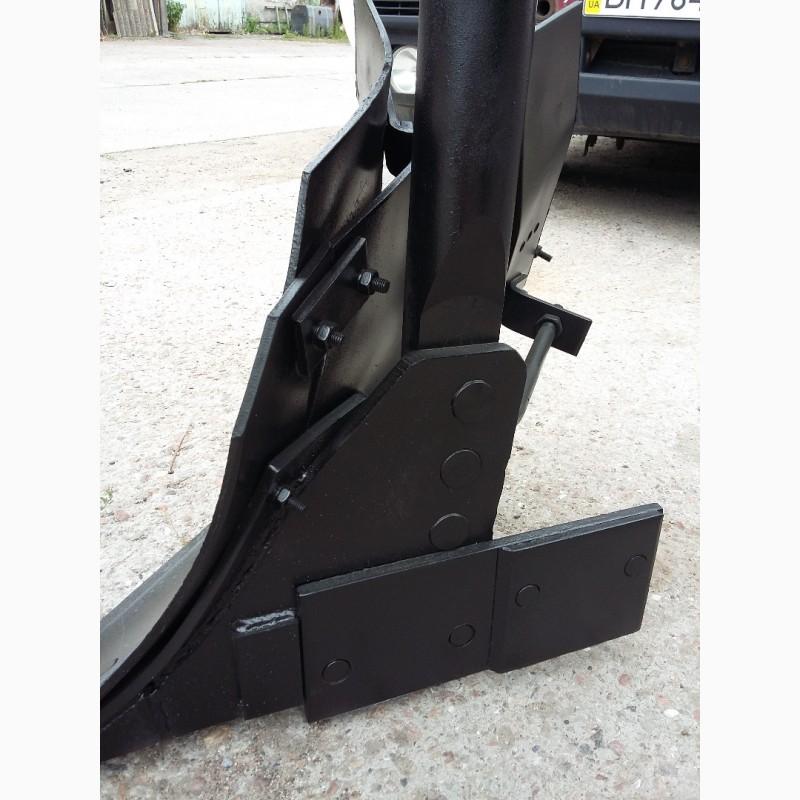

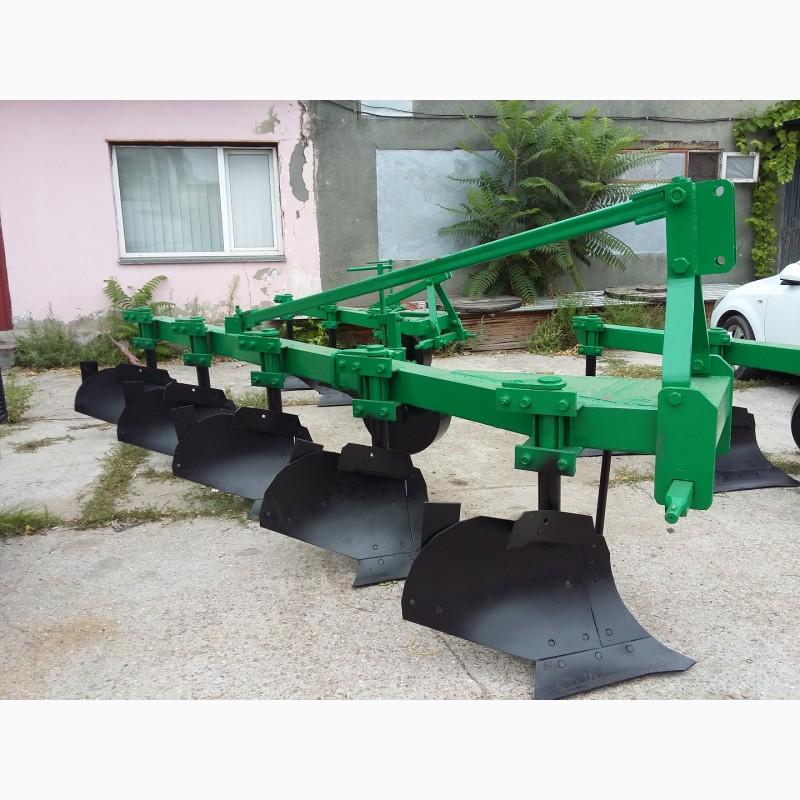

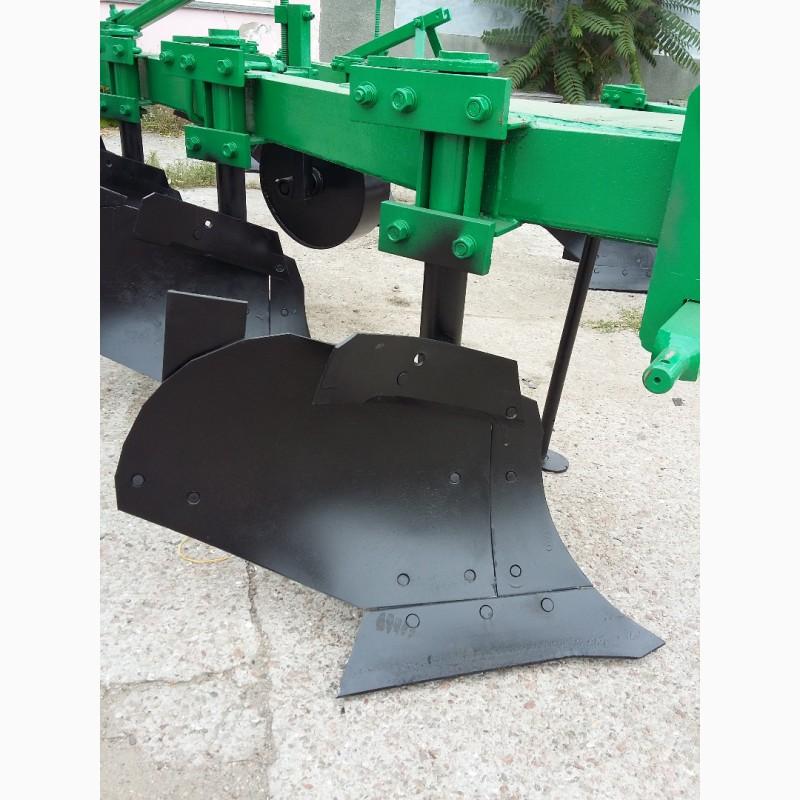

The PBL 5-40 hinged furrow plow is intended for plowing various soils under
grains and technical crops to a depth of up to 32 cm, not clogged with stones, slate and other obstacles, with specific soil resistance up to 0.09 MPa (0.9 kgf/cm2) and soil moisture up to 27%. The plow is aggregated with class 3 tractors, the right
wheels which are in the furrow during operation.
Advantages of the plow
1. The plow is aggregated with tractors (Vt.ch. T-150K), moving in the furrow, which provides excellent joints in adjacent passages, and in wet soil conditions allows plowing to start 7-10 days earlier than when working with conventional plows.
2. High productivity, the absence of technological downtime due to the reduction of clogging (due to the increased clearance under the frame, the installation of angle brackets instead of plowshares, the location of the housings on the side of the frame).
3. High-quality plowing (good soil turnover, compaction of plant residues and soil crumbling, uniformity in depth).
4. Clarity, simplicity and convenience of adjustments.
Productivity for 1 hour of the main time, ha/h - 1.4 – 1.8
(//tractor-service.com)
Width of capture, m - 2.0
Cover width, mm - 400
Plowing depth, cm - 20 - 32
Number of working bodies, pcs. - 5
Clearance under the frame, mm - 700
The distance between the bodies, mm - 985
Dimensions, mm: length * width * height 4500*2350*1650
