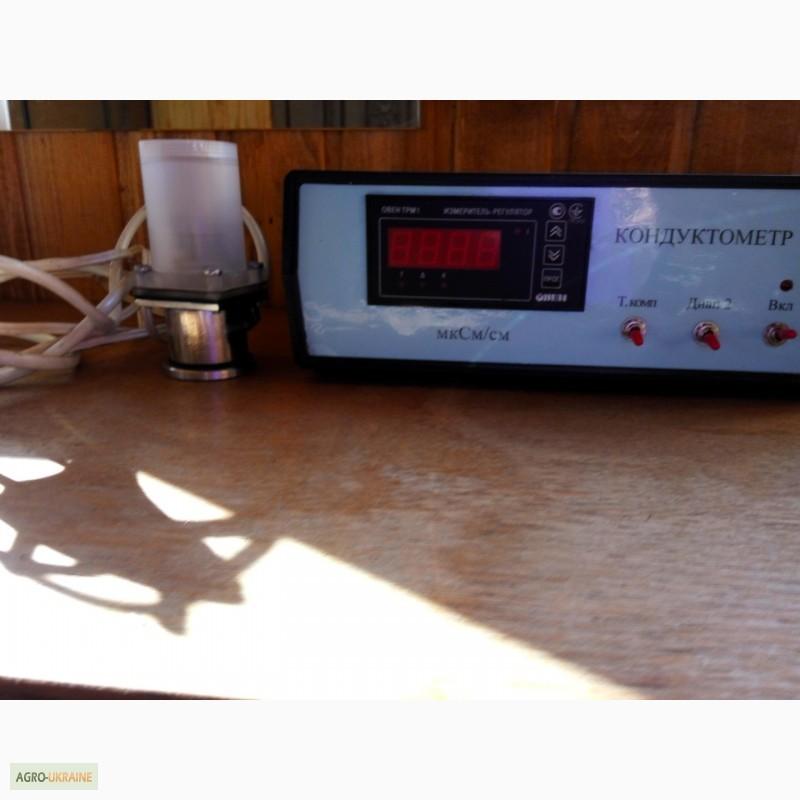

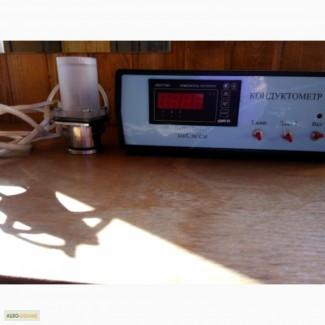

Conductometer IPP- M laboratory portable, Dnepropetrovsk region.

Conductometer IPP-M laboratory portable - device with manual control,
with a digital display and a contact liquid primary converter.
It is intended for measuring the UEP of aqueous solutions and converting the measured signal into visual readings.
Technical characteristics.
1. The power supply of the conductometer is alternating current with a voltage from 187 to 242 V and a frequency of 50 Hz.
2. Power consumption - no more than 10 W.
3. The time to set up the working mode is no more than 5 minutes.
4. The time to establish the output signal when the UEP changes abruptly (filling the PP) is no more than 3 seconds.
5. The time for establishing the output signal with a sudden change in temperature is no more than 30 seconds.
6. The volume of the analyzed medium is no more than 0.5 l.
7. The number of digits of the digital display device (CPU) -4.
8. The price of the smallest discharge unit is 0.1μS/cm.(//tractor-service.com)
9. Working temperature value from 10° to 50°C.
10. The temperature correction range is ±10 °C from the working temperature value.
11. UEP measurement range - 0-200 μS/cm
12. The limit of the permissible error, reduced to the upper limit of the measurement range ±1.5%.
13. UEP measurement range - 0-20,000 μS/cm
14. The limit of the permissible error, brought to the upper limit of the range, is not normalized.
15. Overall dimensions: 159
ПИ-250 мм х150ммх90мм
PP-110 mmx60 mm
16. Mass of the conductometer:
IP-1.4 kg
PP-0.4 kg
