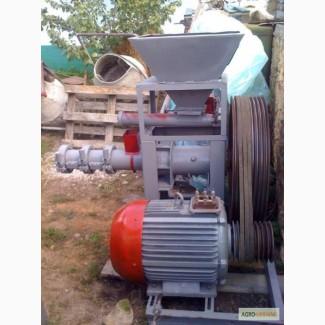

KMZ-2U grain extruder, Vinnytsia region.

The grain extruder is intended for the preparation of fodder by the extrusion processing of fodder grain (wheat, rye, barley, corn, peas, as well as soybeans). During extrusion, a temperature of 120-180 C and a pressure of 20-30 Atm are reached, hydrolysis of starch occurs with an increase in the amount of dextrins and total sugars, the structure of the cell walls is destroyedcells, fiber breaks down into secondary sugar, as a result of which feed digestibility and taste qualities improve, pathogenic microflora is destroyed.
There is a significant increase in digestibility (from 45% with traditional grain processing) to 95%.
Mainextruder parameters KMZ-2
Indicators
kmz
Productivity, kg/h
450-650
Operating temperature range, °С
110-135
Screw diameter, mm
Installed power of the main drive, kW
55
Maximum powersteam generator, kW
Total power consumption, kW(//tractor-service.com)
Moistening of the raw material with steam,%
Drinking water consumption, l/h
Consumption of cooling water, l/h
Duration of continuous work, h
100-130
Wear resistance of working bodies, h
Occupied area, m2
Dimensions, mm: length
1620
width
1500
height
1065
Mass, kg
1065
