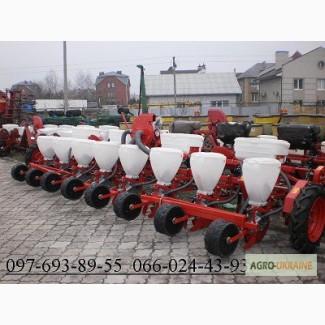

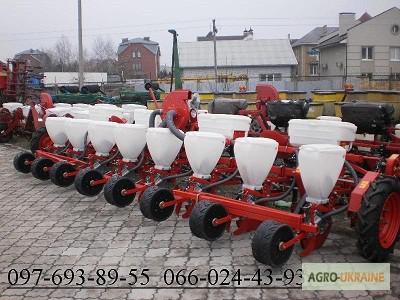

I will sell a row drill of precision seeding UPS-8, Dnepropetrovsk region.

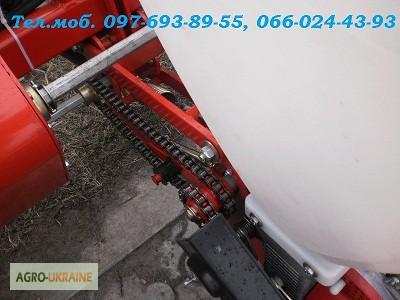

In-row pneumatic precision seed drills UPS-8 are designed for dotted sowing of calibrated and uncalibrated seeds of corn, sunflower, castor, sorghum, soybeans, as well as seeds of forage beans, beans, lupine with simultaneous, separate from the soil in the rows. All drills are supplied with sowing section, equipped with a 2-circuit drive of a new design. Reliable protection of the drive ensures work in fields littered with plant remains.

All drive shafts of grain and fat seeders are mounted on rolling bearings.

Due to the location of the axis of the supporting and driving wheels on the same line as the grain coulters, simultaneous copying of the topography of the field by both the frame and the sowing section is achieved.

A tread with soil grips on thetires of the support-drive wheels reduces their slippage, which ensures the specified interval between the seeds.

The planters have a strong hydrofed marker with a larger diameter disc that has the ability to change the angle of attack for a highly visible trail.

Completeness of the planter with a transport device allows you to move it on general purpose roads without the use of additional vehicles.

The semi-automatic hitch ensures quick and safe connection of the planter to the tractor.

The hitch has the ability to shift along the frame beam, which allows sowing with a row spacing of 450 mm with tractors that do not change the width of the track (for example, T-70C).

To create a uniform rarefaction, which is necessary when sowing heavy seeds of leguminous crops (soy, etc.), the fan is equipped with an additional air duct. The beam of the seeder frame is the receiver of the pneumatic system of the seeder, which reduces the pulsation of the air flow, which allows you to obtain uniform sowing on each section.

The fan has an overrunning clutch that protects the belt transmission from increased wear.

The presence of a viewing window allows you to perform a visual control of the quality of the seeder's work during the adjustment process.

Comb-type double seed ejector ensures precise single-seed sowing. A harrow is installed on the sowing disk.

The seeder produces precise single-grain sowing of seeds of various crops with a seeding rate of 2 to 43 pieces per linear meter.

An unloading hatch is provided for quick removal of seeds from the chamber of the seeding device.
A water breaker is installed in the hopper, which prevents seeds from freezing.
(//tractor-service.com)
The fat seeding system through fat coulters provides the possibility of applying mineral fertilizers to the sides of the row with the required amount of displacement, which excludes the harmful effect of fats on the seeds.

Plastic bushings are installed in the fat hopper, which prevent the arbitrary stirring of mineral fertilizers.
To remove the remains of mineral fertilizers in the fat bunker, an unloading hatch is provided.

To improve the wrapping of seeds and the stability of sowing sections during the operation of corn planters, wide rolling, rakes and a train rail are used in the section.

The rolling of the soil in the sown rows improves the contact between the seeds and the moist soil at the bottom of the furrows, provides capillary rise of moisture and creates favorable conditions for earlier and friendly seed germination.

Indicators of UPS 6 UPS 8
Machine type mounted mounted
Width of capture m 4.2 5.6
Number of rows approx. 6 8
Width between rows mm 450, 600, 700, 900 450, 600, 700, 900
450x900, 600x1200
Working speed km/h 3.6-9 3.6-9
Productivity ha/h 2.26-3.78 2-5.04
Hopper capacity (total) dm3
- for seeds 150 200
- for fertilizers 192 192
Sowing norms
- for seeds pc/p.m. 2-43 2-43
- for fertilizers kg/ha 50-250 50-250
Seed wrapping depth mm 40-120 40-120
Overall dimensions mm
- in working position 1700x4900x1600 1700x6250x1430
- in transport position 5450x2300x2360 6800x2300x3010
Weight kg 1074±3%, 1278±3%
It is aggregated with tractors hp. (ts) 80 (1,4) 80 (1,4)
