Watermill, grain crusher "Appetite GM15", Nikolaev region.

Hydromelnitsa - ГМ15 - prepares hot, nutritious fodder porridge from water and any grain, used for fast, economical fattening and maintenance of pigs, cattle, rabbits, domestic animals, ducks, chickens and other animals and birds.

Not one of the well-known methods of preparing fodder from grain - dry grinding, cooking, flattening, extrusion, steaming ... does not give fodder of such high quality as GM processing.
This unit can be the basis of a feed mill, which will provide fodder for several hundred heads of cattle, both its own and those of neighbors.

The cavitation heater technology implemented by GM allows, in addition to mechanical grinding, to heat the obtained porridge up to 90 degrees (up to 50 is recommended); produce hydrolysis of starch, polysaccharides, cellulose and other components of grain into substances that are easily absorbed by the animal's stomach. As a result, more than 90% of the feed is absorbed, the amount of manure decreases, weight gain, milk yield, egg production increase, and the general condition of the animals improves. In addition, cavitation disinfects feed, i.e. diseases, including diarrhea, are prevented. In the process of "cooking", the sugar content of the composition reaches 12-15%, with normal steaming up to 5%. I.e. the result is a hot, sweet, nutritious food with a pleasant smell. For such animals, they will thank their owner with record milk yields and high weight gain.

Having a ГМ15, you can create a feed processor of your own design capable of feeding several hundred head of cattle. A large reserve of power allows you to add various additives to the porridge - crushed alfalfa, straw, meal, cake, potatoes... Similar in terms of performance, fully equipped units are 8-10 times more expensive than the base - GM. Frame, engine, capacity - everything is possible on the farm.
The recommended volume of the bunker is 300-2000 liters.

Construction details:
-- ГМ15 drive - to ensure effective operation, an electric motor will be required. engine with power - 11-15 kW/2860 rpm or diesel, gasoline of similar power;
-- wear-resistant activator made of structural spring-spring steel 65G with heat hardening;
-- bearing unit - 6307-2RSR - 2pcs;
-- stuffing box - end seal of silicon carbide with a guaranteed resource of 12,000 hours;
-- outlet diameters. nozzles (2 pieces) - 50 mm, inlet - 90 mm;
-- total weight – 32 kg.
(//tractor-service.com)
Advantages of using GM and wet feeding technology:
-- reduction of consumption of fodder due to improvement of their quality, ideal mixing of introduced additives. More than 30% of grain is saved.
-- allows you to prepare nutritious fodder porridge from any grain, completely abandon premixes! and get high-quality meat and fat!
-- the fodder mixture, when heated to 60˚С, retains the maximum biological value when it is prepared from natural grain immediately before feeding.
-- in the process of preparation, cavitation* disinfects the feed, bacteria introduced from the field and during storage die, i.e. the use of moldy, infected feed components is possible!
-- up to 6 months, instead of 10-12, the fattening period is reduced. The ability to grow two generations of animals per hour on one area.
-- simplifies the work of the breeder, saves space, time, and energy, there is no need to buy compound feed, which is 30-40% more expensive than grain.
-- exploitation of GM is profitable, because one unit replaces several pieces of equipment and performs: grain grinding in water, thorough mixing, vortex heating, active steaming, hydrolysis of the grain mixture and pouring of the produced porridge into feeders - by gravity or under pressure.
-- grinding in an aqueous environment is economical, there is no dust, less power is required with minimal wear of the mechanism. With the help of GM, the price of each kilogram of grain increases 5 times or more.

The technologies of economical feeding are based on the highest quality preparation of fodder, when the stomach of the animal spends minimal effort for its assimilation, the main work is performed by the equipment. GM successfully solves this problem, and wet feeding technology has the best performance, compared to dry and extruded.

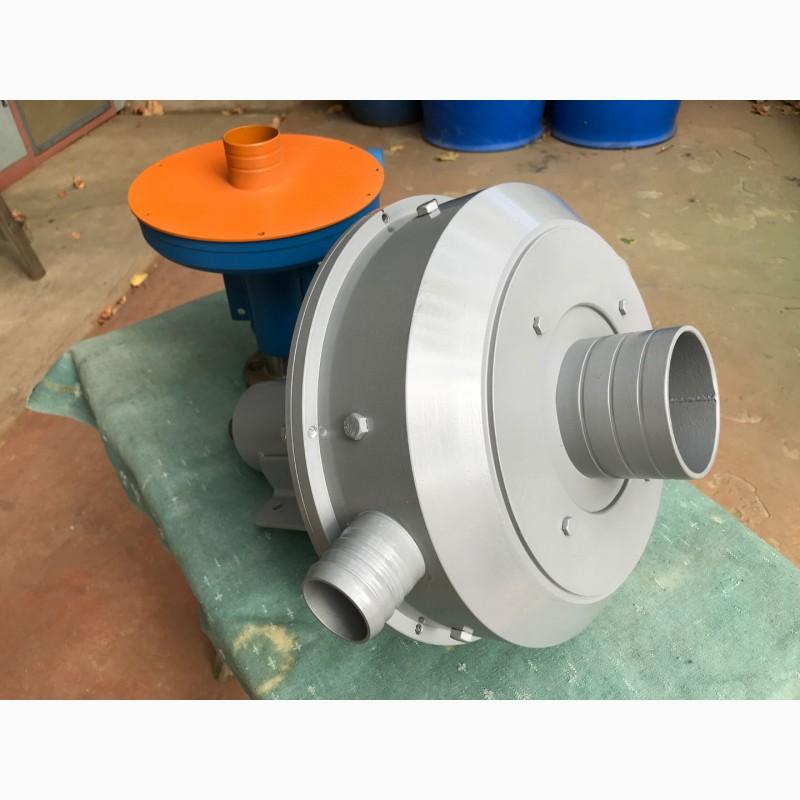

We can make a complete feed processor to order. In the header photo - ГМ15 and ГМ2 in the background.
The following are photos of units of different power and productivity, the basis of which are hydromills.

Any questions about the use of the unit, purchase, payment, delivery -[email protected]; phone: +38 067 2825117; +38 095 3505197 Viber, WhatsApp; Skype: voka531

* Cavitation is a process that destroys solids in a liquid - ship propellers, workerswheels pumps…. In our case, it decomposes the grain, sterilizes the substance without boiling, killing spores and bacteria.
