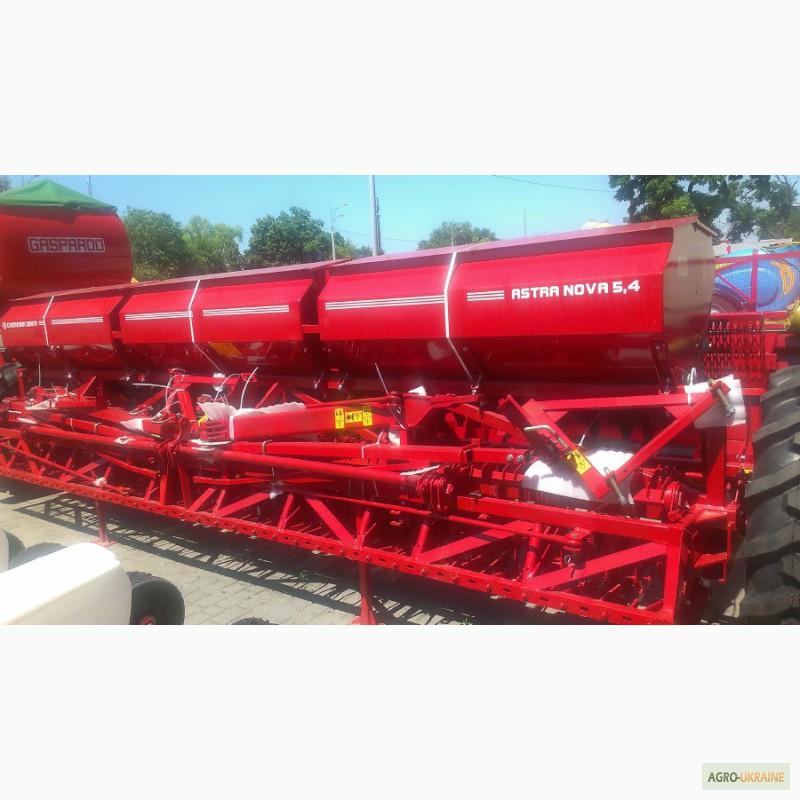

ASTRA NOVA 5.4A with variator seeder, Dnepropetrovsk region.

Gripping width, m 5.4

The number of lines, pcs. 36

Row width, cm 15

Sowing rates for seeds, kg/ha 0.7-400

Sowing rates for fertilized, kg/ha 25-200

The depth of planting seeds and fertilized, mm 40-80

Working speed, km/h 9-12

Productivity, ha/h 4.9-6.5
(//tractor-service.com)
Total capacity of seed bunkers, l 1000

Total capacity of bunkers for fertilizer, l 500

Overall dimensions in working position (not including markers), mm 8550x6180x1830

Overall dimensions in transport position (including markers), mm 6750x2950x2850

Mass, kg 2700

It is aggregated with tractors with a capacity of at least hp. 80

Grain and fat seeding devices are made of polymer material, which excludes the possibility of corrosion of device parts and, accordingly, increases the service life.

The sowing device for the seeds of grain andlegume crops is equipped with a valve that has three fixed positions, regulating the rate of seed material feeding to the screw coil.

The grain seeding device has a screw coil for sowing grain and leguminous crops and a pin coil for small-seeded crops (rapeseed, mustard), as well as sowing loose and medium-loose grass seedsсемян трав.
