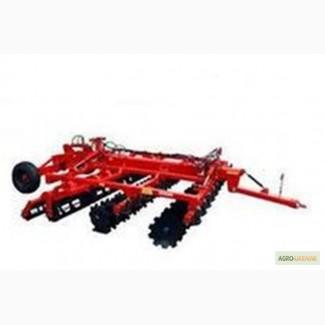

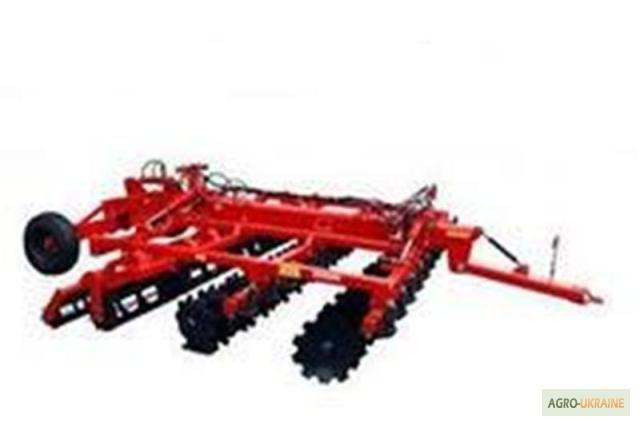

Disk unit АГК-3.0, Dnepropetrovsk region.

Combined tillage unit with working bodies of increased resource, providing a pressure of more than 170 kg on 1 disc, intended for the processing of compacted soils, the destruction of weeds and the grinding of plant residues after harvesting thick-stemmed plow crops, for the care of meadows and pastures, as well as for the basic processing and preparation of soils for sowing using the Mini-Till technology.

The constructive solution consists in the fact that two-disk sections arranged in two rows on the frame of the unit are installed on spring-loaded individual racks. A distance of 250 mm between adjacentdisks, 1300 mm between rows at an angle of attack of 15 ̊ and an angle of inclination of the disks of 6 ̊ ensures complete cutting of weeds, intensive mixing of the soil and excludes clogging of the unit between rows, when processing weedy agrofons. At the same time, the traction resistance is reduced by 15-20% compared to similar guns.

During soil processing, the spring-loaded racks of the cutting unit smoothly bypass the obstacle, performing low-frequency oscillatory movements, due to which the disks self-clean from plant residues and sticking.

After processing the soil with the AGK-3.0 aggregate, the field surface is leveled, compacted, and a mulching cover is preserved on it, protecting the fertile layer from drying out and erosion.

Constructive features of AGK-3.0

- two-sectionrollers of different diameters ensure high-quality crushing and leveling of the field surface;

- the spring node compensates for hard loads on the frame and allows you to overcome obstacles;

-discs of the unit are made of boron-containing steel.

Technical characteristics
Unit type
half spring
Width of capture (m)
3.0
Productivity (ha/hour)
3.0 - 3.6
Working speed (km/h)(//tractor-service.com)
10 - 12
Processing depth (cm)
10 - 17
Angle of attack of discs (degrees)
15
Type of working body
двухдисковый
Number of working bodies (pieces)
12
Diameter of discs of the working body (mm)
610/650
Transport speed, no more (km/h)
20
Dimensions (in transport position)
see below
Length (mm)
6380
Width (mm)
3075
Height (mm)
1560
Mass of the unit (kg)
3000
Required power of the tractor (hp)
100 - 120
