Bron disc harrow BP-3P with spring racks. Processing up to 14 cm, Kirovohrad region.

Production — TM "Voskhod"

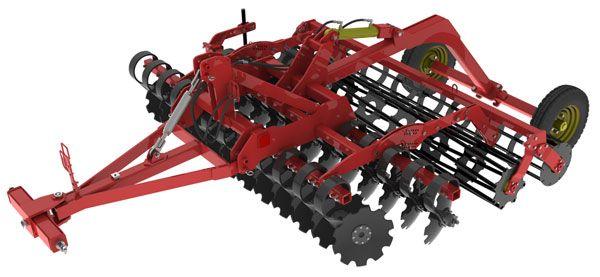

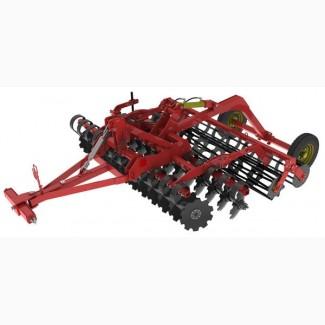

Disk harrow BP-3P with springs racks
Production — TM "Voskhod"

+380xxxxxx

The trailed disk harrow with spring struts BP-3P is intended for stubble and pre-sowing processing on light or medium soils after plowing, as well as for obtaining mulch. The BN-3P unit provides mixing of soil and plant residues to a depth of up to 10 cm.

Operations:

cutting and processing of harvest residues to a depth of up to 10 cm,
mixing soil with plant residues,
loosening,
alignment,
soil rolling and compaction,(//tractor-service.com)
pre-sowing preparation.

Hydraulically folds for transportation. Optimal speed: 12-15 km/h.

It is aggregated with tractors 150-240 hp.
Technical characteristics
Hinged type
Working width of capture, m 3
Productivity, ha/time 4.0
Depth of soil treatment, cm up to 10
Mass, kg 1650
Disc diameter, mm 480
Number of working bodies (disks) 24
Required powertractor, hp. 90-120

voshod.dp.ua
