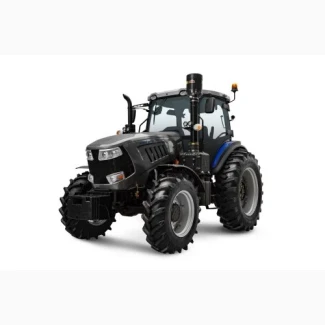

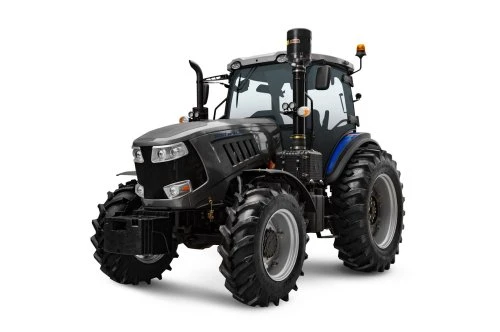

Scout TD-1104C Pro tractor, Kiev region.

Warranty: 12 months.

Delivery
Free Shipping
Discount for self-delivery 1500 hryvnias

Calculation
In cash
Non-cash settlement
Credit
Warranty
Official warranty from the manufacturer

Returns
14 days to return the product without any questions.

Complete set
Oil (engine, gearbox, hydraulics)
ZIP
Toolkit
Operation manual

Technical characteristics
Engine power, hp (kW): 110 (81.4)(//tractor-service.com)
Wheel formula: 4x4
Engine type: diesel, 4-stroke, YTO&LR4M3Z
Number and arrangement of cylinders: 4, vertical
Engine starting system: electric starter
Cooling system: liquid, closed, with forced circulation of cooling liquid
Engine volume, cm3: 5610
Nominal traction force, kN: 28
Gearbox (CP): 16+8
Rear differential lock: +
Clutch: dry 2-disk permanently closed type
Main transmission: direct
Steering control: hydraulic
brakes: on the secondary shaft of the gearbox, brake drums
Power take-off shaft (PTO): rear, splined
Typehydraulic pump system: gear pump (NS) for the suspension drive / NS for power steering operation
Load capacity of the attachment: 4500 kg.
Revolutions of the power take-off shaft (PTO), rpm: 540/1000
Sizetires: front 12.4-28, rear 16.9-34
Wheel track: front 1620-1780, rear 1620-2020
Clearance, mm: 410
Number of hydraulic outlets: 3
Trailer connector (socket): +
Compressor: +
Dimensions LxWxH mm: 4550x2300x3100
Curb weight, kg: 5030
