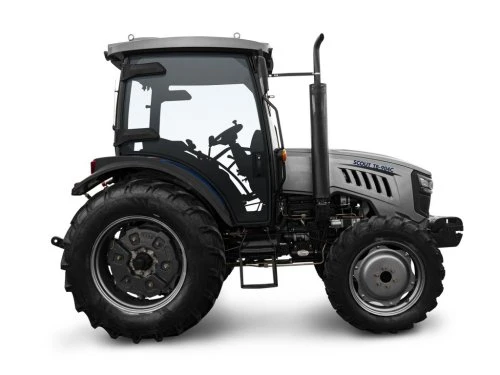

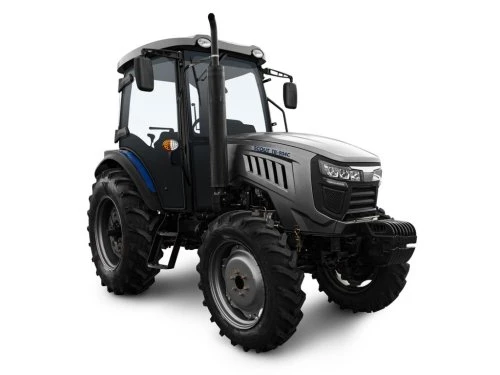

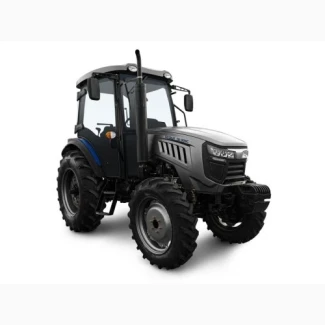

Scout TV-904С PRO tractor, Kyiv region.

Power: 90 hp
Number of cylinders: 4
Forward/reverse gearbox: 12/12
Mass: 3900 kg.
Complete set: ZIP
Warranty: 24 months.

Delivery
Free Shipping
Discount for pickup 1500 hryvnias

Calculation
In cash
Non-cash settlement
Credit
Warranty
Official warranty from the manufacturer

Returns
14 days to return the product without any questions.

Main characteristics
The SCOUT TB-904S tractor is a powerful and reliable machine for professional agricultural use. Equipped with a 90-liter engine. (66.2 kW) and 4x4 wheel formula, it guarantees excellent passability and high efficiency on any terrain.
Overall dimensions are 4150×1850×2890 mm, operational weight – 4012 kg. The tractor is equipped with a spacious cabin with excellent noise and heat insulation, hermetic construction and a circular view.

Steering: hydraulic with hydraulic booster, double-sided hydraulic cylinder with protective covers and a separate pump
Clutch: petal, dry, permanently closed type
Transmission type: mechanical gear with synchronizers
Gear shifting formula: (4+4)×3 (12 gears forward + 12 reverse)
Engine and fuel system
The tractor is equipped with a 4-cylinder Y4105ZT engine with turbocharging, vertical arrangement of cylinders and an electric starter. The cooling system is liquid closed with forced circulation. The volume of the engine is 4200 cm³, nominal revolutions - 2400 rpm, the fuel tank holds 90 liters of diesel fuel. Electric heating of the air in the intake manifold and safe start with blocking of the starter with the clutch pedal are provided.
(//tractor-service.com)
Parameter Value
Number of cylinders 4
Nominal revolutions 2400 rpm
Nominal fuel consumption 323 g/kWh
The type of fuel is diesel.
Fuel injection pressure 20.3-20.8 MPa (203-208 bar)
Type of air filter Cassette with monocyclone
Starting the engine Electrostarter
Type of oil in the crankcase SYNT 10W-40 API CF-4/SG
The fuel system is equipped with a coarse filter (a sump with an iron flask) and a fine filter CX0706. Lubrication system - combined (pump + spraying).

Transmission, undercarriage
A manual transmission with synchronizers provides 12 forward and 12 reverse gears in 3 ranges. The tractor is equipped with a Gadt front drive axle, a high agrotechnical clearance of 500 mm (clearance up to 750 mm) and an adjustable track:

Frontwheels: 1330-1490 mm
Rear wheels: 1300-1820 mm
Wheel base - 2100 mm.Tires ARMOR radial type: front 320/85 R24, rear 340/85 R38. The steering wheel is hydraulic with a separate oil tank (volume 2 l) and a pump. There is a pedal lock for the rear differential, disc brakes on the rear wheels with a mechanical drive and dual pedals, as well as a car-type parking brake.

Minimum turning radius: 3.8 m (without brakes), 3.2 m (with brakes).

Theoretical movement speed:

Forward: 1.8-28.7 km/h
Back: 0.5-16.3 km/h
The type of oil in the transmission and front axle is TAD-17 and API GL-5. Type of oil in GORU - HYDRA SYNT ISO HM ISO 46 DIN HLP 46.

Hinged system

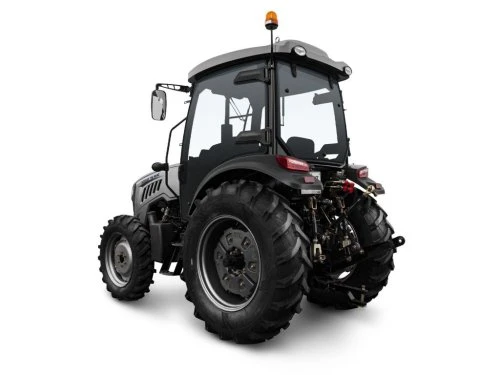

Rear universal three-point hitch system with hydraulic lift (two external hydraulic cylinders and a separate gear pump). Hydraulics supports 4 hydraulic outlets (2 pressure/drain + 2 drain) with quick-release couplings. The power take-off shaft is located at the back, has 8 splines and operates at 540/1000 rpm. Simultaneous operation of PTO and towing is possible.

Maximum load capacity: 3000 kg
Type of working fluid: HYDRA SYNT ISO HM ISO 46 DIN HLP 46
Hydraulic lift control: three-position hydraulic distributor
