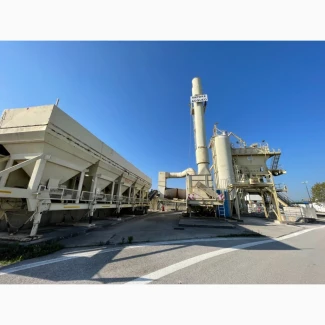

Used mobile asphalt plant Intrame UM260 (260 t/h) Spain, 2000, Kyiv

Used mobile asphalt plant Intrame UM260 (260 t/h) Spain, 2000.
ABZ is located in Europe. Excellent condition, serviced by qualified specialists.
TECHNICAL DESCRIPTION: INSTALLATION COMPONENTS AND THEIR CHARACTERISTICS
SEMI-TRAILER 1: Dosing buckets of inert materials (5 T-75)
• Undercarriage: two fixed axles, fourwheels on each, tire size 9.5 R 17.5, king-pin 2".
• Electrical training.
• Reel for winding electric cable.
• Telescopic supports for load distribution.
DOSING BUNKER OF INERT MATERIALS
• T-75 models with a volume of 5*8.5 m³.
• Loading width: 3.4m.
• Each hopper is equipped with a 3 kW (4 hp) AC drive belt feeder with adjustable speed. Length 1250 mm, tape width 550 mm, board height 50 mm.(//tractor-service.com)
• Vibrators with moisture sensors on both sand bunkers.
• Inclined collecting conveyor: belt 800 mm, electric motor 7.3 kW (10 hp).
• Reversible metal structure (loading platform) designed to hold the soil during the construction of the ramp for the loader.
• Emergency stop: steel cable with lever switch and safety relay.
• Protective casings made of sheet metal / protective gratings in the area of feeders.
SEMI-TRAILER 2: Drying unit
• Chassis: two fixed axles, four wheels,tyres 9.5 R 17.5, pin 2".
• Electrical preparation and coil for the cable.
DRYING DRUM
1. Supply conveyor: takes material from the collecting conveyor of cold bunkers. Width 800 mm, power 4 kW (5.5 hp).
2. Drying drum: diameter 2438 mm, length 10080 mm.
The rotation is provided by four drive rollers with a capacity of 22 kW (30 hp) each.
Inspection hatch with a safety lock.
