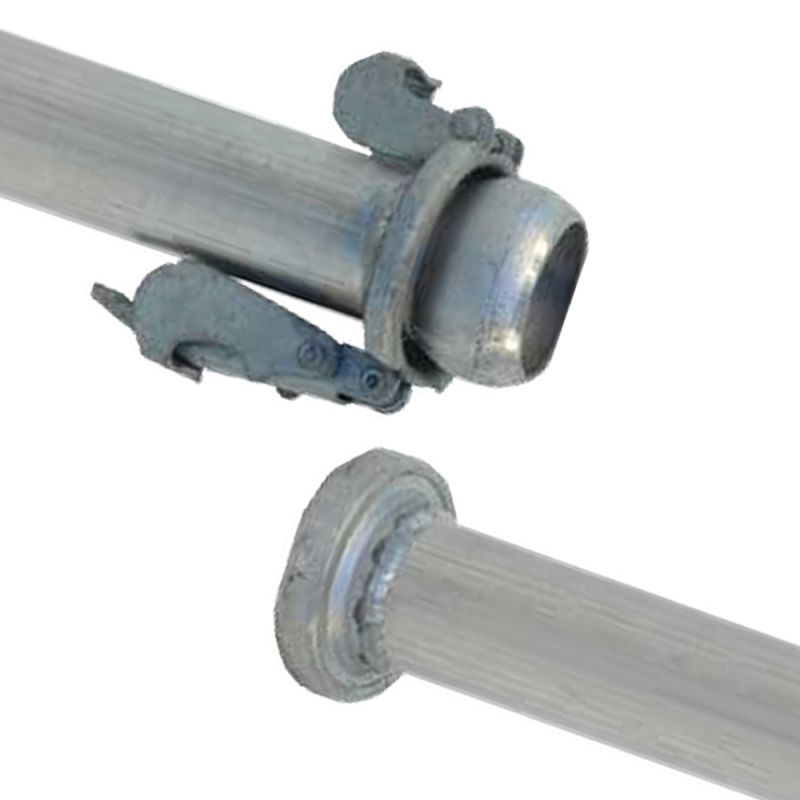

Quick-disconnect pipeline 152 mm (6″), pipe length 6m, working pressure up to 12 bar, Odesa region.

The price is for 1 meter

The pipeline allows you to freely solve the necessary tasks in difficult and hard-to-reach places, is a very convenient mechanism for temporary and seasonal laying of pipelines due to the ease of installation and dismantling on the site.

The quick-disconnect pipeline can be used for drainage of groundwater or wastewater, prompt water supply when localizing fire sites, mining industry, quarries, mines, forestry.

Technical characteristics of the pipeline:

Conventional pipeline passage, mm (inch) – 152 (6″)(//tractor-service.com)
The length of the pipe is 6m
The thickness of the pipe wall is 1 mm.
Connection type sphere/flange (Bauer type)
Working pressure – 10 (1.0) kgf/cm2 (MPa)
Test pressure – 20 (2.0) kgf/cm2 (MPa)
Pressure drop - 0.2 (0.02) kgf/cm2 (MPa) per 100 m
Pipeline coating - hot zinc
The coating thickness is 70 microns.
The weight of the L-6 m pipe as a whole is 27 kg.
