Mounted disc harrow BDN 2400 (PALLADA 2400), Kharkiv region.

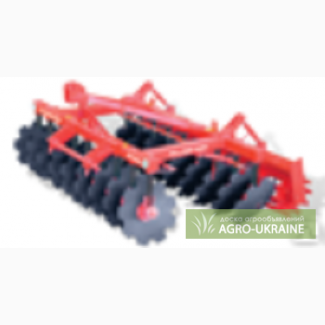

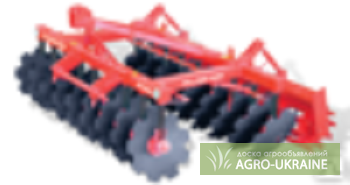

Disk harrow hinged BDN 2400 (PALLADA 2400)
The hinged disk harrow is intended for resource-saving pre-sowing and main soil processing for grain, technical and fodder crops, weed destruction and grinding of crop residues after harvesting crops, as well as for grinding, leveling and compacting the soil after disking.

The disc harrow is used in soil-climatic zones with soil moisture up to 27% and soil hardness in the treated layer up to 3.5 MPa, as well as in fields with a significant amount of crop residues.

Each disc of the harrow is mounted on an individual rack and has an inclination relative to the vertical axis, which allows you to adjust the angle of attack and the working width of the disc grip.

At the same time, the disc plays the role of a plow and a blade, which contributes to better turnover of the cut layer, its crushing, as well as a decrease in the traction force of the tractor.

Fixing the discs on an individual stand allows the disc harrow to work on lands with a large amount of plant residues, as well as on lands with any amount of weedy vegetation, while the winding of plant residues on the axis of the disc and clogging of the space between the discs is excluded.

The train-roller is intended for crushing, leveling and compacting the soil after disking.

MAIN CHARACTERISTICS
Unit type
in the spring
Productivity
ha/time
1.8
Working speed
km/h
8-12
Transport speed,
km/h
to 20
Width of capture
m
2.4
Processing depth
mm
80-180
Angle of attack of disks
hail.
0...30
Number of rows(//tractor-service.com)
piece
2
Number of cutting units
piece
18
Distance between rows of discs
mm
950
Diameter of working bodies
mm
560
Distance between disk blades
mm
250
Overall dimensions in working position
mm
2050x2700x1200
Structural mass
kg
880±30
Tractor power (not less)
hp
80
QUALITY INDICATORS OF THE TECHNOLOGICAL PROCESS OF SOIL PROCESSING
Ridged soil, not more than
mm
50
Lumps with a size of 0...25 mm, not less than
%
85-100
Trimming weeds
%
100
Grinding plant residues
%
100
