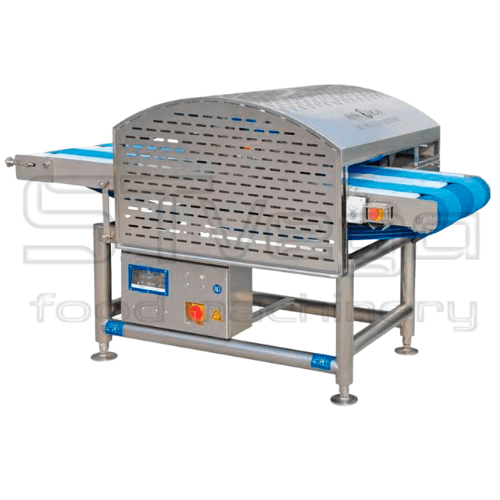

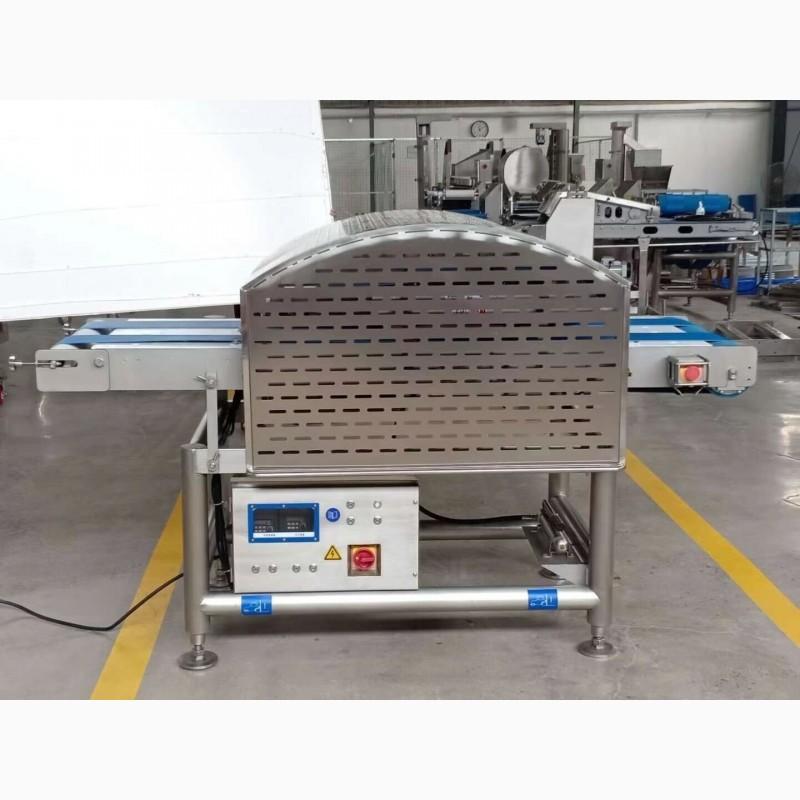

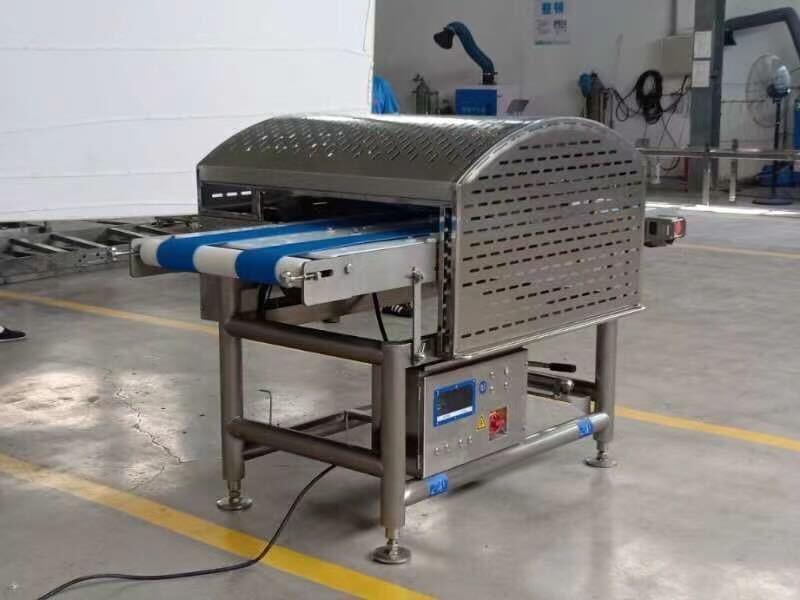

Горизонтальний слайсер для м'яса і риби STvega Meat Hor Slicer H32A, Киев

Horizontal Slicer for Meat and Seafood Stvega Meat Hor L32A is designed for slicing of such products as: meat, file. The unique feature of the machine is the simultaneous supply of the product with two parallel ribbons into the cutting zone, which significantly increases productivity. The machine is designed to cut the chilled product up to 0 ° C.

The principle of operation:

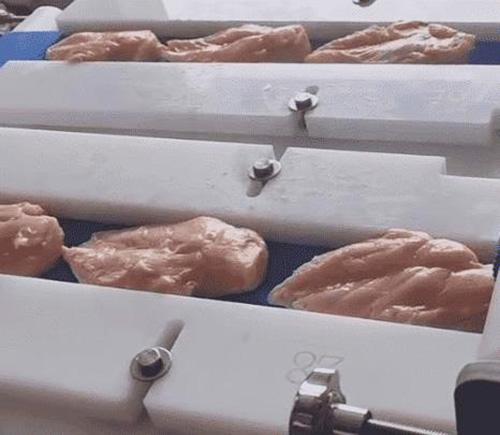

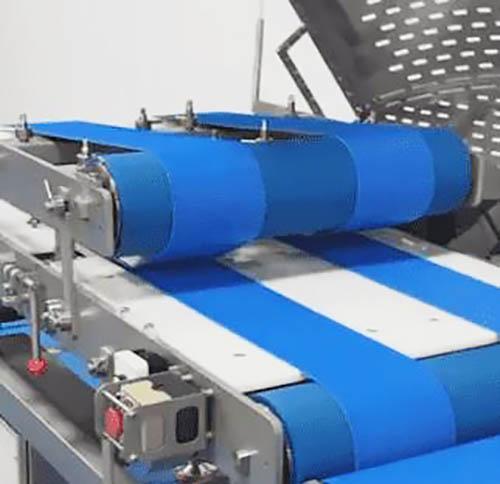

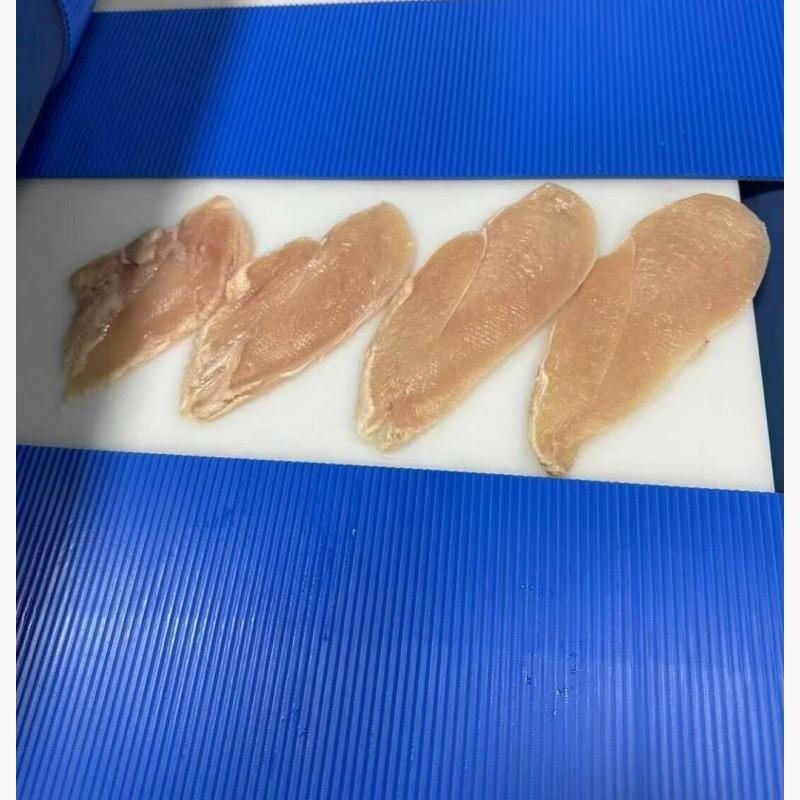

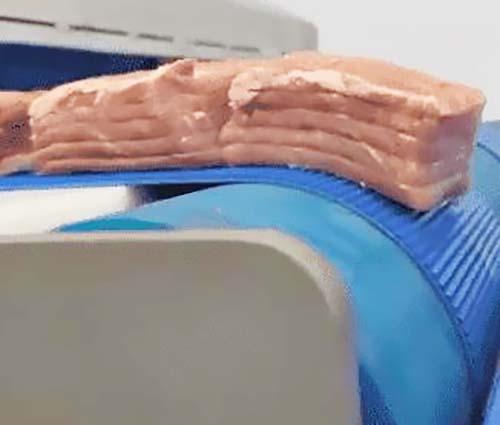

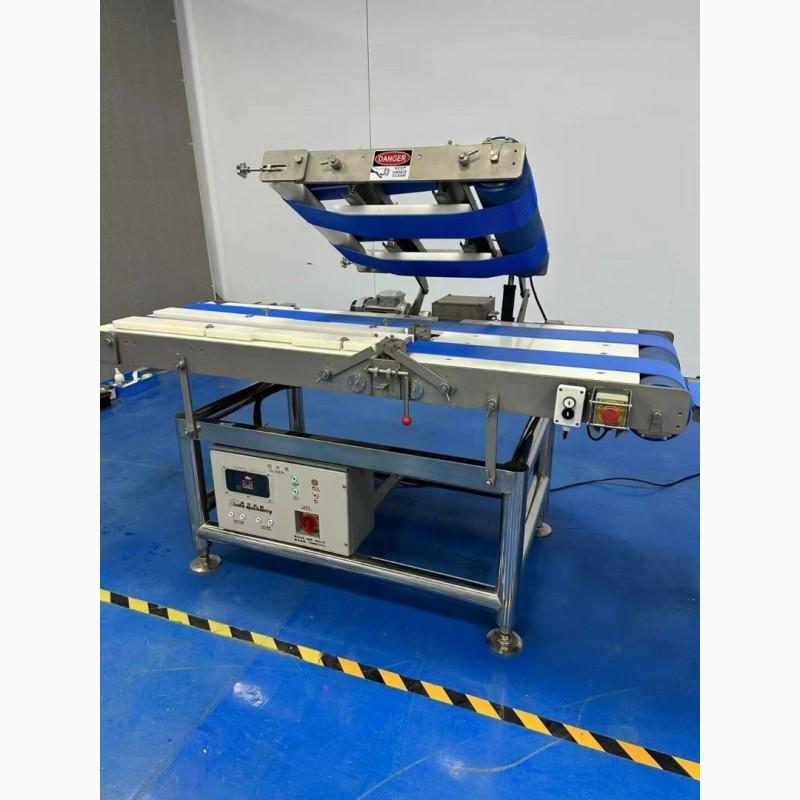

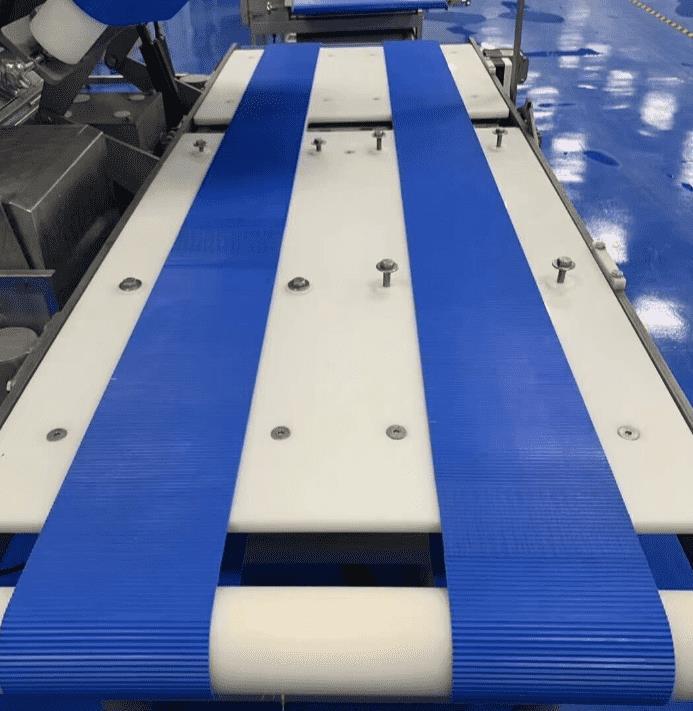

The operator manually feeds the raw material to two parallel conveyor tapes, through which the product enters the slicing area. On top of the product is fixed by the clamping mechanism, located on it the conveyor tapes facilitate the movement of the product through cutting knives. Horizontal cutting knives cut the meat into slices from 2 to 50 mm thick. Slides slices on the conveyor tape are moved to a container for the finished product or go for further processing if the machine is included in= warehouse= automated line.

Advantages of equipment:
• The surface of the knives is smooth, the blade is very sharp, so it is possible to cut the product with a thickness of 2 mm.
• IP56 Waterproof 8-step engine, work at full speed 790 rpm
• Improved system of pressure control of the clamping mechanism on the product, the combination of knife groups, as well as the perfect ratio • There is a function of calendering to achieve the required surface and shape characteristics and form obtained by clamping mechanism and conveyor tapes.
• Є функція каландрування для досягнення необхідних характеристик поверхні і форми, що отримується за допомогою притискного механізму і транспортерних стрічок.
= • Simultaneous cutting of several layers makes it possible to achieve a uniform distribution of slices with extremely high stability.
= • Transmission with the drum engine is imported from the United States, thanks to the belt and the absence of a chain and gearbox, the machine is characterized by stable operation, convenient operation, simple maintenance (fast disassembly and installation of the belt), as well as the absence of a dead angle for cleaning.
• It is possible to adjust the speed of traffic of conveyor tape and knives in accordance with different characteristics of the output product and requirements for the finished product.
• Inverter imported from Germany, has protection against voltage changes to avoid burning of electrical components and engine.

= Characteristics: (// tractor-service.com)
Продуктивність: 120 шт/хв
Dimensions: 2160*1250*1300 mm
The width of the conveyor tape: 2*160 mm
Maximum product width: 130 mm
Recommended product height: 40 mm
Cutting thickness: 2 - 50 mm
Number of conveyor tapes: 2 pcs
The speed of conveyor tape: 3 - 18 m/min
Power: 1.65 kW
Corps material: stainless steel SUS 304
