= cultivator hinged gradual General 3-row KNS-2.6, Zaporozhye region | | 000

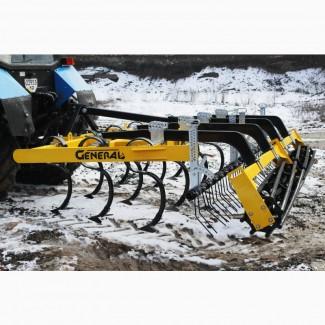

Культиватор навісний суцільний General 3 - рядний КНС - 2.6

The Genural KNS Harvest Cultivator - is used for pre -sowing cultivation and continuous steam processing. This cultivator in just one pass through the field provides full soil preparation for sowing!

General KNS combines simultaneous execution of 4 operations:

Cleaning a couple of weeds with pruning and combing their roots
loosening the soil without rotation of the layer and combing plant residues
breakdown of lumps of earth and alignment of soil with rake with spring teeth
= Seal and formation of the ideal structure of the "sole" and the surface layer of soil with the rolling cats, to prevent the evaporation of moisture.

= This cultivator is installed spring working bodies, regulating the attack angle, height, cross -slope of the paw and loading of the spring. This type of working organs is recommended for both ordinary and problem moist soil. Thanks to the protective spring mechanism, the working body "General" is easily adapted to different types of soils and field conditions, keeps paw and stable from possible damage!

= The working bodies on this model are located evenly in three rows. This location of the racks provides perfect effect of loosening and mixing the soil, without clogging weeds and plant residues!
= The spectrum of the General KNS:

Pre -sowing and preparation of sowing sole
Continuous treatment and cleaning of vapors from weed
Livating plowing

Technical characteristics of General
(// tractor-service.com)
Method of aggregation: hinged, fast -tight euro beam
Admiration width: 2.6 m
Number of rows: 3
Depth of processing: 3 - 12 cm
Power tractor=: from 40 k. C
= Type of working body: hinged - spring working body "General" of own development
Number of working bodies: 12
Step of placement of working bodies: uniform, staggered, with steps 220mm (660mm in one row!)
= The thickness of the profile pipe of the frame: 5mm
Rrablin: single -row, from 15 two -stream springs with a diameter of 8mm, made of hardened steel 70
= TRABULINA TRAVEL: 1 cm in height, every 4 degrees at the angle of attack.
= The cat: single, diameter 320mm of one of 4 species (tube straight, pipe spiral, from the strip straight, spiral from the strip)
= Weight: 680 kg

All elements cultivators passes the mandatory processing, namely: cleaning, grinding. Prior to painting, primer and drying in the painting chamber are carried out! In the end, all the details are covered with enamel and dried in a drying chamber to acquire the necessary hardness paint.

= * Prices specify - can change - according to currency exchange rate, metal prices, fuel and payment terms

Individual approach to each client is ready to discuss and find compromise solutions as a result of negotiations and meetings.

= Call! We will be glad to help!

We look forward to fruitful cooperation! Activity
