Cultivator of continuous processing mounted 3-row General KNS 3.0, Zaporizhia region.

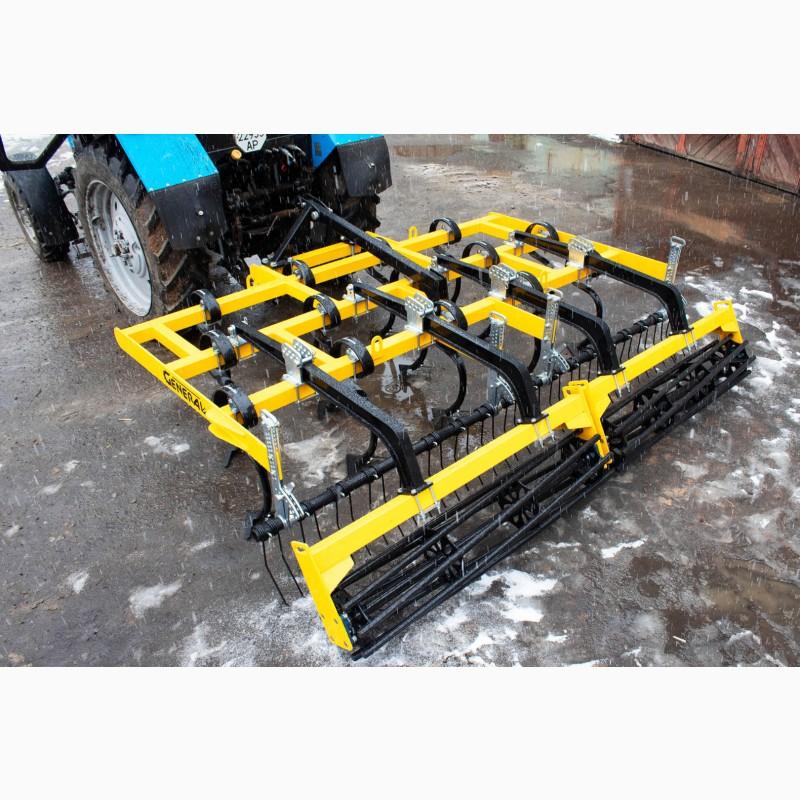

3-row mounted continuous cultivator General KNS 3.0

The General KNS mounted cultivator is universal and is used for pre-sowing cultivation and continuous steam processing. This cultivator ensures complete preparation of the soil for sowing in just one pass through the field!

General KNS combines the simultaneous performance of 4 operations:

cleaning steam from weeds with trimming and combing their roots
loosening the soil without turning the layer and combing plant residues
breaking up lumps of earth and leveling the soil with a rake with spring teeth
compaction and formation of the ideal structure of the "sole" and the surface layer of the soil with rolling rollers to prevent moisture evaporation.

This cultivator is equipped with "General" spring working bodies, with adjustment of the angle of attack, height, lateral inclination of the paw and spring load. This type of working bodies is recommended for use both on normal and problematic wet soil. Thanks to the protective spring mechanism, the working body "General" easily adapts to different types of soil and field conditions, protects the paw and the rack from possible damage!

The working bodies on this model are arranged evenly in a checkerboard pattern in three rows. This arrangement of the racks provides an impeccable effect of loosening and mixing the soil, while not being clogged with weeds and plant remains!
The range of application of General KNS:

Pre-sowing cultivation and preparation of the seed bed
Continuous treatment and cleaning of vapors from weeds.
Alignment of plowing

Technical characteristics General

Aggregation method: Hinged, with a quick-disconnect Euro beam.
Gripping width: 3.0 m
Number of rows: 3
Processing depth: 3 - 12 cm
Tractor power: from 60 hp
Type of working body: articulated - spring working body "General" of our own development.
Number of working bodies: 14
The step of placement of working bodies: uniform, in checkerboard order, with a step of 220 mm (660 mm in one row! )
The thickness of the profile pipe of the frame: 5mm.
Rake: single-row, with 15 two-turn springs with a diameter of 8 mm, made of hardened steel 70
The rake adjustment step: 1 cm in height, every 4 degrees in the angle of attack.
Roller: double, with a diameter of 320 mm, one of 4 types (pipe straight, pipe spiral, strip straight, strip spiral)
Weight: 820 kg
(//tractor-service.com)
All elements of thecultivator undergo mandatory processing, namely: cleaning, grinding. Before painting, primer and drying are carried out in the painting chamber! At the end, all the parts are covered with enamel and dried in a drying chamber for the paint to acquire the necessary hardness.

Comparison of the main characteristics of working bodies.
Advantages of the "General" working body:

– a wide range of settings for the position of the paw relative to the frame of the cultivator;

– a compression spring is used, which makes it impossible to break it (as in tension springs);

– one spring is used, which simplifies the setting of the rigidity of the working body;

– The possibility of adjusting the stiffness of the working body by means of spring tension.

Basic adjustment modes:

1. Rigid (the springs are maximally compressed, for high-quality preparation of the sowing sole (bed)).

2. Precautionary (same as rigid, but weaker, to prevent damage to the rack and leg in problem areas with tall weeds, stones, roots, etc.).

3. Light (the springs are weakened enough that they "play" and vibrate during operation, they are better self-cleaning and mix the outer layers of the soil. The same effect as in the working organ of the bilola).

- has a mechanism for selecting the gap on the hinge joint, which is lubricated, which allows you to operate the unit longer without buying consumables;

– Common high stand and foot 270mmcultivators KPS4;

are used - high racks reduce clogging of the entire cultivator;

– All adjustments are convenient and made with two keys.
