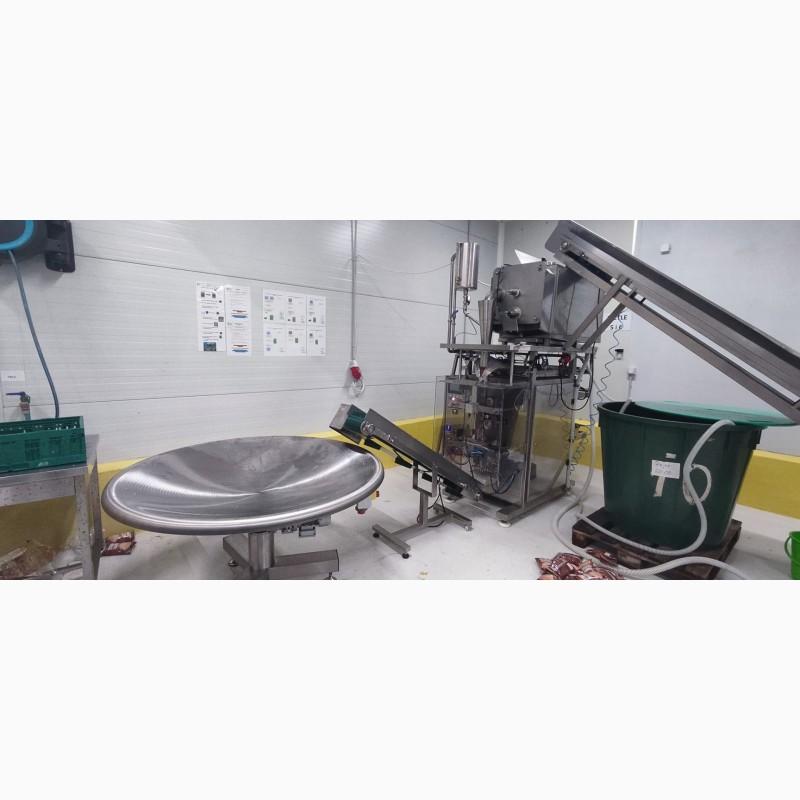

Sauerkraut packaging line in bags of 0.5-1.0 kg, Kyiv

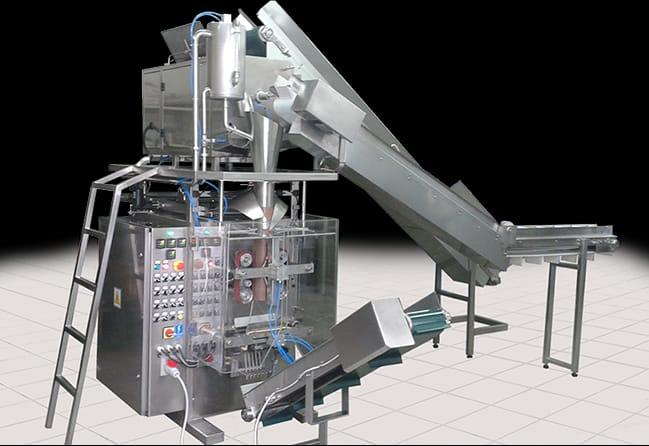

The machine is designed for packingsauerkraut and saltedcucumbers in polypropylene/polyethylene and other bags two-layer film. The machine itself makes bags from tape, fills them with the product, closes them and lowers them onto the conveyor.

TECHNICAL DATA:
Dimensions:
height - 2230 mm
length – 3500 mm
width – 2500 mm
Own weight: 850 kg
Power requirement: 2.5 kW
Supply voltage: 230/400 V; 50 Hz
Productivity: from 800 to 2000 packages per hour(//tractor-service.com)
Bag size: maximum width. 300 mm
Adjustable length: up to 300 mm.
The size of a portion of raw materials: from 0.3 to 1 kg.
Liquid portion size: from 0.1 to 0.7 l.
Air pressure: 0.7 MPa
Air consumption: 15 m3/h
Additional equipment:
dater, supply conveyor,
reception conveyor,
adapted for packing
in an inert gas atmosphere.
Required staff: 2 people
