Equipment for the production of concrete pipes Ø300 mm - Ø1400 mm, Kyiv

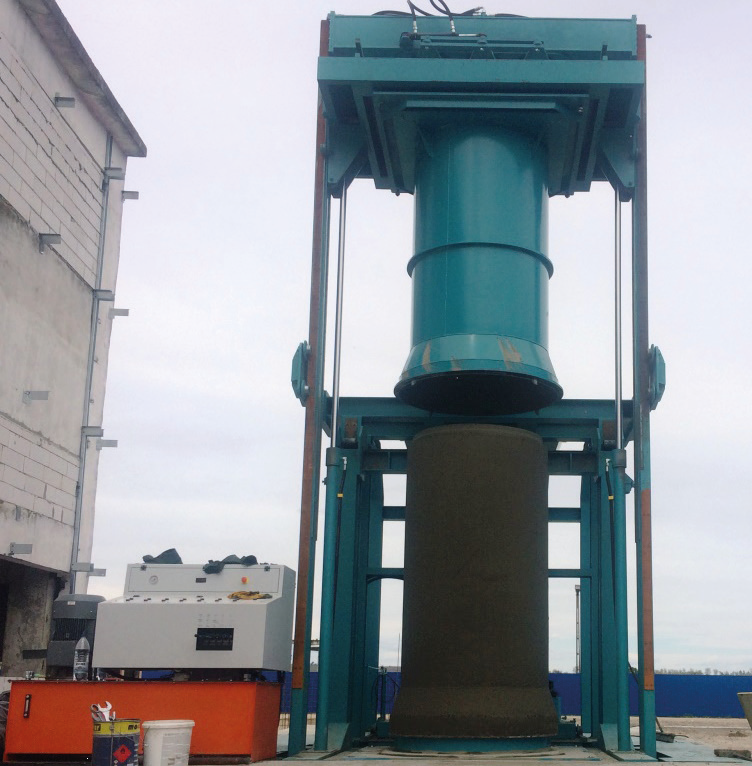

Machine for the production of concrete pipes Ø300 mm - Ø1400 mm.
The new generation concrete pipe production machine KMS 1400 produces concrete pipes with a diameter of 300 mm to 1400 mm according to the requirements of our customers, a length from a minimum of 1000 mm to a maximum of 2500 mm according to the specification of Iller Bank TSE 821.

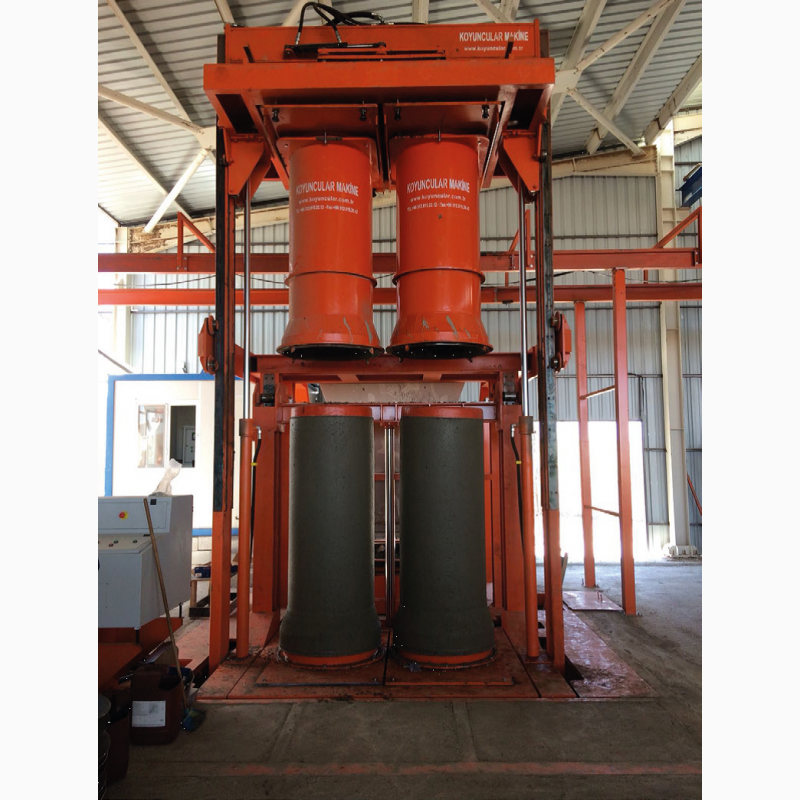

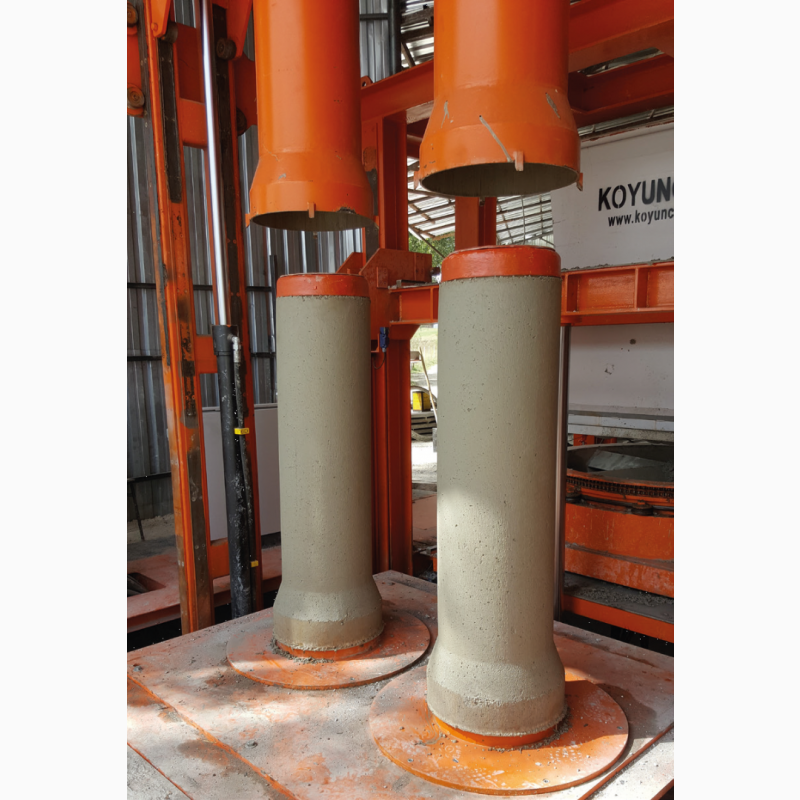

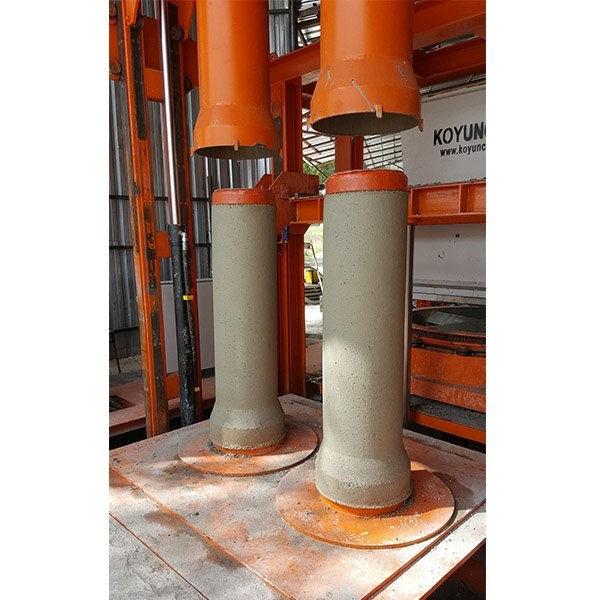

It is manufactured in such a way as to produce 2 or 3 units of products in one pressing cycle according to the customer's requirements.

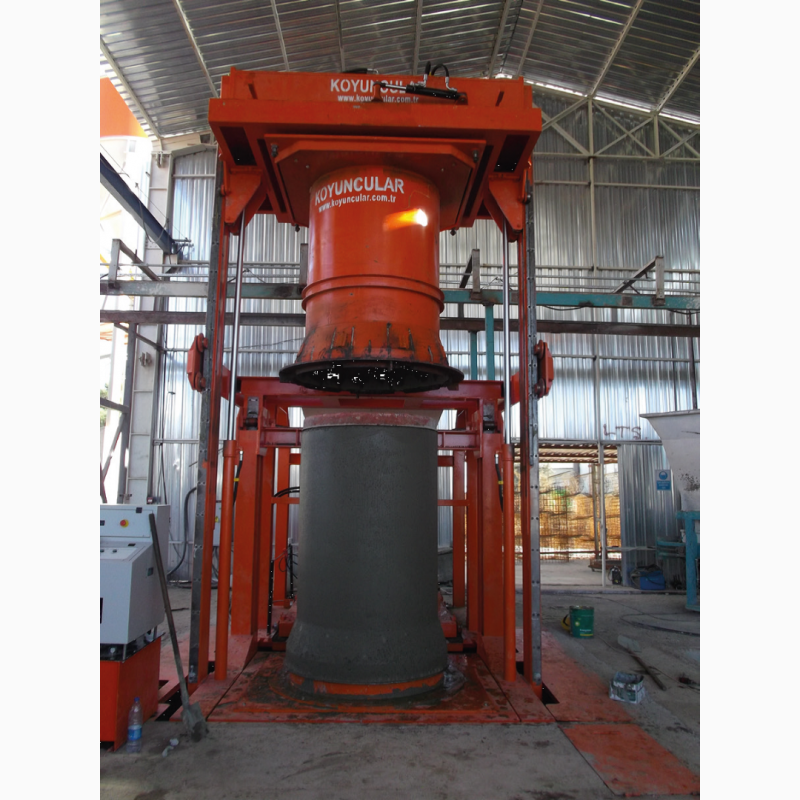

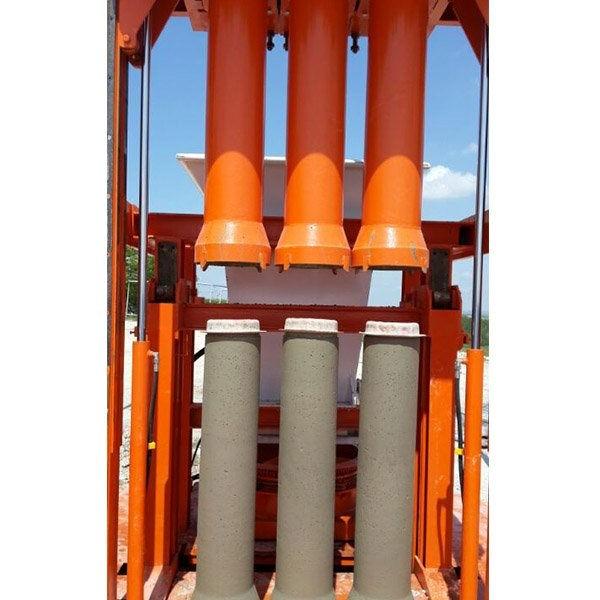

Three molds for concrete pipes Ø300 mm, two molds for concrete pipes Ø400, Ø500, Ø600 mm and one mold for other diameters can be connected at the same time.

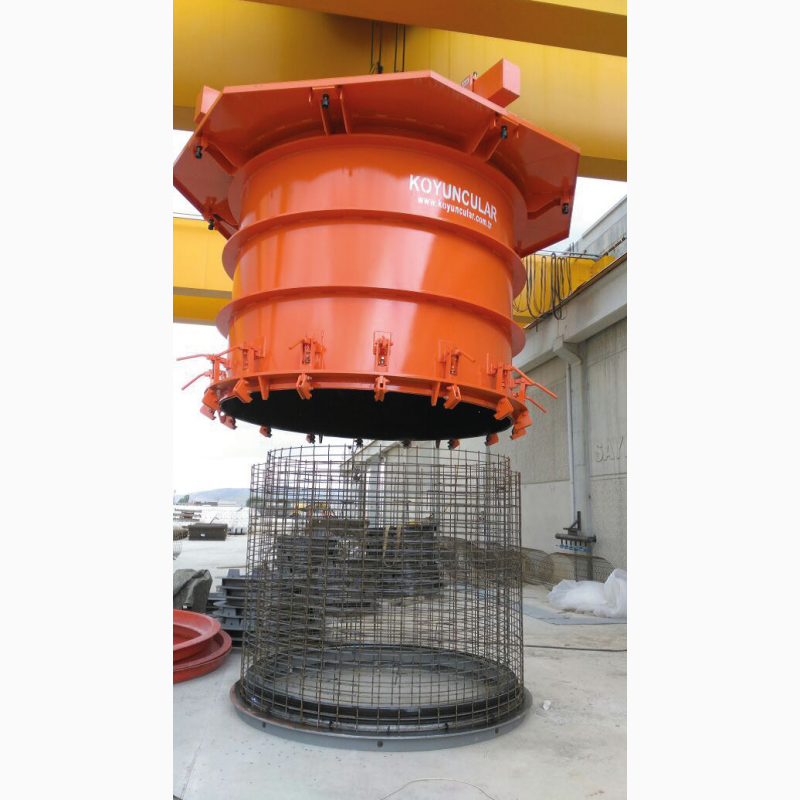

Forms and pallets with built-in gasket or hinged section gasket are manufactured according to requirements from Ø300 mm to Ø1400 mm.
Provides the possibility of serial production from Ø300 mm to Ø1400 mm without a tap, produces twice as much as a system with a tap.
Vibration system of the machine with a closed liquid oil circulation system. The automaticlubricating system is activated during machine operation.

The vibrator uses SKF or FAG bearings, resistant to high cycles and heat.

pallets; It is produced on CNC lathes according to the dimensions and stamping method.
Manufactured concrete pipes are transported to the drying area by a forklift.
Our machines, manufactured according to the KMS quality and trust policy, have been working without problems for many years.

Technical characteristics

Control system - Manual/semi-automatic
Production capacity Ø300 mm-1400 mm
Vibrator motor power 30 kW 3000 rpm x 3 pcs.
Power of the hydraulic motor 30 kW 1500 rpm
Distribution cart for solution Engine power 7.5 kW 50 rpm
Rotation motor power 5.5 kW 55 rpm(//tractor-service.com)
Vibrator lubrication system 0.75 kW 1500 rpm x3 pcs.
Hydraulic pressure 200 bar
Ladle for solution 1.5 m3

Pipe machine Height size (mm) Average product weight (kg)
Ø300 2000 325
Ø400 2000 520
Ø500 2000 750
Ø600 2000 1050
Ø800 2000 1350
Ø1000 2000 2250
Ø1200 2000 3350
Ø1400 2000 4250

Production volume Height mm Production per shift 8 hours
in one print
Ø300 3 pcs. 1000/2500 350 pieces
Ø400 2 pcs. 1000/2500 200 pieces
Ø500 2 pcs. 1000/2500 200 pieces
Ø600 2 pcs. 1000/2500 200 pieces
Ø800 1 pc. 1000/2500 60 pieces
Ø1000 1 pc. 1000/2500 50 pieces
Ø1200 1 pc. 1000/2500 40 pieces
