Equipment for the production of concrete pipes Ø800 mm - Ø3000 mm, Kyiv

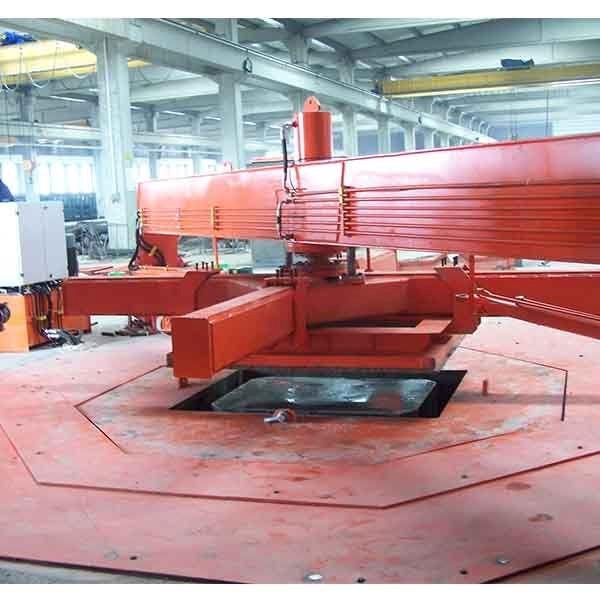

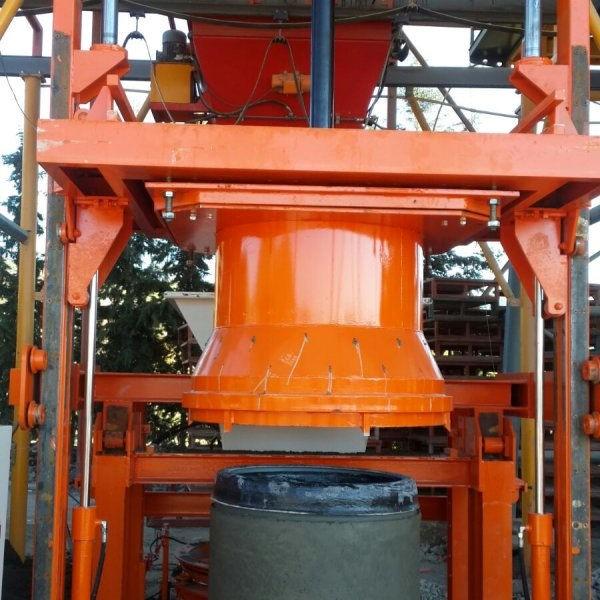

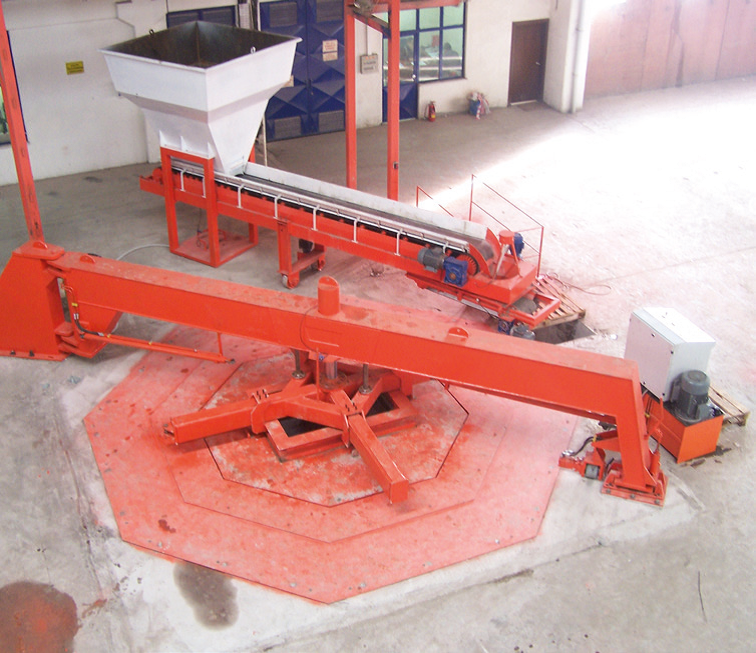

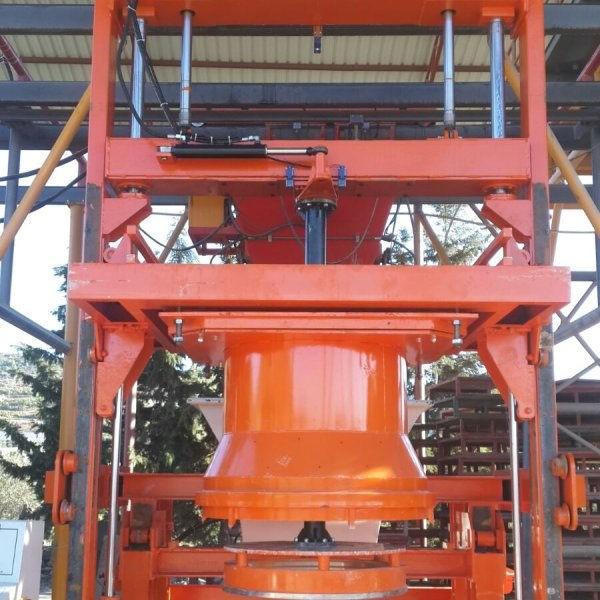

Machine for making concrete pipes Ø800 mm - Ø3000 mm, length 2500 mm.

Machines for the production of concrete pipes KMS 3000;

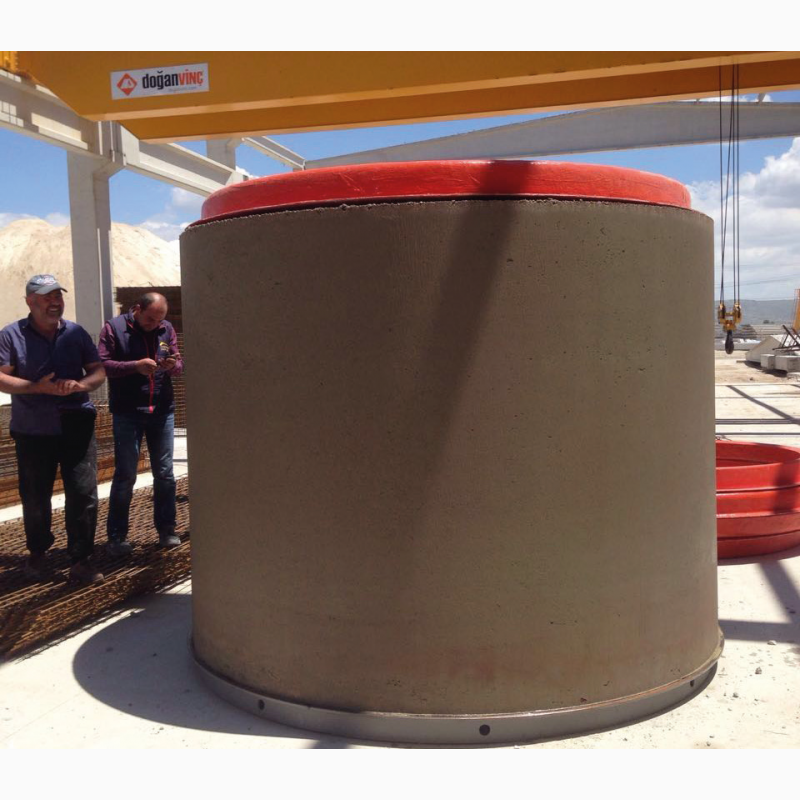

It produces concrete pipes with a diameter from Ø800 mm to Ø3000 mm with a length from 2000 mm and a Maximum Length of 2500 mm according to the Iller Bank TSE 821 specification.

Production is carried out by combining one mold of all diameters.

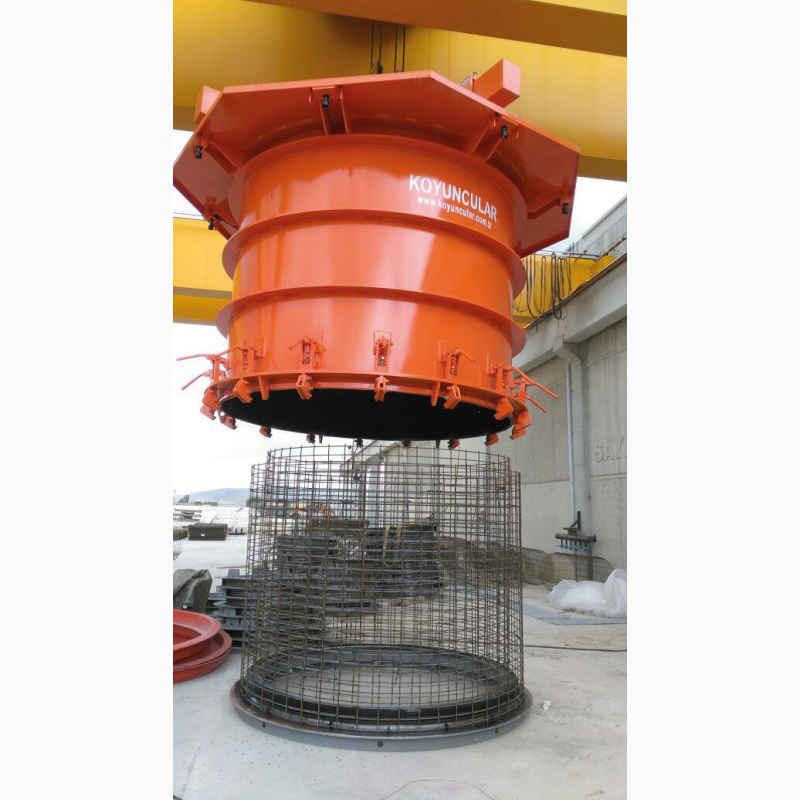

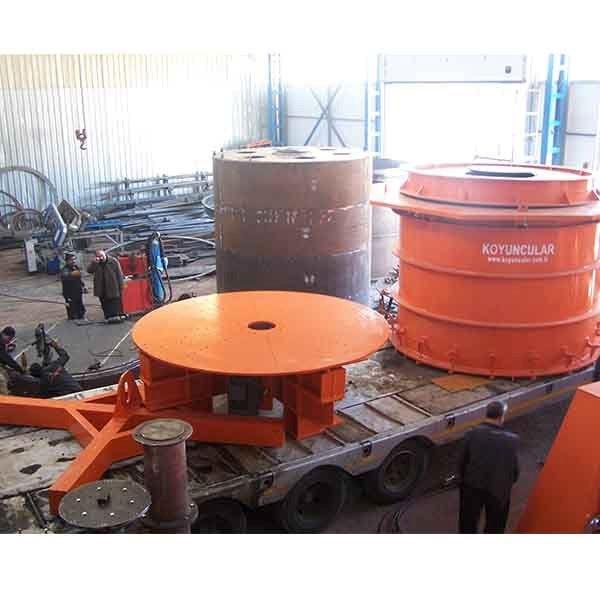

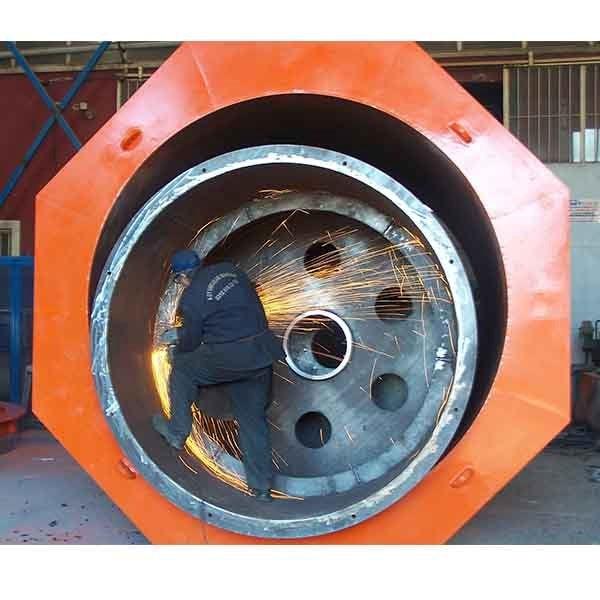

Forms and pallets with built-in gasket or hinged section gasket are manufactured according to requirements from Ø800 mm to Ø3000 mm.

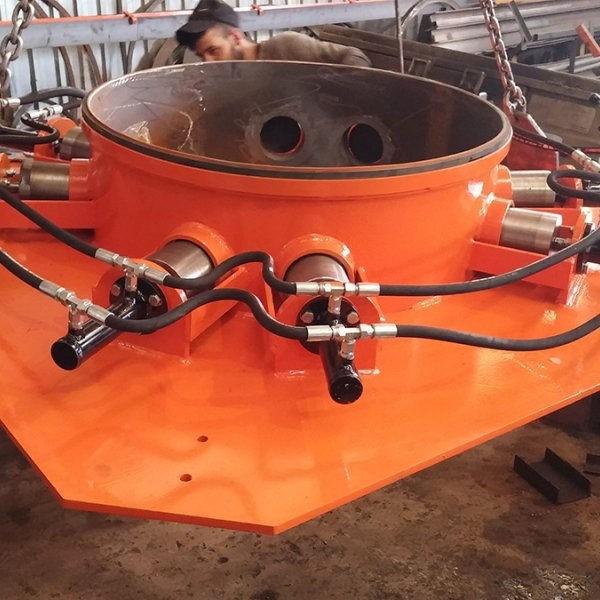

Vibration system of the machine with a closed liquid oil circulation system. The automaticlubrication system is activated during machine operation.

The vibrator uses SKF or FAG bearings, resistant to high cycles and heat.

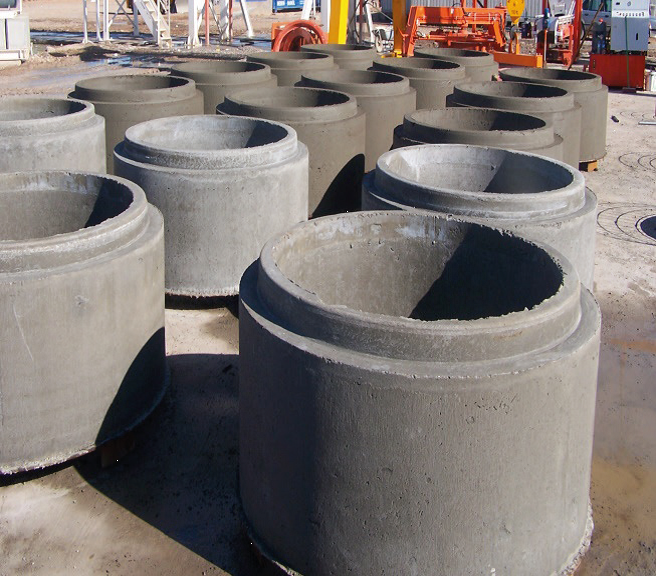

Manufactured concrete pipes are transported to the drying area using a crane system.
Our machine was designed to produce concrete pipes in the fastest and most convenient way.
Our machines, manufactured according to the KMS quality and trust policy, have been working without problems for many years.

Technical characteristics

Management system - Manual/semi-automatic(//tractor-service.com)
Production capacity Ø300mm-1400mm
Vibrator motor power 30 kW 3000 rpm x 3 pcs.
Power of the hydraulic motor 30 kW 1500 rpm

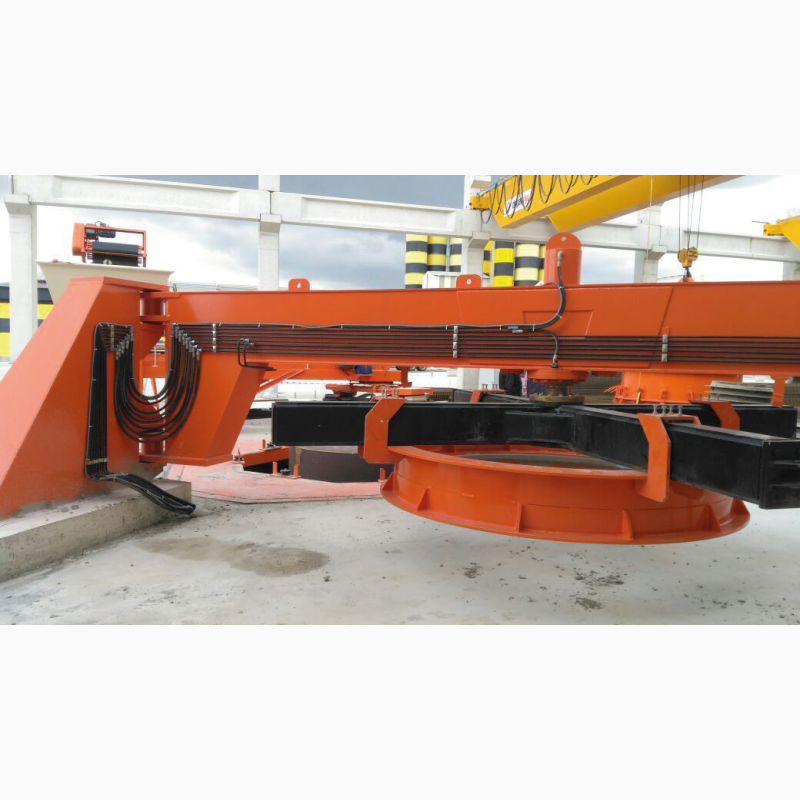

Distribution cart for solution Engine power 7.5 kW 50 rpm
Rotation motor power 5.5 kW 55 rpm
Vibrator lubrication system 0.75 kW 1500 rpm x3 pcs.
Hydraulic pressure 200 bar
Ladle for mortar 1.5 m3

Production volume Height mm Production per shift 8 hours
in one print.

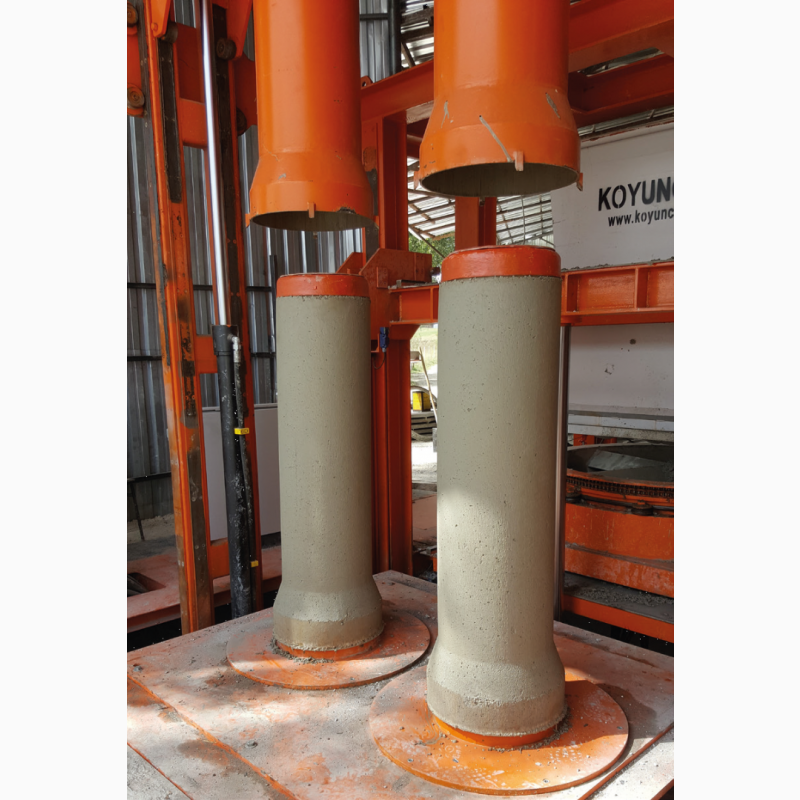

Ø300 3 pcs. 1000/2500 350 pieces
Ø400 2 pcs. 1000/2500 200 pieces
Ø500 2 pcs. 1000/2500 200 pieces
Ø600 2 pcs. 1000/2500 200 pieces
Ø800 1 pc. 1000/2500 60 pieces
Ø1000 1 pc. 1000/2500 50 pieces
Ø1200 1 pc. 1000/2500 40 pieces
