Row drill

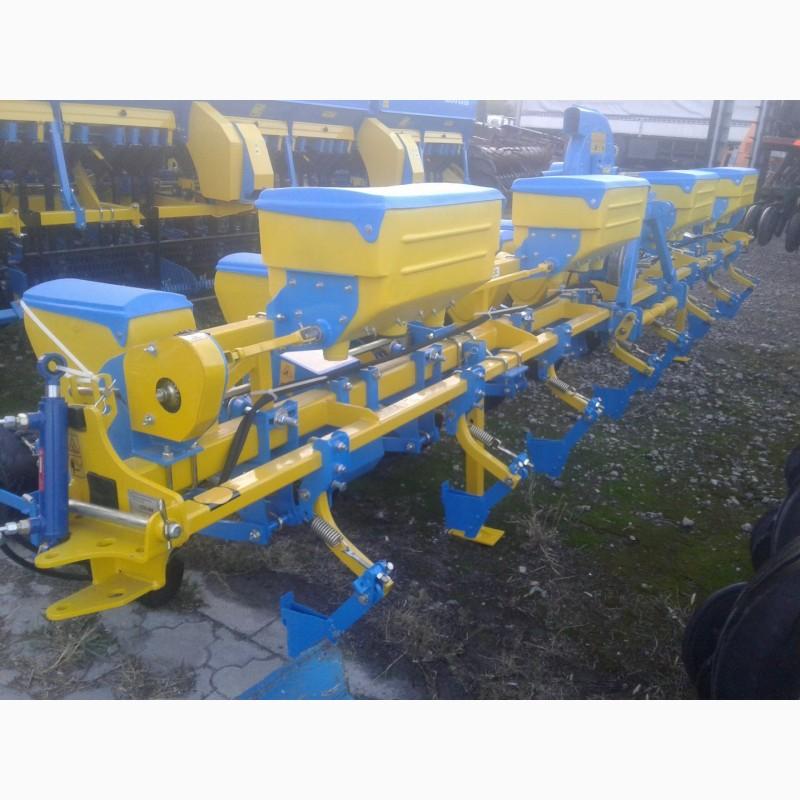

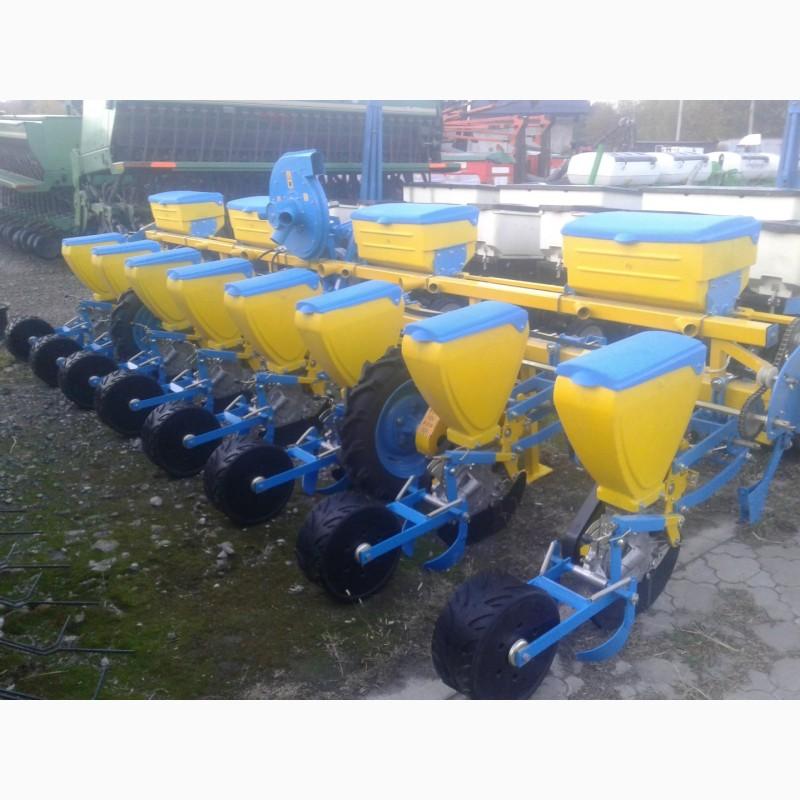

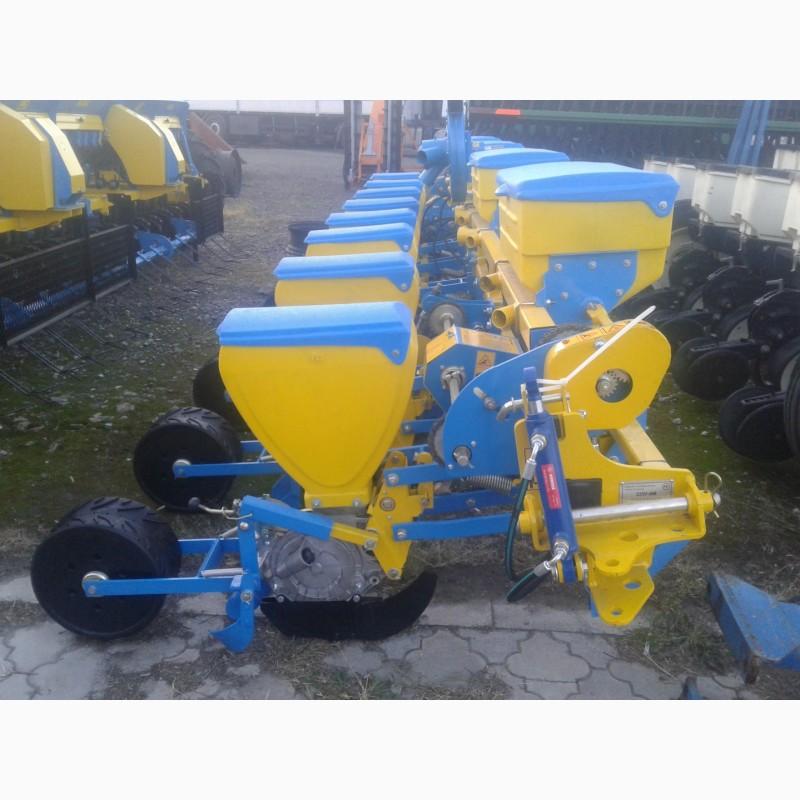

precision seeding SPU-8 (UPS-8) Remsintez production
Advantages of the SPU-8 precision seeder (UPS-8):
Two-circuit section drive
Intersectional arrangement of support and drive wheels allows you to avoid sifting and to maintain the necessary depth of wrapping of seeds and fertilizers.
Improved fertilizer application mechanism
Hydrogenated markers
Fat bunkers are made of rotoforming polyethylene of increased strength.
Reinforced frame
Powder coating
Universal
pneumatic planters SPU-6 (UPS-6) and SPU-8 UPS-8) are designed for accurate sowing of calibrated seeds of corn, sunflower, castor, sorghum, soybeans, as well as seeds of forage beans, beans, lupine with simultaneous, separate application of granular mineral fertilizers.
Intersectional arrangement of support and drive wheels allows you to maintain the required depth of seed wrapping more precisely.
It is also possible to sow uncalibrated seeds, but in this case the accuracy will directly depend on the difference in size and the degree of damage to the seed material.
Precise sowing machines provide sowing to the final density, in addition to the use of manual labor when forming the necessary interval between plants.
Pneumatic sowing devices of precision sowing seeders reduce the process of crushing seeds by 10 times compared to mechanical ones.
The planters have a strong hydrofed marker with a larger disc that has the ability to change the angle of attack for a highly visible trail.
To order, the planters are equipped with a transport device, which allows you to move it on general purpose roads without the use of additional vehicles.
The planter is equipped with a centrifugal fan driven by the tractor PTO (540 rpm).
There is a flap on the fan to regulate the discharge of air flow.
The fan is equipped with an overrunning clutch that protects the belt transmission from increased wear.
The beam of the planter frame acts as a receiver, which ensures the same discharge in all seeders and eliminates the pulsation of the air flow.
The sowing section of the SPU planter is equipped with discs for sowing corn and sunflower seeds. The parallelogram overhang of the section ensures the best copying of the relief of the field. As a result of modernization, the sowing section was equipped with a 2-circuit drive of a new design. Reliable protection of the drive ensures work in fields littered with plant remains.
The amount of seed that enters the seeding chamber from the hopper is regulated by a damper.
(//tractor-service.com)
The presence of a viewing window allows you to visually control the quality of the sowing device during the adjustment process.
An unloading hatch is provided for quick removal of seeds from the chamber of the seeding device.
The fat seeding system through the fat coulters provides the possibility of applying mineral fertilizers to the sides of the row with the required amount of displacement, which excludes the harmful effect of fats on the seeds.
The rolling of the soil in the sown rows improves the contact between the seeds and the moist soil at the bottom of the furrows, provides capillary rise of moisture and creates favorable conditions for earlier and friendly seed germination. Gas exchange is carried out thanks to open zones.
Technical characteristics of planters SPU-6 (UPS-6) SPU-8 (UPS-8)
The unit type is mounted.
Gripping width m 4.2 5.6
Number of rows pcs. 6 8
Width between rows cm 45.70
Working speed km/h 2.5-9
Productivity ha/h 1.1-3.8 1.4-5.1
Capacity of bunkers (total)
- for seeds l 150200
- for fertilizers l 192
Sowing rate
- for seeds pc/p.m. 2-42
- for fertilizers kg/ha 50-250
Seed wrapping depth mm 40-120
overall dimensions
- in working position mm 1700x4900x1600 1700x6250x1430
- in transport position mm 5450x2300x2360 6800x2300x3010
Weight kg 1074 1278
It is aggregated with tractors hp. from 65 hp
