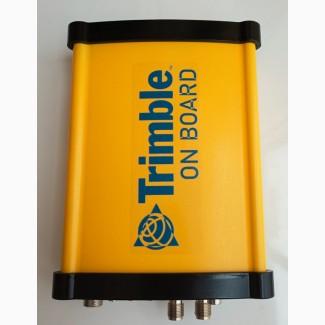

Base RTK station Trimble G970, Kharkiv region.

With the development of GNSS technologies, the work of equipment in the field is increasingly connected with the use ofprecision farming systems( autopilot, electric thrusters, hydraulic autopilots, combined systems, electric thrusters with the use of control elements intended for full autopilot).

For the operation of the above systems, correction RTK reference base GNSS stations are used, which allow to ensure an accuracy of 1.5-2 cm for autopilot systems of agricultural machinery.

Having your own base station, you will be able to ensure the operation of the entire fleet of equipment with high accuracy and repeatability of work (running lines) from year to year.

advantages of own base station:
repeatability from year to year (introduction of liquidfertilizer, yield maps, planning of agricultural works).
absence of costs for paid signals
payback 1 season, when connecting at least 3 units of equipment.
the possibility of simultaneous connection of up to 100 units of equipment
work with all manufacturers (Trimble, Fj Dynamics, Topcon, leica, Hexagon, Raven, John deere, SunNav, Novatel)
the possibility of selling signals to neighboring farms
regulation and full control connected (control of accounting of the work of each machine, control of disconnection connected, control connected of those sold to neighboring farms, accounting of working hours of machines)(//tractor-service.com)
the possibility of transmitting corrections to the Internet (the technique will "pick up" the correction via GSM communication, the possibility of issuing corrections by radio (if there is no mobile connection in the household).
radius of action 50 km. from the installation point
the possibility of combining several RTK base stations into a network (if clusters of households are scattered over more than 50 km.)
Brief technical characteristics of the basic RTK station Trimble G970:
220 channels of tracking satellite signals
types of received signals: GPS: L1 C/A, L2E, L2C, L5; GLONASS: L1 C/A, L1 P, L2 C/A (GLONASS M Only), L2 P SBAS: L1 C/A, L5 Galileo: L1 BOC, E5A, E5B, E5AltBOC; BeiDou: B1, B2; QZSS: L1 C/A, L1 SAIF, L2C, SupportOmniSTAR VBS/XP/G2/HP
outgoing corrections: CMR, CMR+, SCMRX, RTCM 2.1, 2.2, 2.3, 3.0 , 3.18
navigation messages: ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA,VTG, GST, PJT,PJK, BPQ, GLL, GRS, GBSandBinary: TrimbleGSOF .
technology Trimble Maxwell 6 Custom Survey GNSS Technology
up to 10 units of equipment are simultaneously connected to 1 port.
extended user web interface for managing the station
The company "GEOPRAKTIK" as an official dealer of Trimble, manufactures assembly, adjustment, development of GNSS receivers for

- GPS: Simultaneous L1 C/A, L2E, L2C, L5
