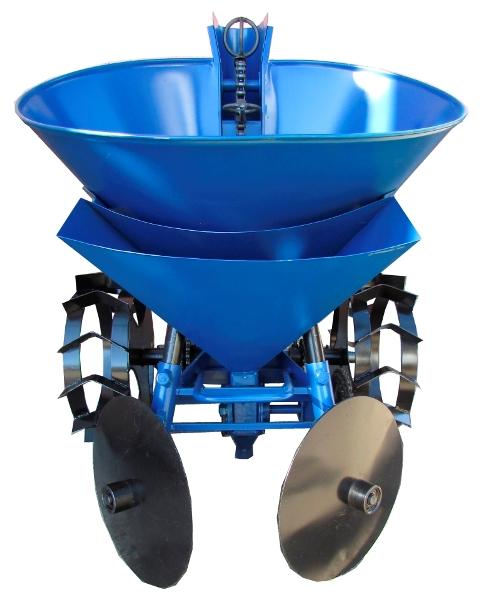

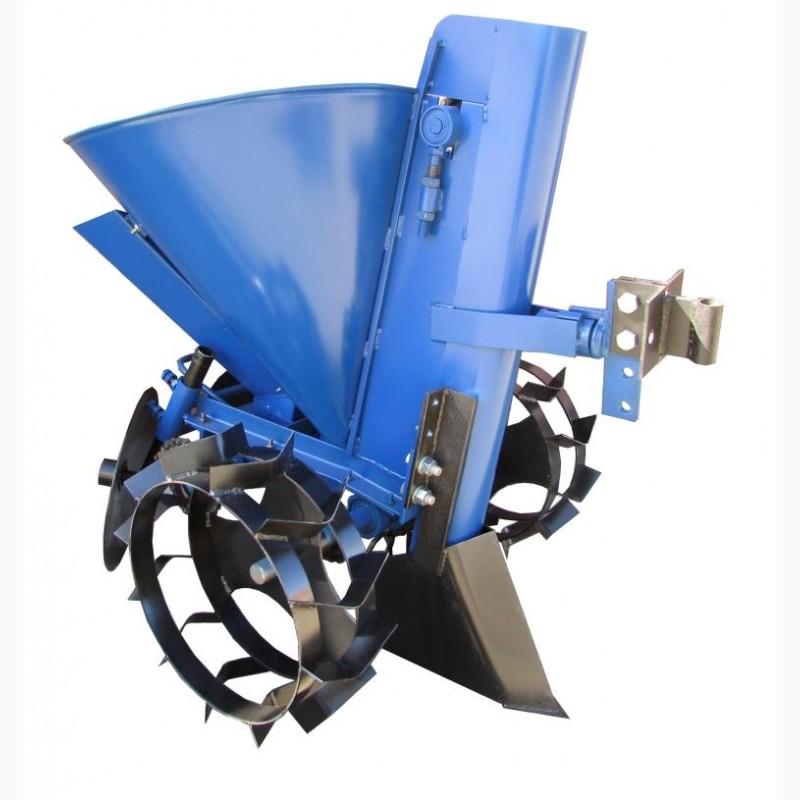

Chain potato planter + fertilizer hopper (k8), Kyiv

One-row chain potato planter with a hopper for applying mineral fertilizers is designed for mechanized planting of potatoes and simultaneous application fertilizers It is aggregated with motoblocks and mototractors with a power of 6 hp or more.

The principle of operation of a potato planter with a fertilizer hopper

The drives of the fertilizer planting and dosing mechanism are actuated from the support wheels through the drive shaft. Revolutions from the drive shaft are transmitted to the landing mechanism and dosing device through a chain transmission, which is equipped with a roller tensioner. The tensioner is necessary to prevent sagging of the chain after adjusting the planting step and the frequency of fertilizer application. Adjustment is made by moving the chain to additional sprockets.

The design of the main components of a potato planter for a walk-behind tractor

Supportwheels and drive shaft:

wheels-soil hooks have a diameter of 340 mm;
rim thickness – 3 mm;
width – 110 mm;
the diameter of the drive shaft is 25 mm.
Planting mechanism and dosing device

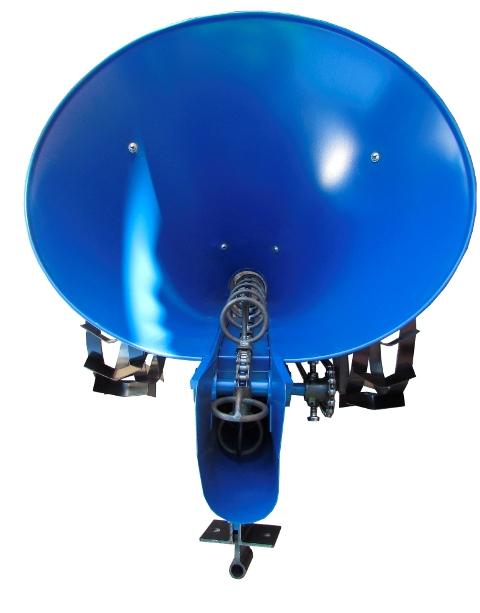

The main unit of the potato planter is a hopper with a shaft in which the planting mechanism is located. In the mine there are supporting sprockets with a chain and baskets. The landing mechanism uses a drive chain PR-12.7-18.2 ("Ant", 98 chain links), on which 12 baskets with a diameter of 50 mm are installed.

The hopper for potatoes with a capacity of 20 liters is made of sheet steel with a thickness of 151

0,8 мм. На задню частину бункера встановлюється дозуючий пристрій барабанного типу для дозованого внесення мінеральних добрив.

The keel-shaped opener of the potato planter is made of sheet steel with a thickness of 2 mm. The keel of the coulter is reinforced, the thickness is 3 mm.

Adjustabledisc mounders with a diameter of 275 mm and a thickness of 2 mm are installed on a frame made of a steel corner of 32 × 32 × 3 mm to wrap the planted potatoes and create a soil ridge. Smooth and reliable rotation of each disk is provided by a pair of 202 bearings.(//tractor-service.com)

Towing unit

Depending on the model of the traction unit, the potato planter can be equipped with various attachments. The hitch is attached to a special bracket using bolted connections. To ensure stable operation of the potato planter on uneven ground, the bracket is fixed on a movable sleeve.

Standard equipment:

potato planter with a hopper for applying mineral fertilizers;
towing device;
drive wheels - 2 pcs.;
disk wrappers - 2 pcs.;
keel-shaped opener.
Technical characteristics:

overall dimensions - 900 × 700 × 950 mm;
the capacity of the potato hopper is 20 l;
the capacity of the fertilizer hopper is 4 l;
type of fertilizers: dry, granular;
step of planting potatoes and applying fertilizers - Z1-26 ≈ 250 mm, Z2-36 ≈ 200 mm;
planting depth - 50-100 mm;
recommended potato diameter ≈ 40 mm;
track width – 550, 650 mm;
the weight of the device is 36 kg.
