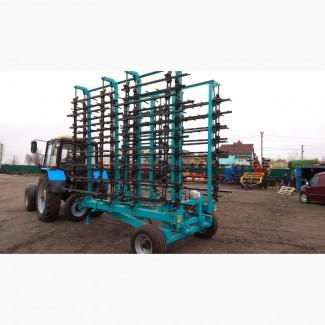

Harrow Zubova Shleifova BZSh - 5, 5 _ 7 _ 9 _ 12 _ 14 _ 18 _ 21m, Dnepropetrovsk region.

The main purpose of the unit is:
• creation of a uniform loose layer of soil;
• reduction of moisture evaporation;
• partial destruction of weed seedlings;
• destruction of the soil crust;
• laying of mineral fertilizers;
• processing of winter grain crops at high speeds;
• closure ofsoil herbicides;
• harrowing of winter crops and row crops;
Distinctive features of the tooth trail harrow (heavy) BZSh consist in the following structural and technological solutions, which allow to significantly increase reliability and working life, as well as improve maintainability.
The tooth is made of a square of 65G steel with appropriate heat treatment. The use of a square reserved on two sides for a sharp wedge ensures the operation of the cutting edge of the square and the wedge work surface with the effect of self-sharpening. A sharp wedge easily penetrates the soil.
When using the teeth of a thick-walled pipe with a square cross-section as a supporting beam, it became possible to orient a square hole with a cross-section of 16x16 in one wall of the pipe, which, in turn, avoids the dangerous transition of the tooth in the area of the square thread.
The links that assemble the load-bearing beams into a train are made of strong 30G2R corrugated sheet steel, used for the manufacture ofdisks burins, paws. Also, the frame structure of the link gives the train stability when working without demolishing the track. Fastening the link to the tooth beam with the help of three-dimensional axes significantly increases the maintainability of the unit.
Stops stamped from sheet steel installed on the tooth beam provide the necessary angle of installation of the teeth (23 ° or 45 ° from the vertical).
The scheme of arrangement of the teeth with an interaxial distance of adjacent teeth in the plan of 25 mm and a diagonal of the square of 22 mm provides almost complete overlap of the working area along the entire width of the grip when constructing a loop consisting of ten bearing bars with teeth.
The supporting frame allows you to install additional containers and systems for applying the necessary chemicals and fertilizers.

Technical characteristics of БЗШ – 5.5Н БЗШ-7 БЗШ -9 БЗШ -12 БЗШ -14 БЗШ -18 БЗШ -21
Type Hinged Semi-trailer Semi-trailer Semi-trailer Trailer Trailer Trailer
Working width 5.5 m 7.05 m 8.85 m 12.35 m 14.1 m 17.65 m 21.2 m(//tractor-service.com)
Identitytractor from 80 k/s from 100 k/s from 130 k/s from 180 k/s from 260 k/s from 330 k/s from 400 k/s
Working speed 8-15 km/h
Processing depth mm. 4 - 9
Angle of attack 45°; 67°
Number of rows of teeth/pcs. 16 / 336 16 / 448 16 / 560 16 / 784 16 / 896 16 / 1120 16 / 1344
The overall width of the cable is mm. 1770
The width of the strip of the cable mm. 1585
Parameters of the loop square mm. 40 x 40 - 4
The distance between the slats of the loop is mm. 270
The distance between the teeth on the slat bar is 235 mm.
Cable length mm. 4455
TOTAL and WORKING tooth length mm. 200 / 155
Tooth square mm. 160 x 160
Working tooth width mm. 21
The number of teeth on the bar of the train pcs. 7
Transport width 3.7 2.4 m 2.4 m 2.4 m 4.9 m 4.9 m 4.9 m
Transition to transport position Hydraulic and manual hydraulic hydraulic hydraulic Mechanics (Hydraulic option) Mechanics (Hydraulic option) Mechanics (Hydraulic option)
Frame section 150 x 100-6 mm.
150 x 100-8mm 150 x 100-6mm
150 x 100-8mm 200 x 100-6mm 200 x 100-6mm 200 x 200–8mm 200 x 200–8mm 200 x 200–8mm
Weight kg. 1500 2500 3000 3500 5000 6000 7000
