Ступиця IL50-100/6T-M24.L FKL, 5554513 Lemken, 55510013 Lemken, 4555145 Lemken, Днепропетровская обл.

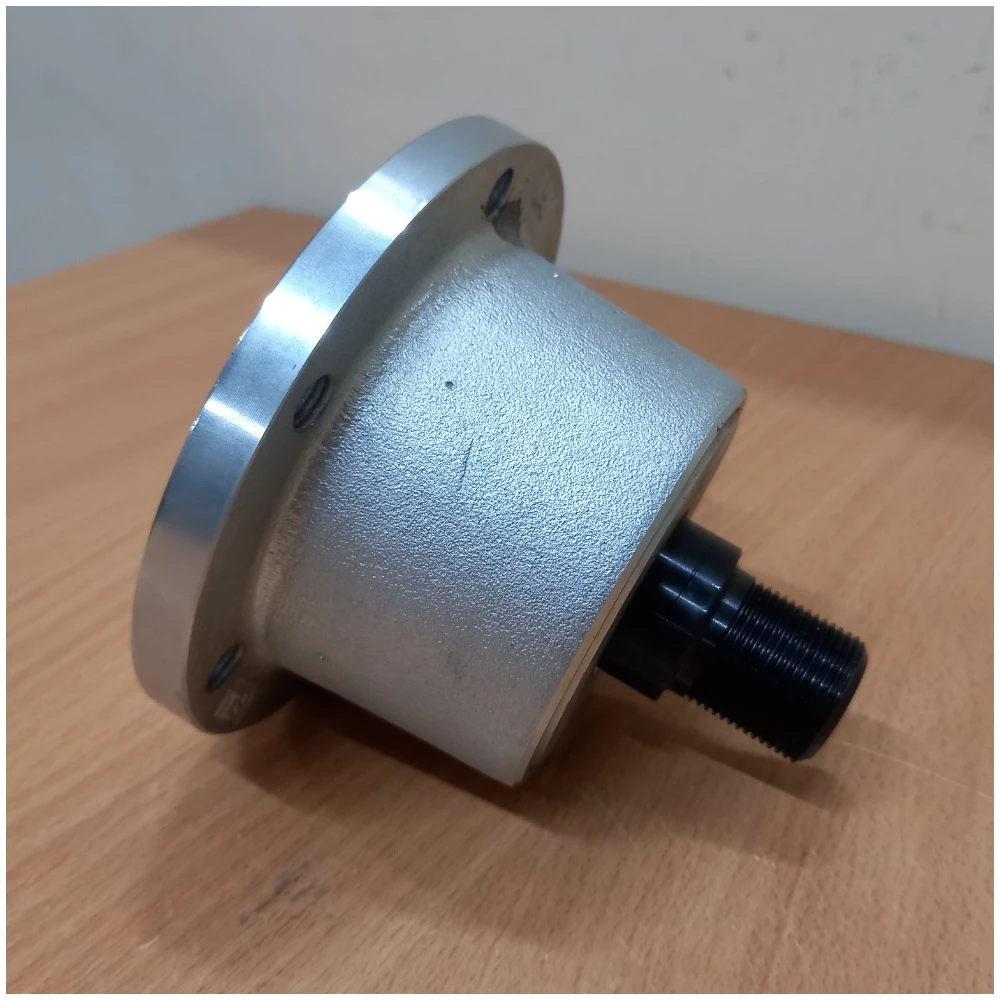

We offer to the supply of the hub cutting assembly IL50-100/6T-M24.L FKL (Serbia).

Field of application -disk harrows Lemken Heliodor.
OEM: 5554513 Lemken, 55510013 Lemken, 4555145 Lemken.(//tractor-service.com)

The inner diameter of the bearing is 30, the total length is 97.5, the total length of the flange is 60, the distance between the centers of the holes is 100, the weight is 2.51, the diameter of the flange is 117, the size of the hole on the flange is 6хМ12х1.25, the length of the threaded part is 22, the dynamic load is 60, the static load is 45.8.

The hub of the IL50-100/6T-M24.L cutting unit has a number of unique competitive advantages: an extremely long service life, high protection against personnel errors and irregular maintenance, high protection against the influence of the external adverse environment, work withdisks of any diameters and manufacturers, does not require additional protection against impacts on obstacles.
Operating conditions and recommendations: ambient temperature from -25 to +50 C, tractor speed 5-15 km/h, disk diameter 300-800 mm, maximum number of disk revolutions up to 400 revolutions/min, rack thickness at the place of installation of the hub at least 18 mm, grease applied for the entire service life.
