Agro Point BDM ARMOR 2.0 FKL cutting unit hub, specially for BDM type disc harrows, Dnepropetrovsk region.

We offer for delivery the hub of the cutting unit Agro Point BDM ARMOR 2.0 FKL (IL50-120/6T-44-R635 FKL).

The hub BDM ARMOR 2.0 FKL with an adapter for a rigid rack has high performance characteristics and was developed by FKL specifically for disc harrows of the BDM type.
Analogs: 18.14.200.SB BDM-Agro, 4X4.01.01.SB BDM-Agro, BD-16.01.00А-01 BDT-Agro, BD-17.04.00В BDT-Agro, BD-17.04.00В-01 BDT-Agro, BDM-MK.45.45.05 MiK, BDM-MK.45.45.103 MiK, PU-17.00.00.00.000 PromAgro, PU-9.00.00.00.000 PromAgro, UR-4.00.00.000.SB Belagromash–Service.

Outer diameter — 145, hole diameter — 17, total length — 131.2, total flange length — 62.2, distance between hole centers — 120, distance between holes — 55, external thread — M27x2, weight — 6.08, dynamic load — 60, static load — 45.8.

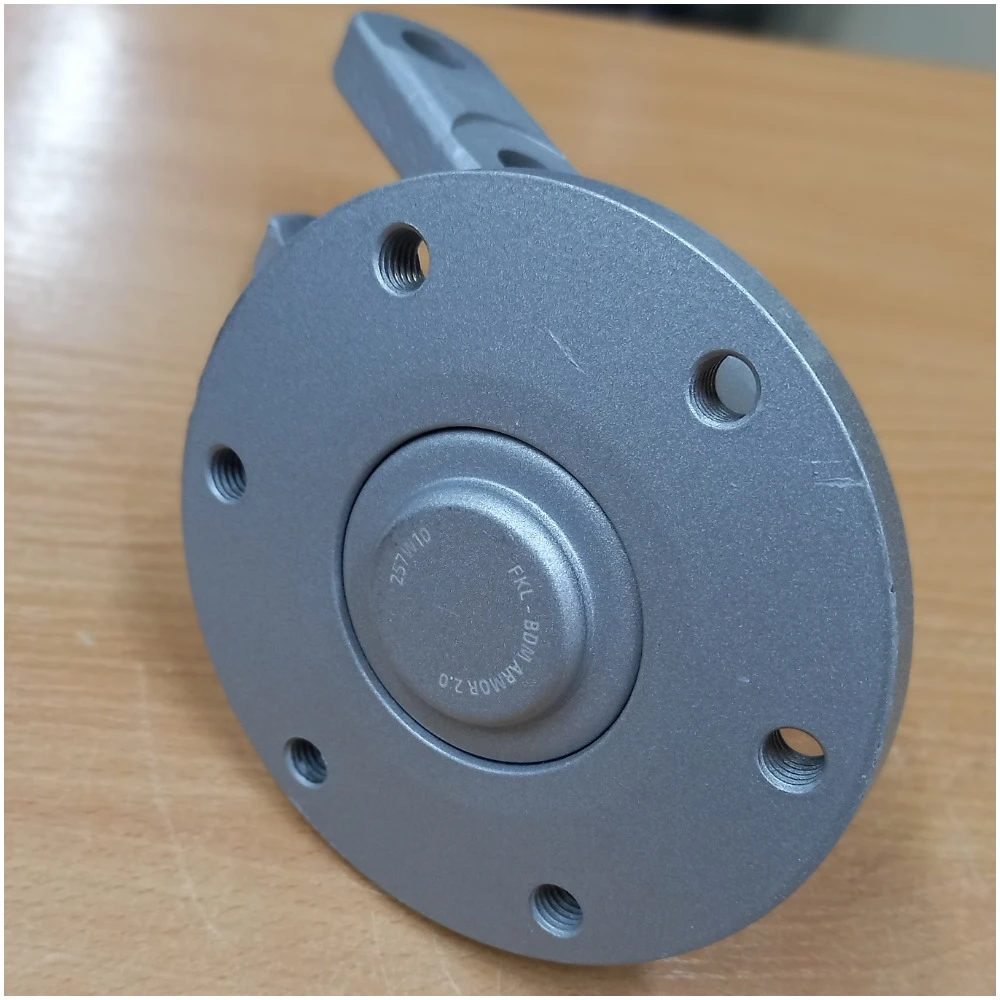

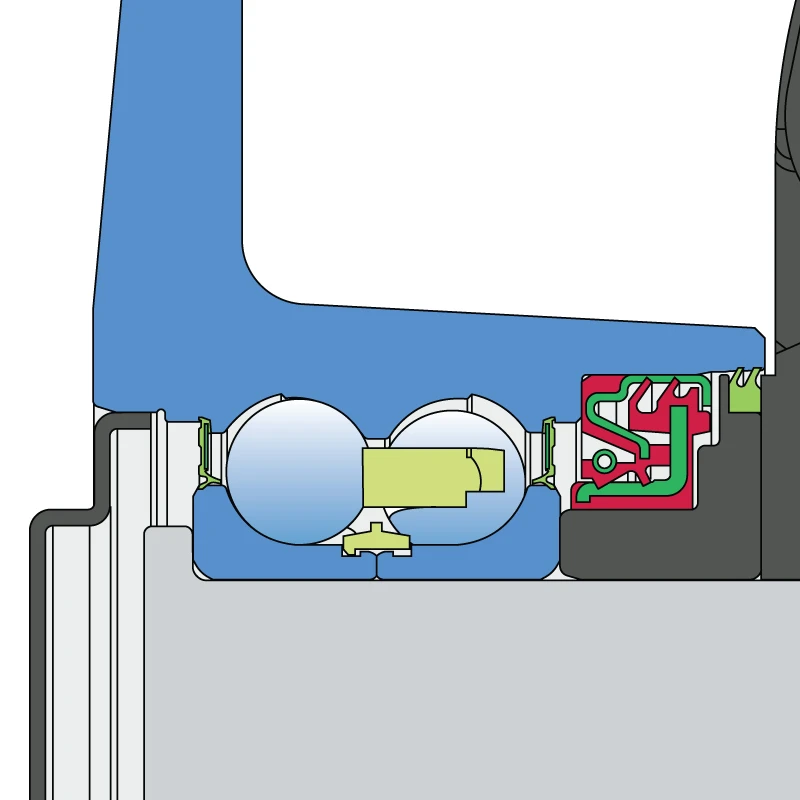

The design, based on a double-row radial thrust ball bearing integrated into the body and a cassette seal, provides the product with a longer service life compared to other hubs with a standard bearing.

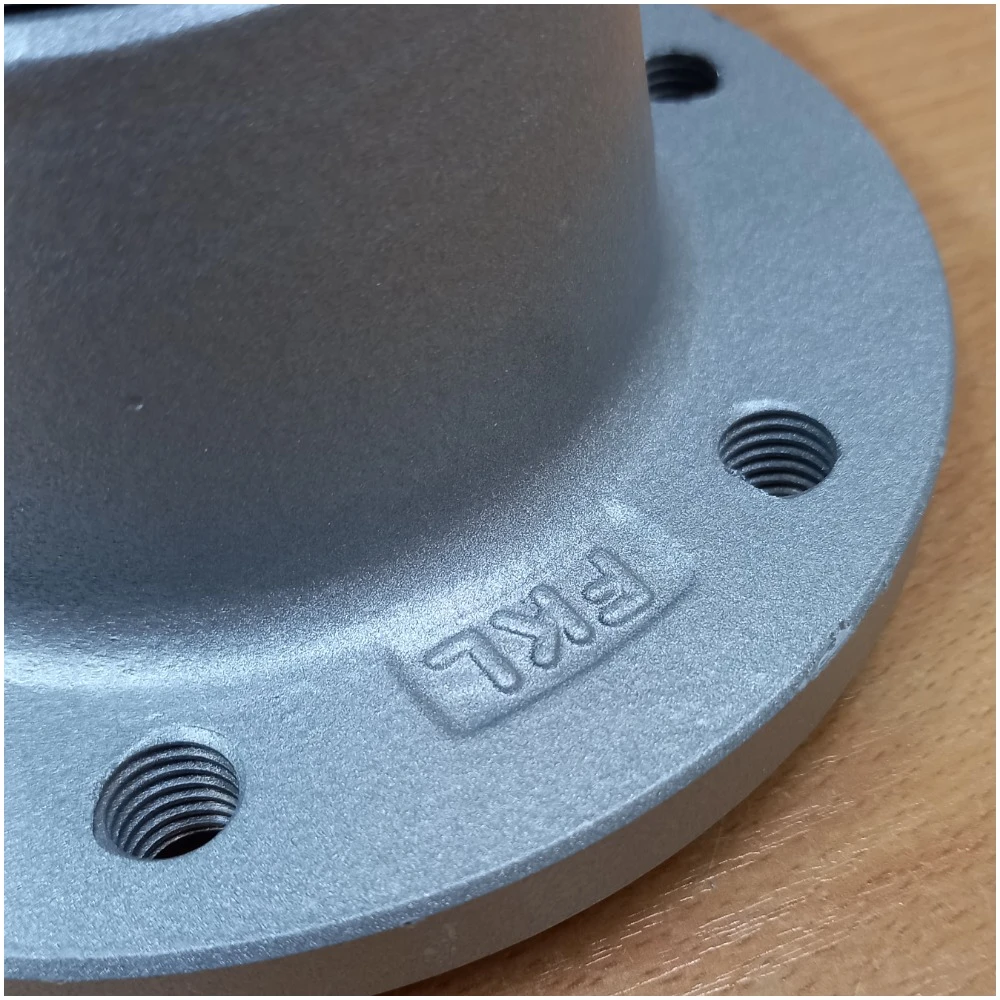

The hub housing is the outer ring of the bearing, which allows you to install balls of a larger diameter, due to which the load capacity of the hub is significantly increased and possible backlashes between the hub and the outer ring of the bearing are eliminated.
Lubricant and seals are designed for the entire life of the bearing.(//tractor-service.com)

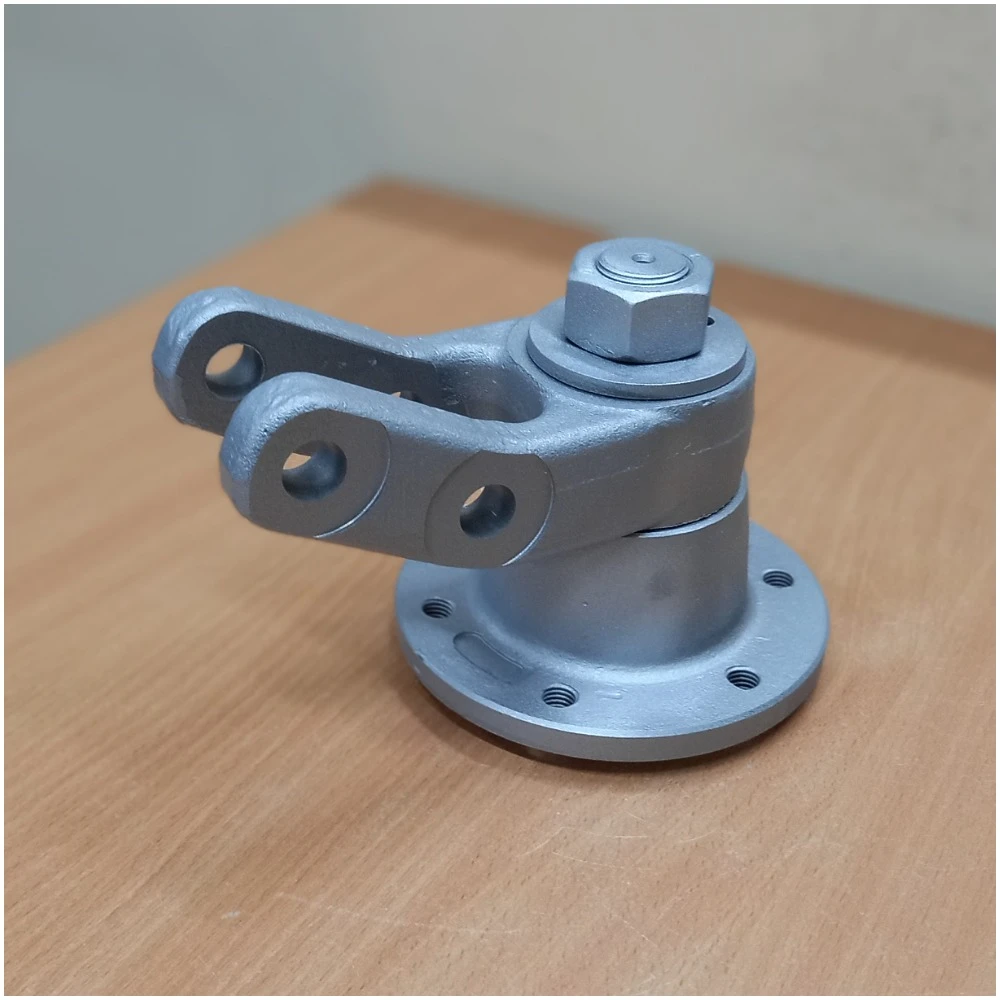

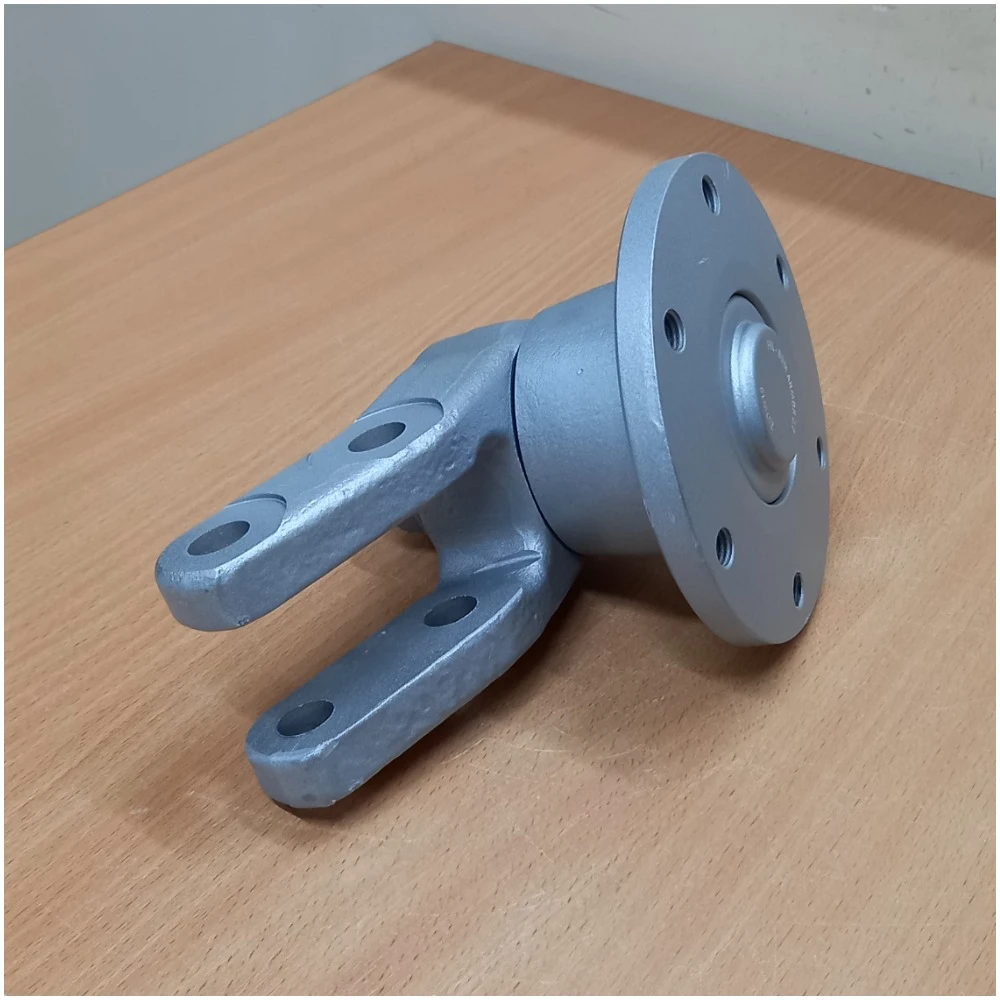

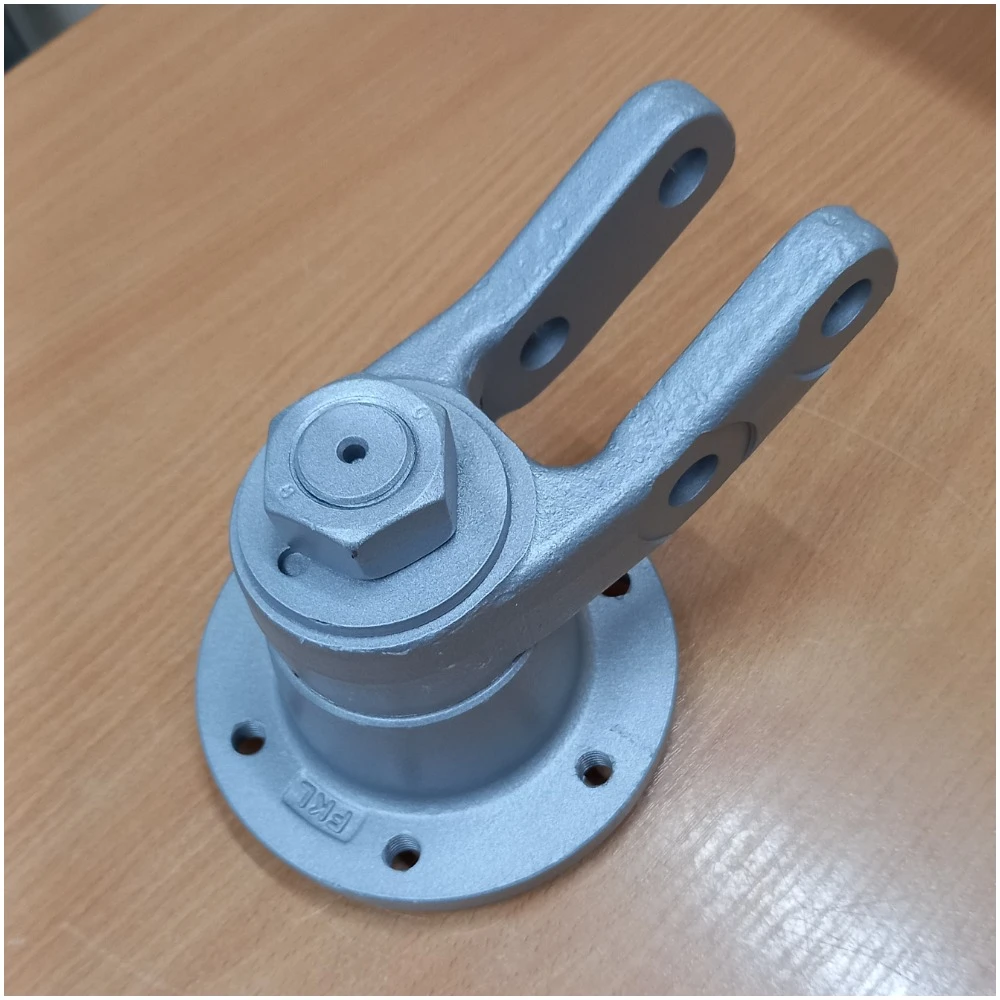

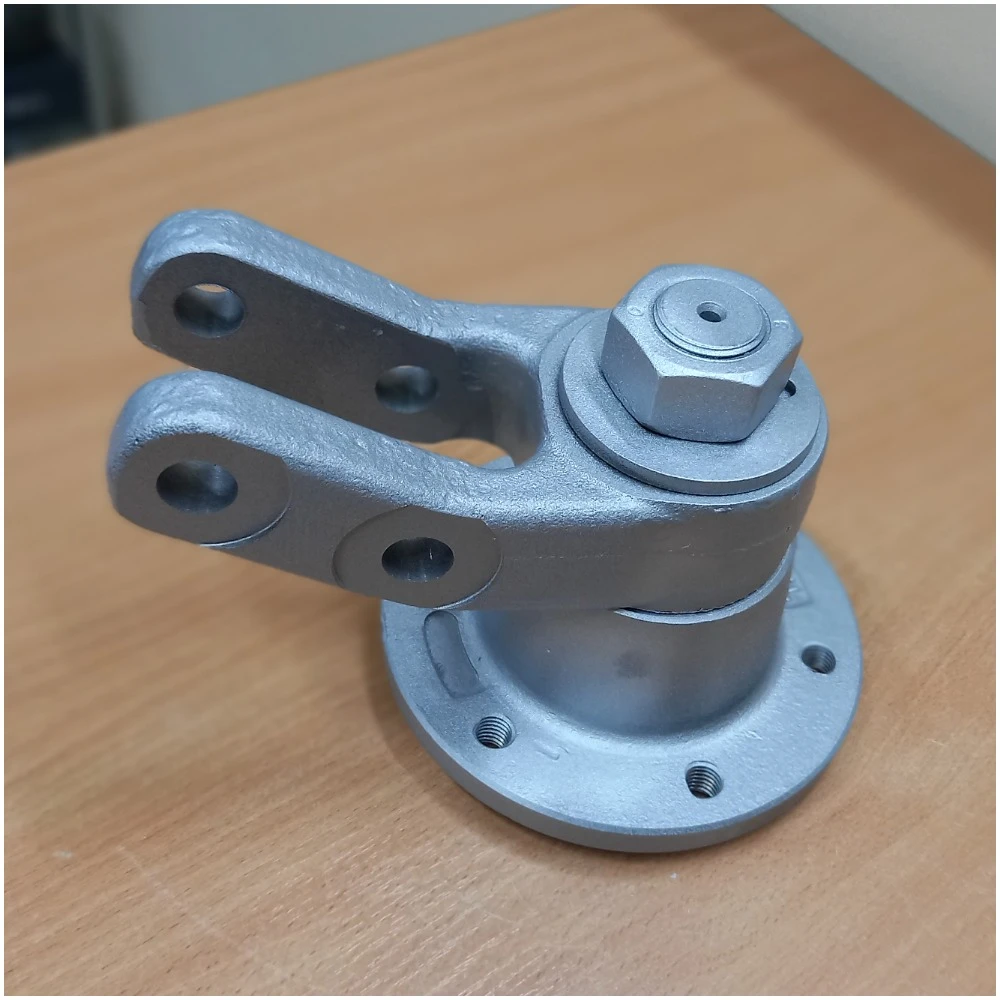

The adapter for attaching the hub to the rack is made of C45 steel forging technology (С.1530)

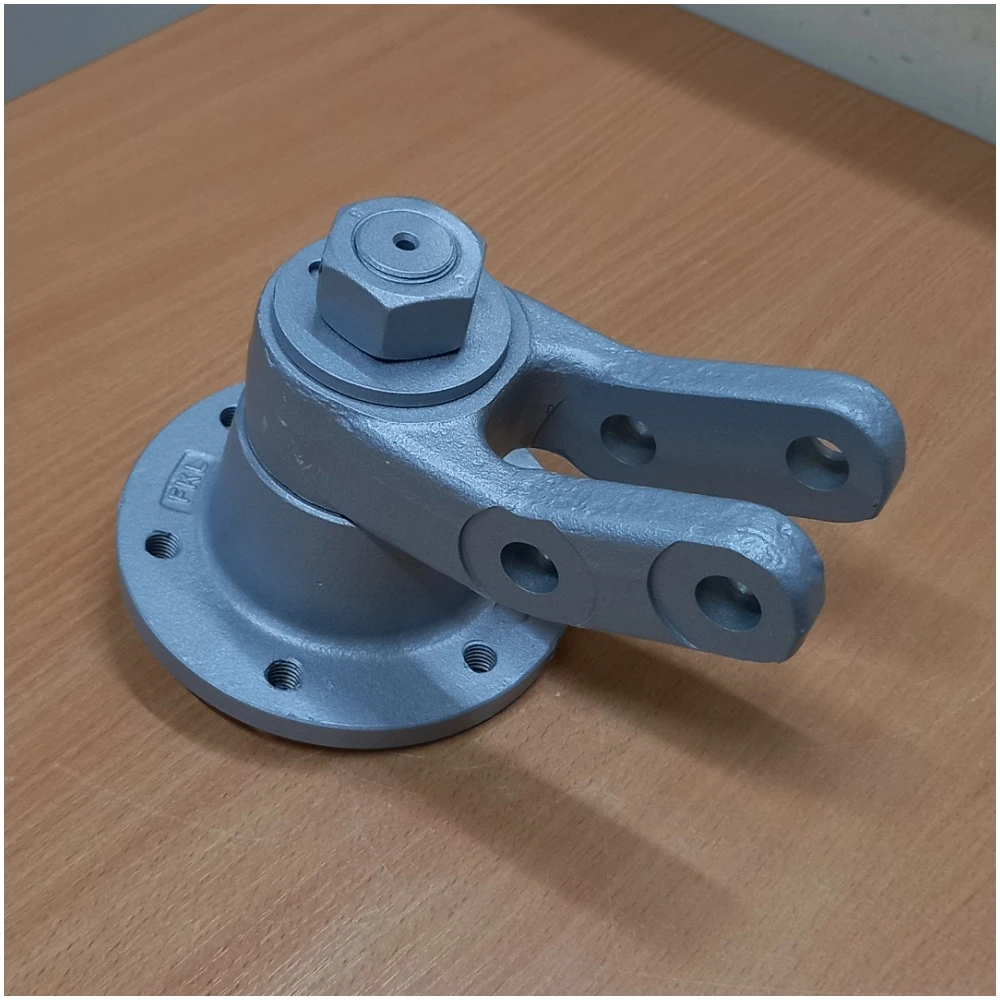

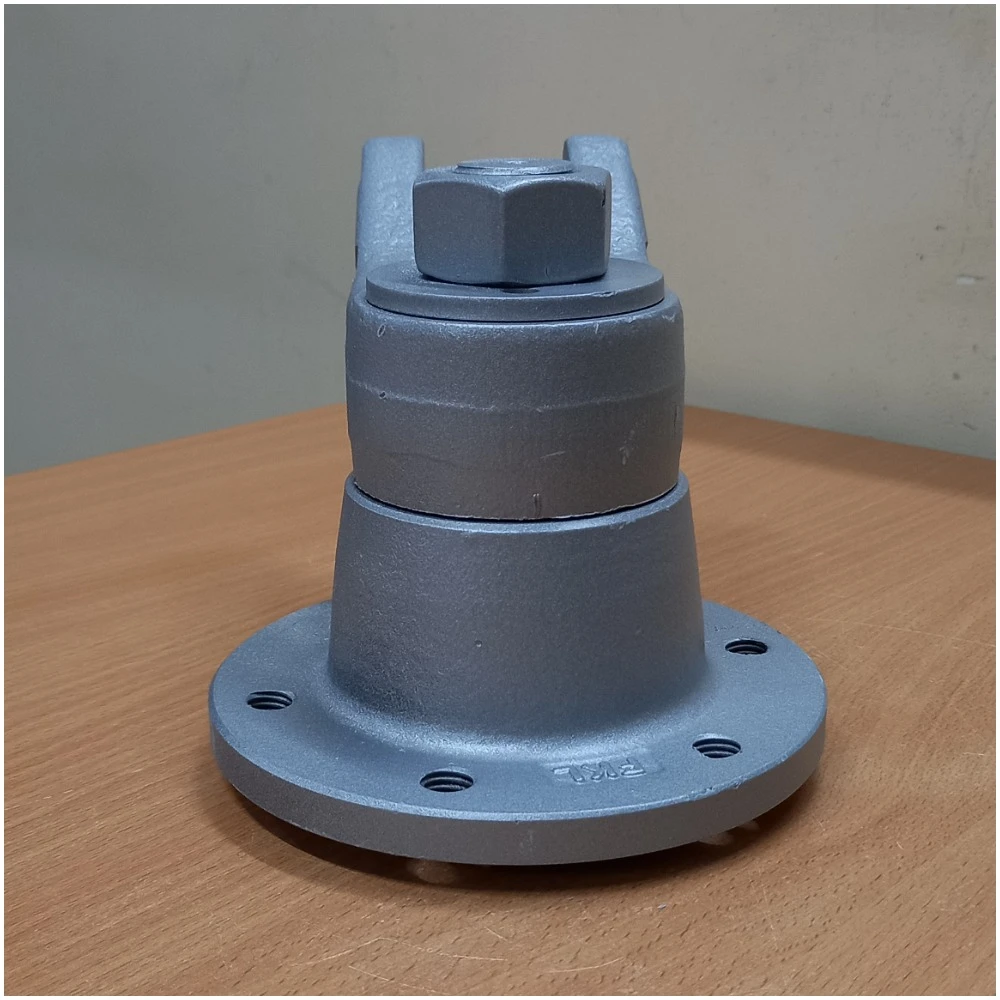

A plate spring washer is used to fix the adapter nut on the hub axis. It has 2 functions: it prevents unscrewing of the threaded connection under the influence of vibration, it provides an axial force of 8 tons, which allows you to select the clearances during the operation of the bearing, thereby allowing the bearing to develop its entire resource by 100%.

The main differences of the new generation of hubs BDM ARMOR 2.O FKL:

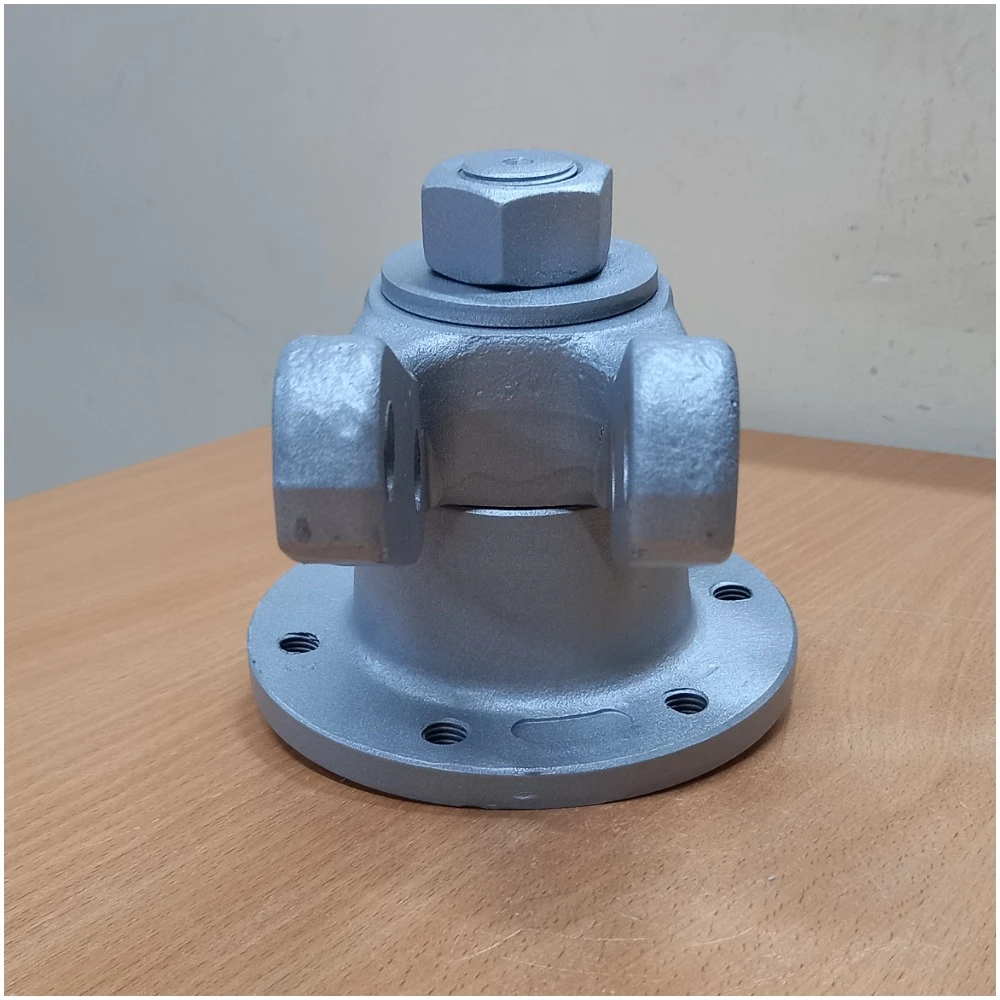

1. The radius of the rounded part (round body) of the adapter has been reduced for better flow of the hub with the ground and to eliminate the effect of pressing the ground into the hub.

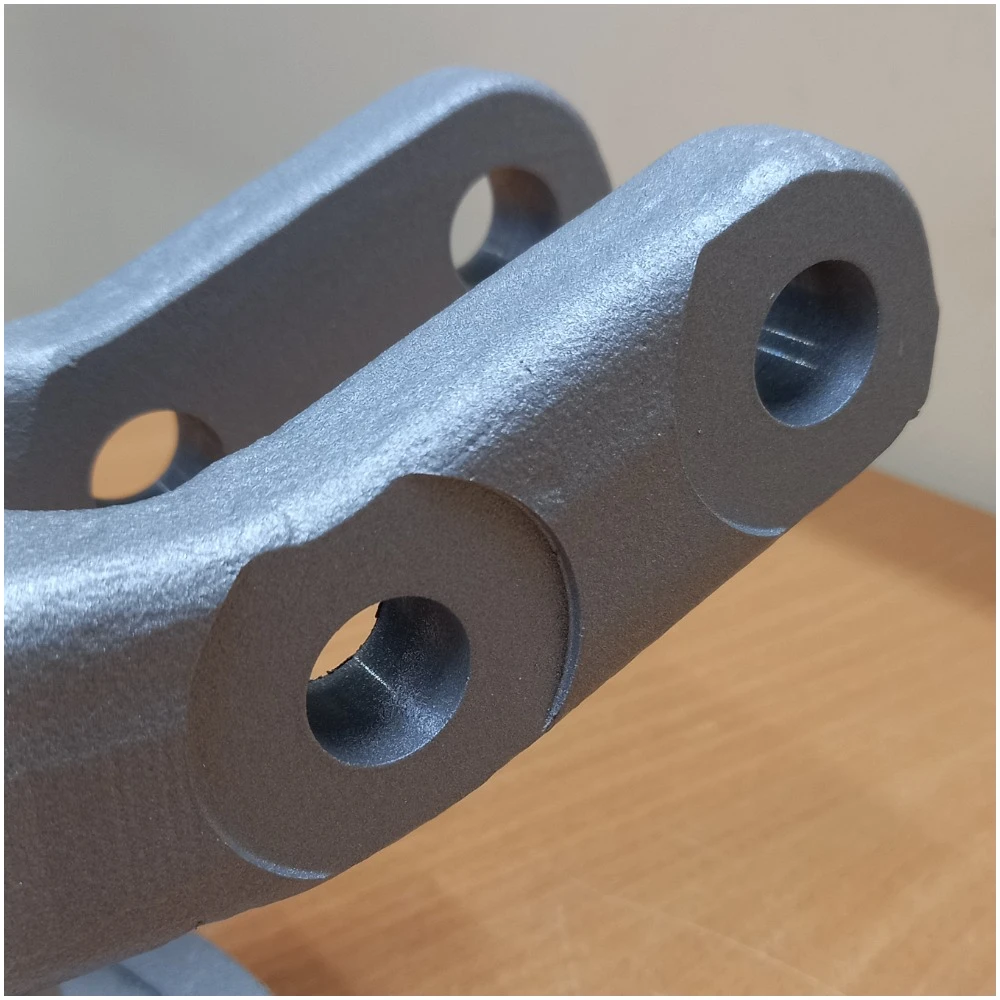

2. The cross-sectional area of two brackets in the places of stress concentration is increased by 41%, in connection with which the allowable bending moment of the brackets is increased by 60%. This allows you to solve the problem of expansion and breakage of the adapter even under heavy load.
3. An additional double-edged seal is installed in front of the cassette seal, which prevents direct contact of soil into the cassette seal and significantly increases the service life of the hub.

JSC "Elvorti" is a business partner of the company "TVK "FKL Ukraine", which equips diskharrows Elvorti Pallada and Elvorti Antares hubs BDM ARMOR 2.0 FKL.
